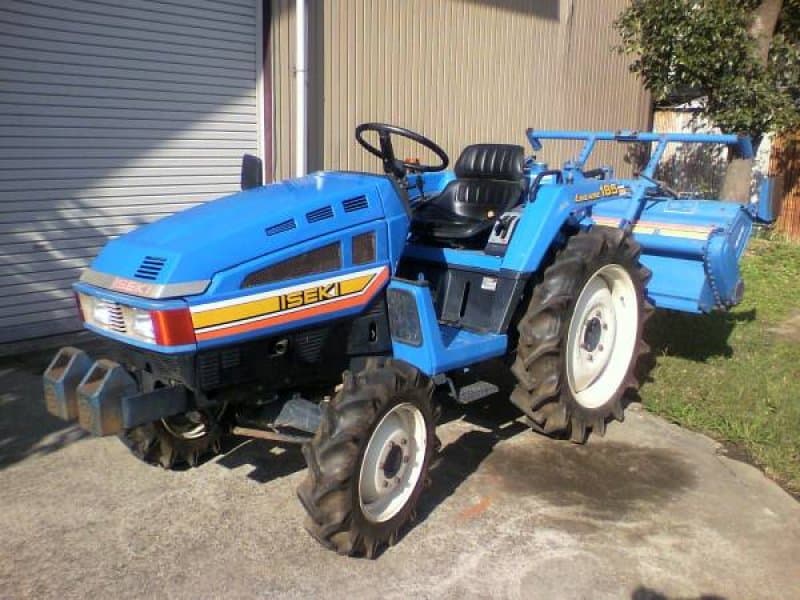

Iseki TU157

Last Updated: June 2024

Overview

The Iseki TU157 is a compact tractor equipped with a Mitsubishi K3C diesel engine. This engine is a 3-cylinder liquid-cooled unit, with a displacement of 54.9 cubic inches and a power output of 15.3 horsepower at a rated RPM of 2500. The TU157 features a gear-driven transmission with 6 forward and 2 reverse gears. It has been designed for a range of activities and can be used with various attachments suited for small scale farming, landscaping, or other utility purposes. The tractor is offered in both 2WD and 4WD variants, each having a specific standard tire configuration and respective weights of 1378 and 1466 pounds. The detailed tire sizes and tread measurements indicate a machine that is versatile for different terrains. While it's a modest machine, the TU157 was designed for ease of use and reliability.
Show more...

Key Specifications

Power Output: 15.3

Transmission: gear

Operating Weight: 1378 (2WD), 1466 (4WD)

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K3C
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
3
Displacement (ci)
54.9
Bore (in)
2.756
Stroke (in)
3.071
Rated RPM
2500
Power Output (hp)
15.3

Transmission

Type
gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
86.6
Width (in)
40.9
Height (in)
52
Operating Weight (lb)
1378 (2WD), 1466 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
5.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
ag (agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
