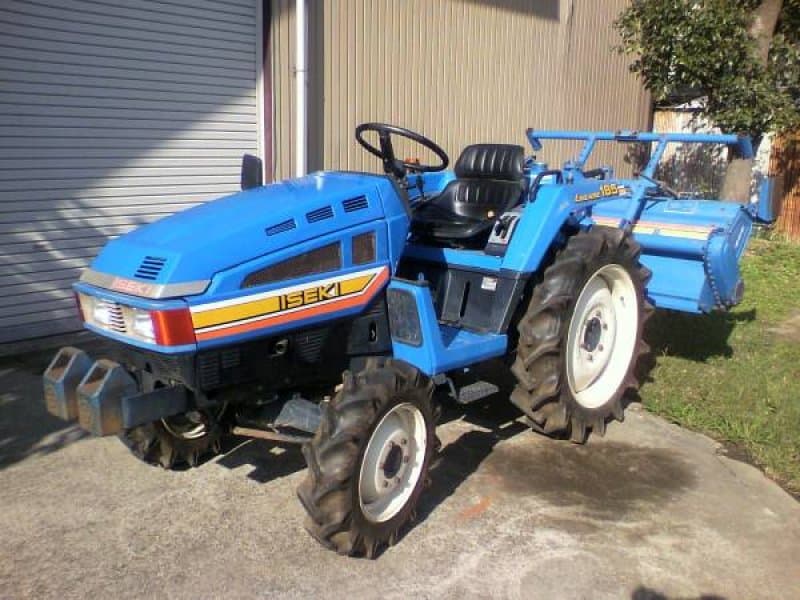

Iseki TU1501

Last Updated: June 2024

Overview

The Iseki TU1501 is a compact utility tractor that was manufactured by the Japanese company Iseki. It is characterized by its 4x2 2WD chassis and is powered by a 14.7 horsepower (11.0 kW) Mitsubishi K3B diesel engine. The tractor's engine is liquid-cooled, three-cylinder, and has a displacement of 51.8 cubic inches, with a bore and stroke of 2.67x3.07 inches, and operates at a rated RPM of 2600. Equipped with a 6-speed gear transmission, the Iseki TU1501 offers versatility for a variety of tasks with 6 forward gears and 2 reverse gears. This model sits on a wheelbase of 48.8 inches and has overall dimensions of 83.9 inches in length, 40.9 inches in width, and a height of 66.9 inches to the exhaust. The 2WD variant weighs approximately 1157 lbs. It comes standard with agricultural tires, a JIS0 hitch type, and has an electric starter system. The tractor's specifications suggest it was designed for a range of duties on a small farm or estate, with a focus on general-purpose jobs where a compact tractor would be most advantageous.
Show more...

Key Specifications

Category: Utility

Power Output: 14.7

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1157 (2WD)

Fuel Type: Diesel

Iseki TU1501 vs. Similar Tractors

Power Output
Poor
Greater than 2% of similar tractors.
Operating Weight
Average
Greater than 65% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K3B
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
51.8
Bore (in)
2.67
Stroke (in)
3.07
Rated RPM
2600
Power Output (hp)
14.7

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
83.9
Width (in)
40.9
Height (in)
66.9 (height to exhaust)
Operating Weight (lb)
1157 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
17.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
JIS0
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
