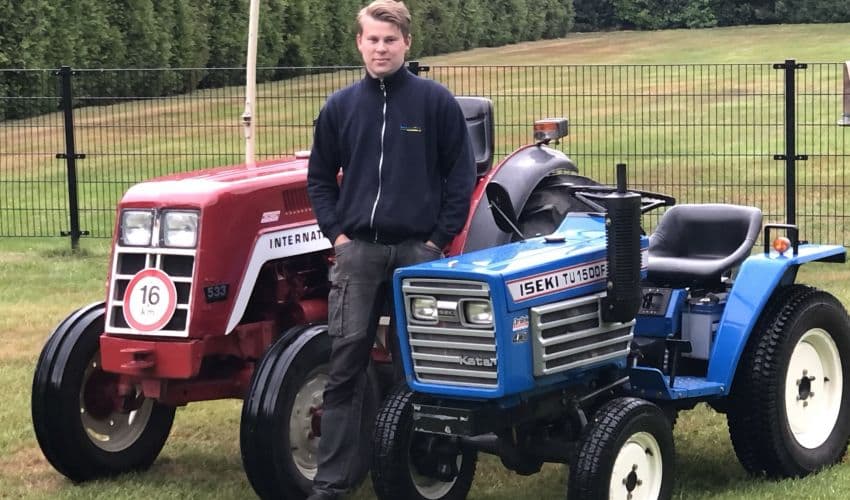

Iseki TU1500

Last Updated: June 2024

Overview

The Iseki TU1500 is a compact utility tractor, which is well suited for small-scale farming and property maintenance tasks. This tractor features a 2-wheel drive chassis with a 4x2 2WD configuration. Under the hood, it is powered by a Mitsubishi K3B diesel engine, which is a 3-cylinder, liquid-cooled design with a displacement of 51.8 cubic inches. It produces a power output of 14.7 horsepower and operates at a rated RPM of 2600. The engine manages its thermal regulation with a coolant capacity of 5 quarts. In terms of transmission, the TU1500 offers a 6-speed gear system, including 6 forward and 2 reverse gears, to handle various tasks with ease. The tractor's dimensions, including a length of 83.9 inches, width of 41 inches, and a height of 66.9 inches, paired with its operating weight of 1135 pounds, contribute to its compact and manageable size. The tractor's specific tire and hitch details, along with other features like PTO speeds and hydraulic system type, are not provided. It's also equipped with an electric starter system, making it easy to operate. Its design caters to efficiency and ease of use, aiming to serve the needs of small farms or estates.
Show more...

Key Specifications

Category: Utility

Power Output: 14.7

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1135

Fuel Type: Diesel

Iseki TU1500 vs. Similar Tractors

Power Output
Poor
Greater than 2% of similar tractors.
Operating Weight
Poor
Greater than 8% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K3B
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
51.8
Bore (in)
2.67
Stroke (in)
3.07
Rated RPM
2600
Power Output (hp)
14.7

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
83.9
Width (in)
41
Height (in)
66.9
Operating Weight (lb)
1135

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
