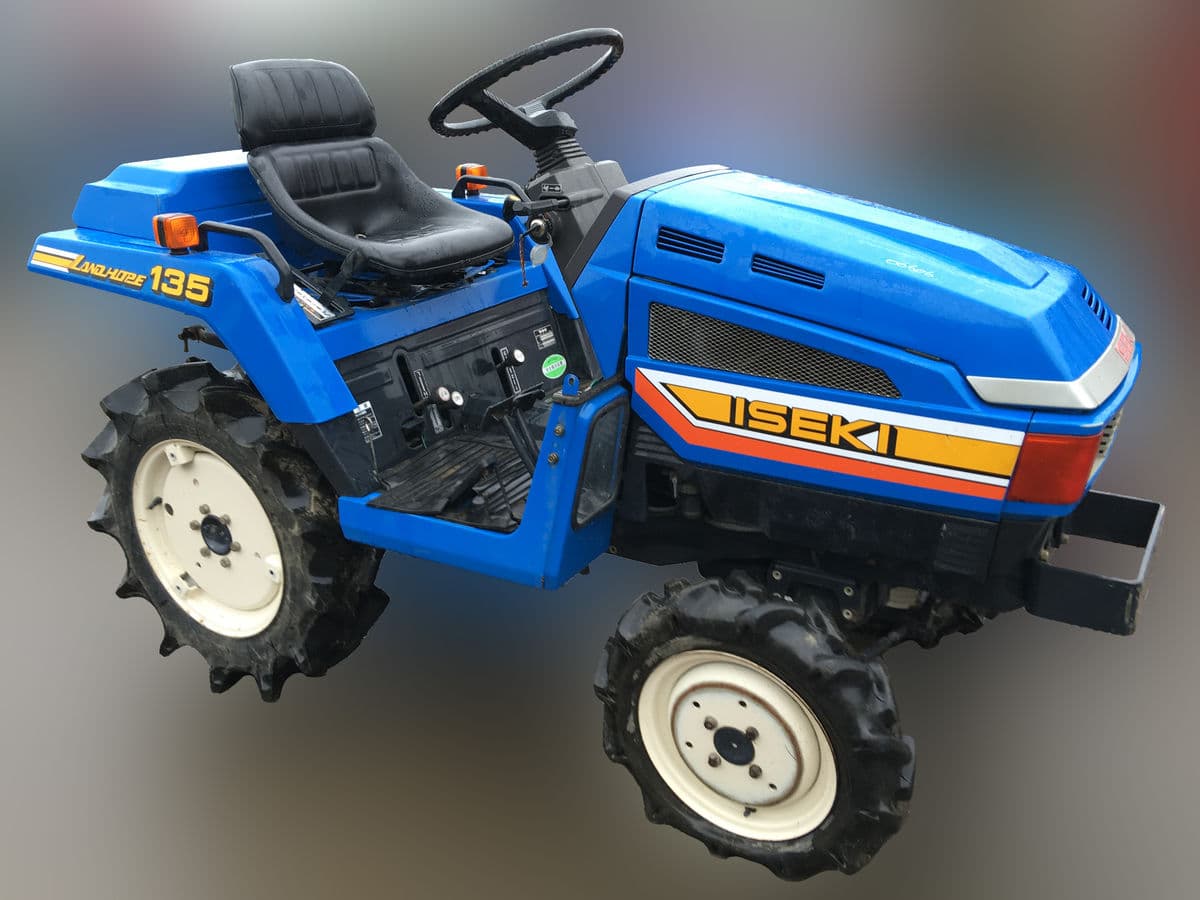

Iseki TU135F

Last Updated: June 2024

Overview

The Iseki TU135F is a compact utility tractor which is well-suited for a variety of tasks on a small farm or large garden. It features a robust Mitsubishi L3C three-cylinder diesel engine with a displacement of 49.3 cubic inches and a power output of 13.5 horsepower at 2500 RPM. The TU135F employs a four-wheel drive (4x4 MFWD 4WD) system with a gear-type transmission offering six forward and two reverse gears, providing ample capability for various agricultural operations. The tractor's chassis accommodates a Category 3 three-point hitch system, which is standard for compact tractors. Noteworthy for its compact size, the tractor is relatively light, with an operating weight of 1268 pounds, and dimensions that provide a small footprint and agility in operation. It has a height of roughly 52.4 inches to the steering wheel and a ground clearance of 9.1 inches, a front tread of 30.9 inches, and a rear tread adjustable between 30.3 and 33.9 inches, allowing for a stable operation on varied terrain.
Show more...

Key Specifications

Category: Utility

Power Output: 13.5

Transmission: Gear

Drive Type: 4WD

Operating Weight: 1268

Fuel Type: Diesel

Iseki TU135F vs. Similar Tractors

Power Output
Poor
Greater than 1% of similar tractors.
Operating Weight
Poor
Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
L3C
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
49.3
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
13.5

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
83.3
Width (in)
39.4
Height (in)
52.4 (Height of steering wheel, assume total height is similar)
Operating Weight (lb)
1268

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
