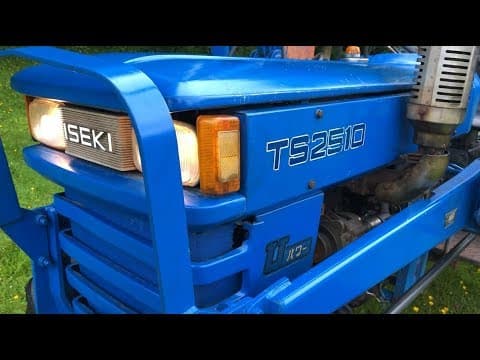

Iseki TS2510

Last Updated: September 2024

Overview

The Iseki TS2510 is a compact 4WD tractor designed for various farming tasks. It features a 9-speed forward and 3-speed reverse gear transmission, giving farmers good control over their work speed. The tractor is powered by a 2-cylinder Isuzu 2AB1 diesel engine, which is liquid-cooled for better temperature management. This engine produces 25 horsepower at 2600 RPM, making it suitable for small to medium-sized farms.

The TS2510 has a sturdy build, measuring 117.7 inches long, 56.7 inches wide, and 54.3 inches tall. It weighs 2601 pounds, providing good stability during operation. The tractor comes with agricultural tires on both front and rear, ensuring good traction in various field conditions. With its electric starter, the TS2510 is easy to get running, even on cold mornings. The 64.6-inch wheelbase offers a good balance between maneuverability and stability, making this tractor a versatile choice for many farming applications.
Show more...

Key Specifications

Power Output: 25 hp (18.6 kW)

Transmission: Gear

Drive Type: 4WD

Operating Weight: 2601 lb (1180 kg)

Fuel Type: Diesel

Iseki TS2510 vs. Similar Tractors

Power Output

The Power Output for the Iseki TS2510 is Below Average. It is greater than 17% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Iseki TS2510 is Below Average. It is greater than 18% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Iseki TS2510 is Below Average. It is greater than 12% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Iseki TS2510 is Above Average. It is greater than 80% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Isuzu
Model
2AB1
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
2
Displacement
72 ci (1.2 L)
Bore
3.39 in (86.1 mm)
Stroke
4.02 in (102.1 mm)
Rated RPM
2600
Power Output
25 hp (18.6 kW)

Transmission

Type
Gear
Forward Gears
9
Reverse Gears
3

Drivetrain

Drive Type
4WD
