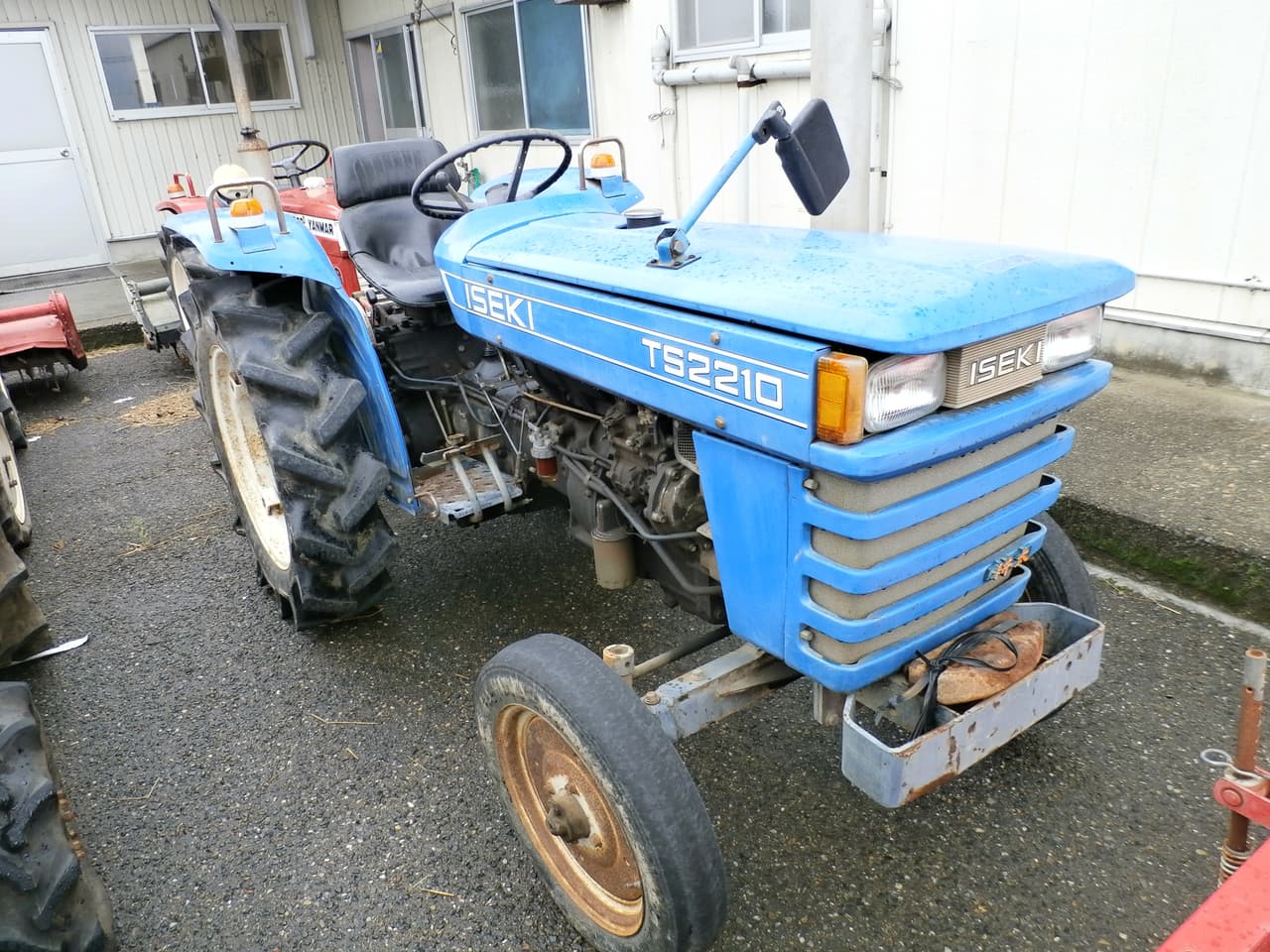

Iseki TS2210

Last Updated: June 2024

Overview

The Iseki TS2210 is categorized as a utility tractor that offers a simple 4x2 (2WD) chassis configuration. It is driven by a robust Isuzu 2AB1 diesel engine with two cylinders, boasting a power output of 22 hp and a displacement of 72.25 cubic inches. This tractor is well-suited for various tasks on a small farm or homestead. The powerplant's liquid cooling system ensures efficient operation, and with a rated RPM of 2600, the tractor offers adequate performance for regular tasks. The gear transmission system with 9 forward and 3 reverse gears provides flexibility for different working conditions. The TS2210 features standard agricultural (Ag) tires with a wheelbase of 61.5 inches, which aids stability. The vehicle dimensions contribute to its maneuverability, with a length of 111 inches, a width of 51 inches, and a height of 49 inches. The operating weight is 2363 lbs, indicating that it's robust enough for various terrain and tasks. Despite its capability, the tractor maintains a ground clearance of 12 inches, allowing for versatility in various conditions. The electric starter ensures reliable ignition, which is a significant convenience feature.
Show more...

Key Specifications

Category: Utility

Power Output: 22

Transmission: Gear

Drive Type: 2WD

Operating Weight: 2363

Fuel Type: Diesel

Iseki TS2210 vs. Similar Tractors

Power Output
Below Average
Greater than 13% of similar tractors.
Operating Weight
Below Average
Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer
Isuzu
Model
2AB1
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
2
Displacement (ci)
72.25
Bore (in)
3.39
Stroke (in)
4.02
Rated RPM
2600
Power Output (hp)
22

Transmission

Type
Gear
Forward Gears
9
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
111
Width (in)
51
Height (in)
49
Operating Weight (lb)
2363

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
