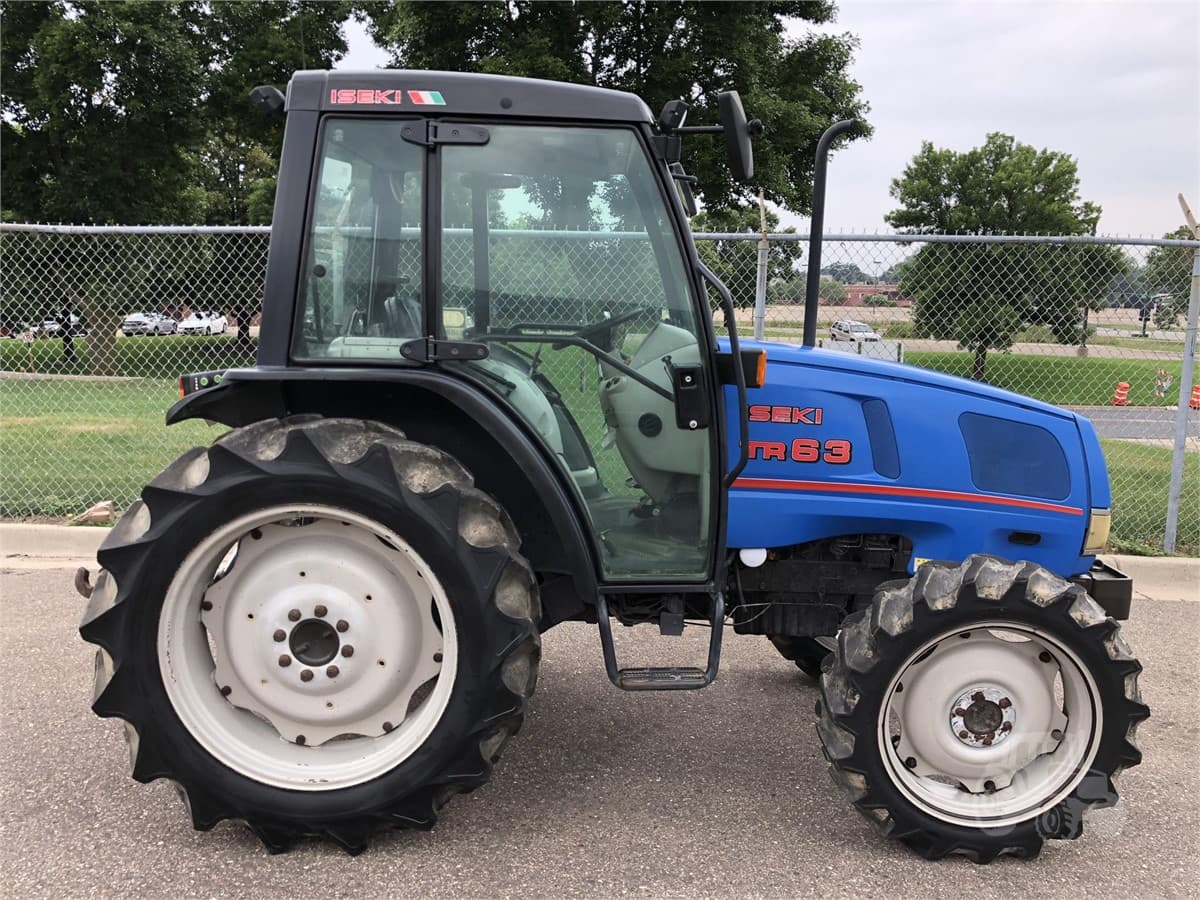

Iseki TR63

Last Updated: June 2024

Overview

The Iseki TR63 is a versatile utility tractor designed to cater to a variety of agricultural tasks. It is equipped with a robust four-wheel drive chassis, providing enhanced traction and stability in diverse farming conditions. The tractor is powered by a reliable Perkins 704-30 diesel engine with a displacement of 182.8 cubic inches and a power output of 62.1 horsepower, coupled to a 20-speed forward and reverse transmission, enabling it to handle a wide range of operations requiring different speeds and power applications. It is designed for comfort with power steering and an electric starter system for ease of operation. The tractor's wheelbase measures 79.1 inches, contributing to its balanced handling. Suitable for various tasks, from fieldwork to loader work, the Iseki TR63 combines power with maneuverability, making it an asset for any farming operation.
Show more...

Key Specifications

Category: Utility

Power Output: 62.1

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: 5313

Fuel Type: Diesel

Iseki TR63 vs. Similar Tractors

Power Output
Average
Greater than 59% of similar tractors.
Operating Weight
Average
Greater than 45% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
704-30
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
182.8
Bore (in)
3.82
Stroke (in)
3.94
Rated RPM
2600
Power Output (hp)
62.1

Transmission

Type
-
Forward Gears
20
Reverse Gears
20
Total Gears
40

Dimensions

Length (in)
144.1
Width (in)
66.1
Height (in)
92.9
Operating Weight (lb)
5313

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD (Mechanical Front Wheel Drive)
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (Including both Categories II and I as "Rear Type: II/I" was mentioned)
Hitch Category
Category 2/1
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
