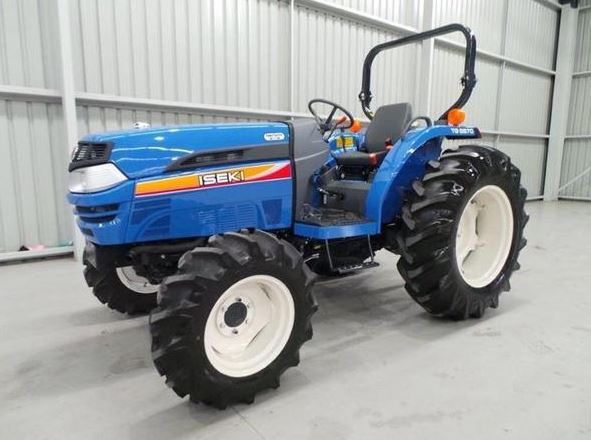

Iseki TR55

Last Updated: June 2024

Overview

The Iseki TR55 is a utility tractor designed for various agricultural tasks. With a robust 4-wheel drive (4WD) and power steering, it simplifies operations on diverse terrains. The TR55 sports a 54.2 horsepower (hp) Perkins engine, specifically the 704-30 model, which is liquid-cooled and diesel-fueled. The engine displacement of 182.8 cubic inches and a rated RPM of 2600 reflect an efficient and powerful machine. The transmission supports 20 forward gears, but the details of reverse gear are not specified. This model's physical dimensions include a length of 144.1 inches, a width of 66.1 inches, and a height of 92.9 inches, with a substantial operating weight of 5269 pounds. While many specifications details remain unknown due to data limitations, the TR55's capabilities in agricultural settings are evident from the information provided.
Show more...

Key Specifications

Category: Utility

Power Output: 54.2

Drive Type: 4WD

Operating Weight: 5269

Fuel Type: Diesel

Iseki TR55 vs. Similar Tractors

Power Output
Average
Greater than 52% of similar tractors.
Operating Weight
Average
Greater than 44% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
704-30
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
182.8
Bore (in)
3.82
Stroke (in)
3.94
Rated RPM
2600
Power Output (hp)
54.2

Transmission

Type
-
Forward Gears
20
Reverse Gears
-
Total Gears
20

Dimensions

Length (in)
144.1
Width (in)
66.1
Height (in)
92.9
Operating Weight (lb)
5269

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II/I
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
