Iseki TPC153

Last Updated: June 2024

Overview

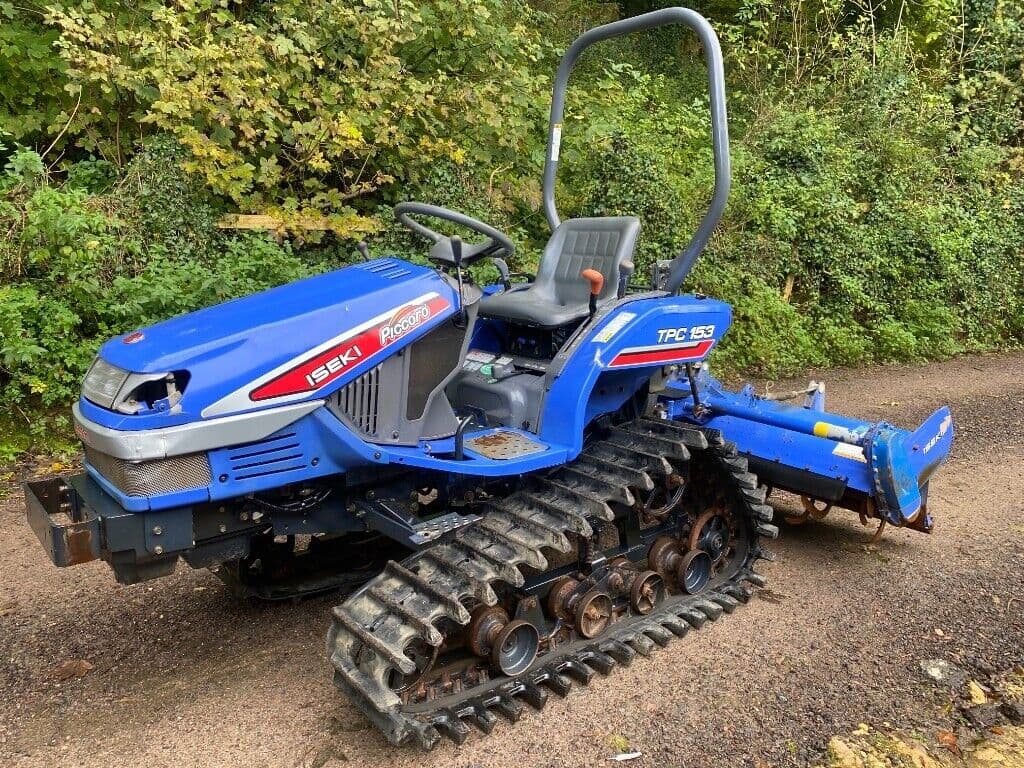

The Iseki TPC153 is a tractor equipped with an Iseki E383-B three-cylinder diesel engine rated at 15.4 horsepower and 2500 RPM. With a displacement of 50.7 cubic inches, the engine features a bore and stroke of 2.76x2.83 inches and is liquid-cooled. A shuttle transmission provides both 8 forward and 8 reverse gears, suitable for various tasks that require frequent change in driving direction. The tractor measures 84.5 inches in length, 47.4 inches in width and stands 76.8 inches tall, with an operating weight of 1720 pounds. The electric starter system ensures easy starting, and the tractor's ground clearance is a notable 12.6 inches, which is beneficial for working in uneven terrain. The TPC153's other specifications, such as tire size, PTO speeds, hydraulic system type, and hitch capabilities, remain unknown from the provided data. This model would serve well in a variety of utility roles wherever a compact and maneuverable tractor is needed.
Show more...

Key Specifications

Power Output: 15.4

Transmission: Shuttle

Operating Weight: 1720

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Iseki
Model
E383-B
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
50.7
Bore (in)
2.76
Stroke (in)
2.83
Rated RPM
2500
Power Output (hp)
15.4

Transmission

Type
Shuttle
Forward Gears
8
Reverse Gears
8
Total Gears
16

Dimensions

Length (in)
84.5
Width (in)
47.4
Height (in)
76.8
Operating Weight (lb)
1720

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
