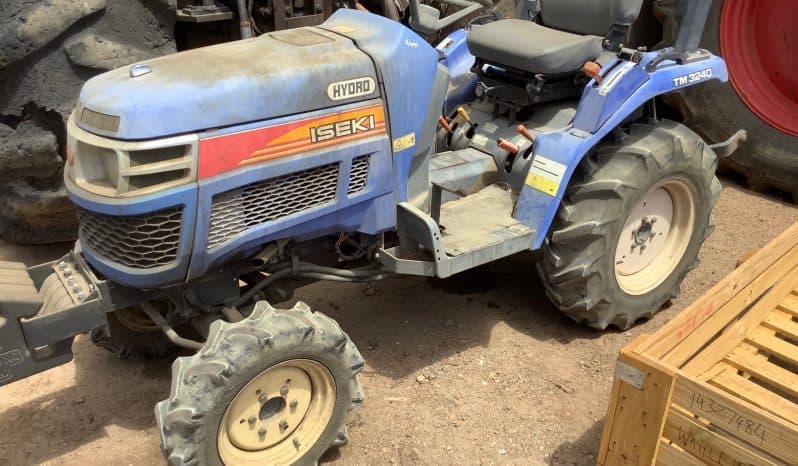

Iseki TM3240

Last Updated: June 2024

Overview

The Iseki TM3240 is a sub-compact utility tractor known for its versatility and power. Featuring a 1.1 L, 3-cylinder diesel engine, it delivers a power output of 21.7 horsepower, with an engine displacement of 68.5 cubic inches. The tractor operates on a 4-wheel drive (4WD) chassis with hydrostatic power steering, enhancing maneuverability. It comes equipped with a hydrostatic transmission, consisting of 6 forward and 2 reverse gears. This model boasts a wheelbase of 59.8 inches and maintains a range of tire options, including agricultural and lawn/turf configurations. This allows for a wide array of applications, from farming to property maintenance. The dry element air cleaner, high compression ratio of 22.5:1, and rated RPM of 2600 signify a robust and efficient engine design. With an electric starter and 12 volts, the TM3240 emphasizes user convenience and reliable start-up. The operating weight ranges between 1521 to 1565 pounds, supporting significant lift and load capabilities, evident by its maximum hitch lift capacity of 3,086 pounds.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 21.7

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1521 to 1565

Fuel Type: Diesel

Iseki TM3240 vs. Similar Tractors

Power Output
Below Average
Greater than 12% of similar tractors.
Hitch Capacity
Poor
Greater than 6% of similar tractors.
Operating Weight
Above Average
Greater than 81% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3112
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
68.5
Bore (in)
3.08
Stroke (in)
3.07
Rated RPM
2600
Power Output (hp)
21.7

Transmission

Type
Hydrostatic
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
105.5
Width (in)
48.4
Height (in)
-
Operating Weight (lb)
1521 to 1565

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
7.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag front: 5.00-12, Ag rear: 9.5-16, Lawn/turf front: 23.0x10.50-12, Lawn/turf rear: 315/75D-15
Manufacture - End Year
-
Hitch Type
Rear Type: 1
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
Max capacity: 3,086 lbs
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
