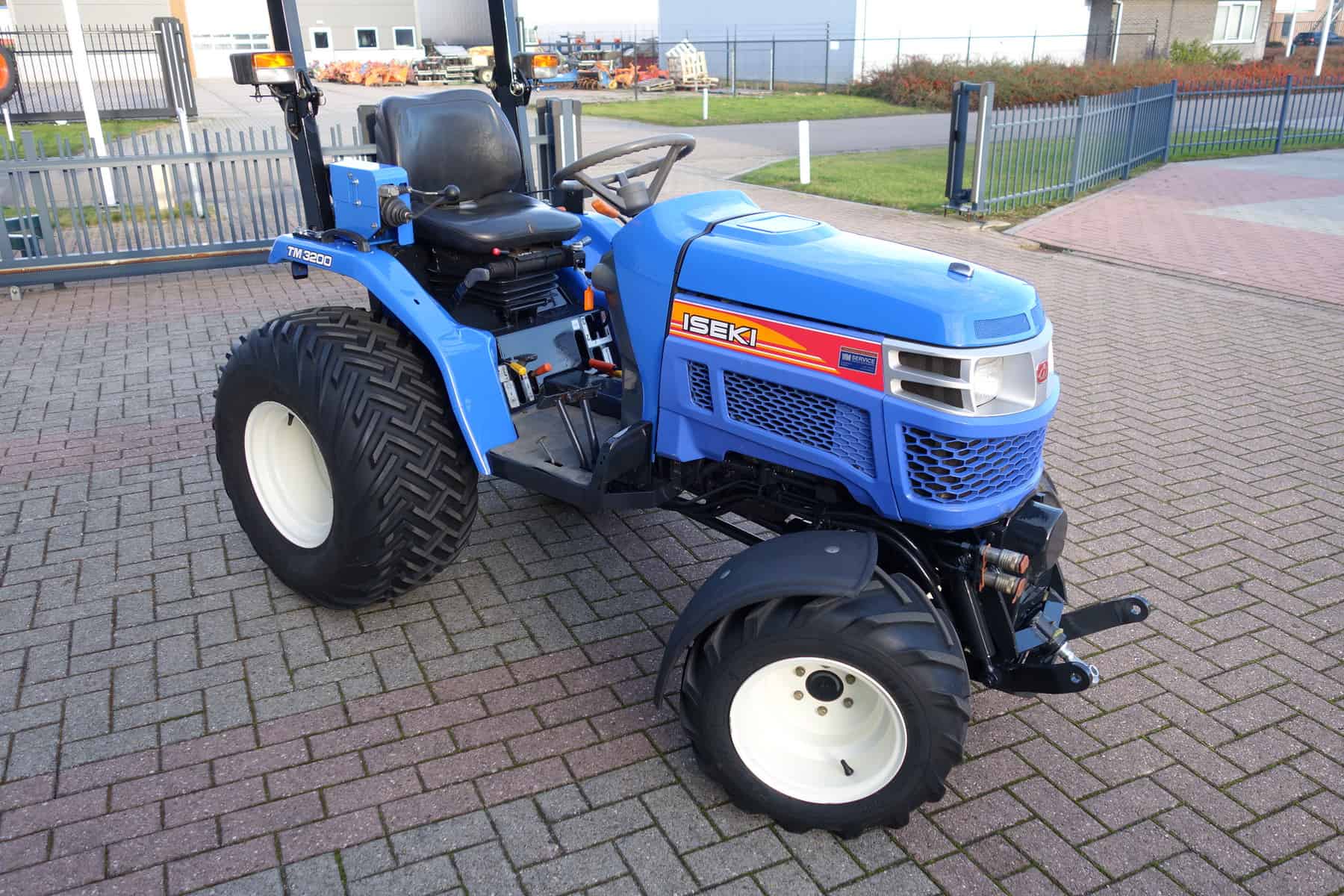

Iseki TM3200

Last Updated: June 2024

Overview

The Iseki TM3200 is categorized as a sub-compact utility tractor suited for a variety of tasks around small farms or estates. It is equipped with a 19.2 horsepower diesel engine, and the power is transmitted through either a gear-type transmission with 6 forward and 2 reverse speeds or a hydrostatic transmission with infinite forward and reverse. This model has a four-wheel drive (4WD) chassis with multidirectional front-wheel-drive assistance (MFWD). Comfort in operation is facilitated by power steering. The tractor's engine, having three cylinders, provides a displacement of 68.5 cubic inches with a rated RPM of 2500. With the ability to fit either agricultural or turf tires, the TM3200 maintains versatility for both fieldwork and maintenance on more delicate grounds. The tractor exhibits a range in operating weight from approximately 1433 to 1477 pounds, which, in combination with a rear category I hitch system, offers ample utility for small-scale operations.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 19.2

Transmission: Gear / Hydrostatic

Drive Type: 4WD

Operating Weight: 1433 to 1477

Fuel Type: Diesel

Iseki TM3200 vs. Similar Tractors

Power Output
Poor
Greater than 8% of similar tractors.
Operating Weight
Above Average
Greater than 81% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3112
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Indirect injection
Cylinders
3
Displacement (ci)
68.5
Bore (in)
3.08
Stroke (in)
3.07
Rated RPM
2500
Power Output (hp)
19.2

Transmission

Type
Gear / Hydrostatic
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
105.5
Width (in)
47.6
Height (in)
89.8 (Height ROPS)
Operating Weight (lb)
1433 to 1477

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
7.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (5.00-12) / Lawn/turf (20.5x8.00-10)
Manufacture - End Year
-
Hitch Type
Rear, Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
