Iseki TL4201

Last Updated: June 2024

Overview

The Iseki TL4201 is a 2WD compact utility tractor, built by Iseki and powered by an Isuzu 4FA1 4-cylinder liquid-cooled diesel engine with a power output of 41.4 hp. It has an electric starter system and operates on a 12-volt system. The tractor utilizes a manual transmission with 18 forward and 6 reverse gears. The Iseki TL4201 is designed with a 4x2 2WD chassis, weighing approximately 3208 lbs for the 4WD version and featuring a 71.1-inch wheelbase, which contributes to its stability. With a length of 126.4 inches and a width of 60.2 inches, this tractor is adept at a range of agricultural tasks. Its height to the exhaust is 76 inches. Unfortunately, certain specifications such as the steering type, tire sizes, exact hitch details, and hydraulic system type are not provided in the data given.

Key Specifications

Category: Utility

Power Output: 41.4

Transmission: Manual

Drive Type: 2WD

Operating Weight: 3208 (assuming 4WD model, because 2WD has less weight)

Fuel Type: Diesel

Image Gallery

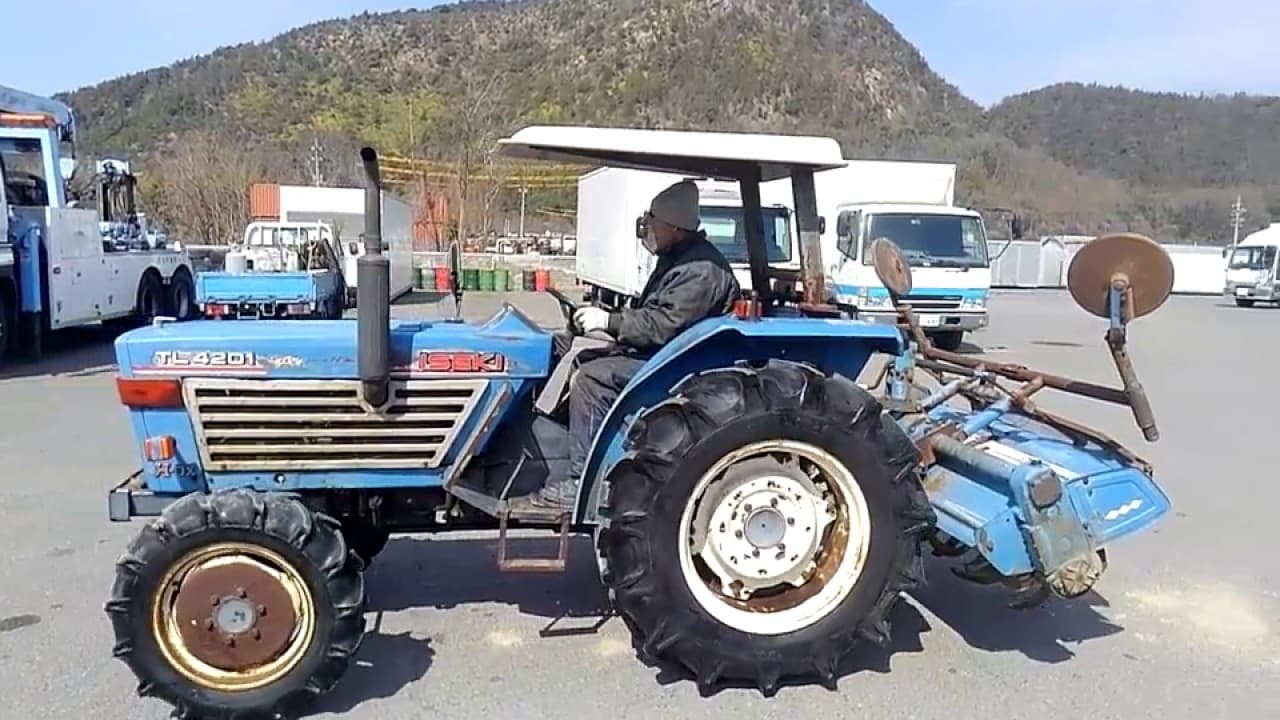

Iseki TL4201 Tractor

Iseki TL4201 vs. Similar Tractors

Power Output

Average

Greater than 39% of similar tractors.

Operating Weight

Above Average

Greater than 73% of similar tractors.

Technical Specifications

Engine

Manufacturer: Isuzu
Model: 4FA1
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural (assumed due to absence of turbo/supercharger specification)
Cylinders: 4
Displacement (ci): 90.7
Bore (in): -
Stroke (in): -
Rated RPM: 2600
Power Output (hp): 41.4

Transmission

Type: Manual
Forward Gears: 18
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 126.4
Width (in): 60.2
Height (in): 76 (height to exhaust)
Operating Weight (lb): 3208 (assuming 4WD model, because 2WD has less weight)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (agricultural)
Manufacture - End Year: -
Hitch Type: JIS1 (interpreted as reference to Japanese Industrial Standards Category 1 hitch)
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
