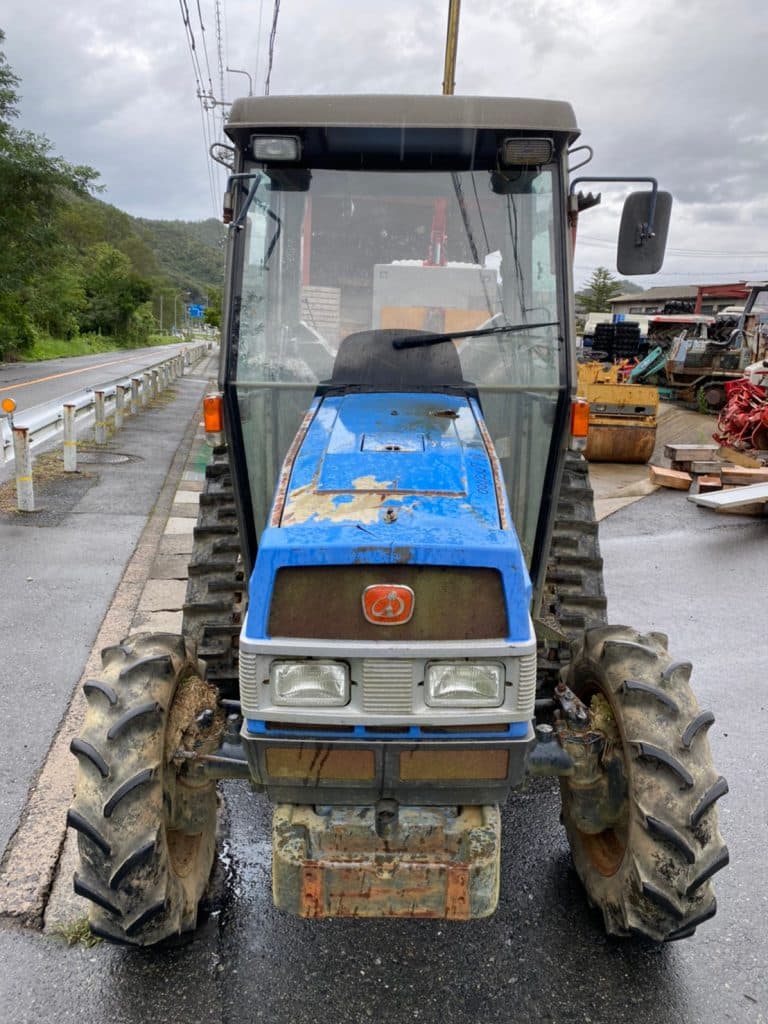

Iseki TK46

Last Updated: June 2024

Overview

The Iseki TK46 is a tractor designed with a focus on versatility and durability. Powered by an Isuzu E4CG four-cylinder liquid-cooled diesel engine, it offers a reliable 45.4 horsepower. Details about the tractor's capacity for tasks are provided by its listed operating weights, which are 3869 pounds with ROPS and 4244 pounds with a cab, suiting a range of agricultural applications. This tractor features a generous 16 forward and reverse gear transmission, allowing for adaptability in various tasks. The listed engine displacement is 134.1 cubic inches with a bore and stroke of 3.425 inches and 3.64 inches, respectively, and a rated RPM of 2600. Although some details regarding hitch type and engine specifics are provided, information about the tractor’s hydraulic system, PTO speeds, and exact wheel configuration is not specified, which leaves some questions about the functionalities and attachments supported by the TK46. In terms of dimensions, it has a length of 135.4 inches, a width of 60 inches, and varying heights depending on the presence of ROPS or a cab, at 90.9 and 90.6 inches respectively. The detailed tread measurements and the tire sizes indicate the tractor's stability and capability on different terrains.
Show more...

Key Specifications

Power Output: 45.4

Operating Weight: 3869 (ROPS), 4244 (cab)

Fuel Type: diesel

Image Gallery

Technical Specifications

Engine

Manufacturer
Isuzu
Model
E4CG
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
4
Displacement (ci)
134.1
Bore (in)
3.425
Stroke (in)
3.64
Rated RPM
2600
Power Output (hp)
45.4

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
16

Dimensions

Length (in)
135.4
Width (in)
60
Height (in)
90.9 (ROPS), 90.6 (cab)
Operating Weight (lb)
3869 (ROPS), 4244 (cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
JIS1
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS, Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
