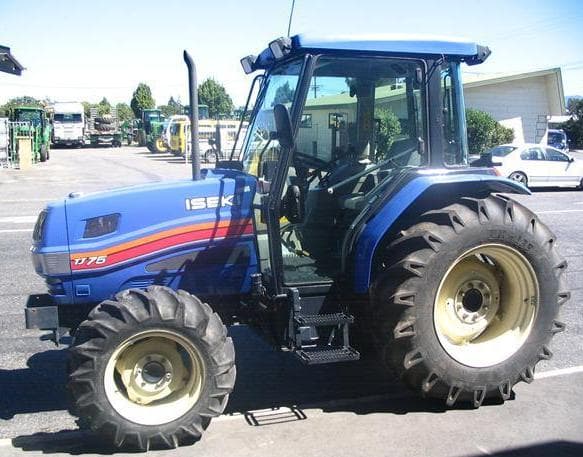

Iseki TJ75

Last Updated: June 2024

Overview

The Iseki TJ75 is a utility tractor equipped with a 74 horsepower turbocharged diesel engine, featuring an Iseki E4DE model engine with a liquid cooling system. It has a 4x2 2WD chassis and utilizes power steering to enhance maneuverability. The power shift transmission offers an impressive 24 forward and reverse gears, allowing the tractor to handle a wide range of tasks. The 180.3 cubic inch engine operates at an optimal rated RPM of 2600. With a wheelbase of 84.7 inches and overall dimensions of 149.4 inches in length, 65.8 inches in width, and 98 inches in height, the TJ75 is configured to provide stable operation without compromising on agility. This model uses Ag tires, with 9.5-inch wide front tires and 12.4-inch wide rear tires. It's worth noting that the Iseki TJ75 may vary in specific features like hitch type or hydraulic system, which are not detailed in the provided data.
Show more...

Key Specifications

Category: Utility

Power Output: 74

Transmission: Power shift

Drive Type: 2WD

Operating Weight: 5600

Fuel Type: Diesel

Iseki TJ75 vs. Similar Tractors

Power Output
Average
Greater than 67% of similar tractors.
Operating Weight
Average
Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E4DE
Cooling Type
Liquid
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Wastegate turbocharged
Cylinders
4
Displacement (ci)
180.3
Bore (in)
3.82
Stroke (in)
3.94
Rated RPM
2600
Power Output (hp)
74

Transmission

Type
Power shift
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
149.4
Width (in)
65.8
Height (in)
98
Operating Weight (lb)
5600

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
22
Front Tire Width (in)
9.5
Rear Tire Diameter (in)
36
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
JIS1 (assumed standard)
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
