Iseki TH4330

Last Updated: June 2024

Overview

The Iseki TH4330 is a compact utility tractor that offers reliability and versatility for a variety of tasks. The 32.6 horsepower engine is well-suited for both property maintenance and light-duty farming, with the durability expected from a liquid-cooled, diesel engine. At the heart of this machine is a smooth hydrostatic transmission that provides infinite forward and reverse gears for ultimate control. The tractor's 4WD capability, along with an operating weight of 2183 lbs, ensures stability and traction on various terrains. Steering is made effortless with power steering, and when it comes to the PTO and hydraulic systems, although specifics aren't provided, the open center hydraulic system suggests functionality for a range of attachments. Given the potential options for agricultural and lawn/turf tires, the TH4330 can be adaptable to different working environments.

Key Specifications

Category: Utility

Power Output: 32.6

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2183

Fuel Type: Diesel

Image Gallery

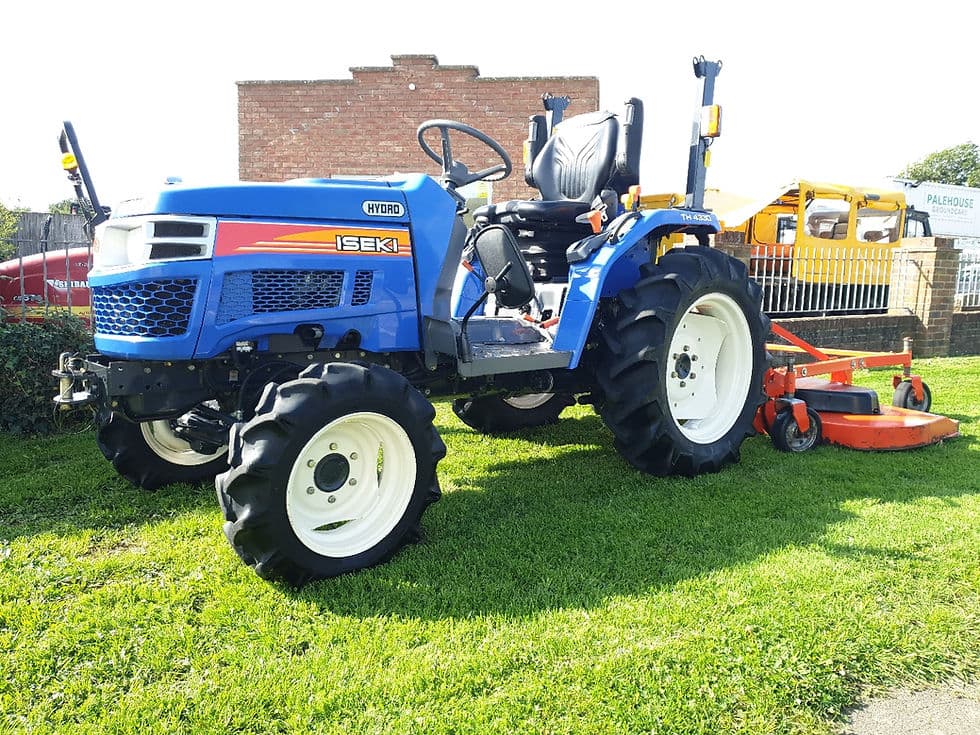

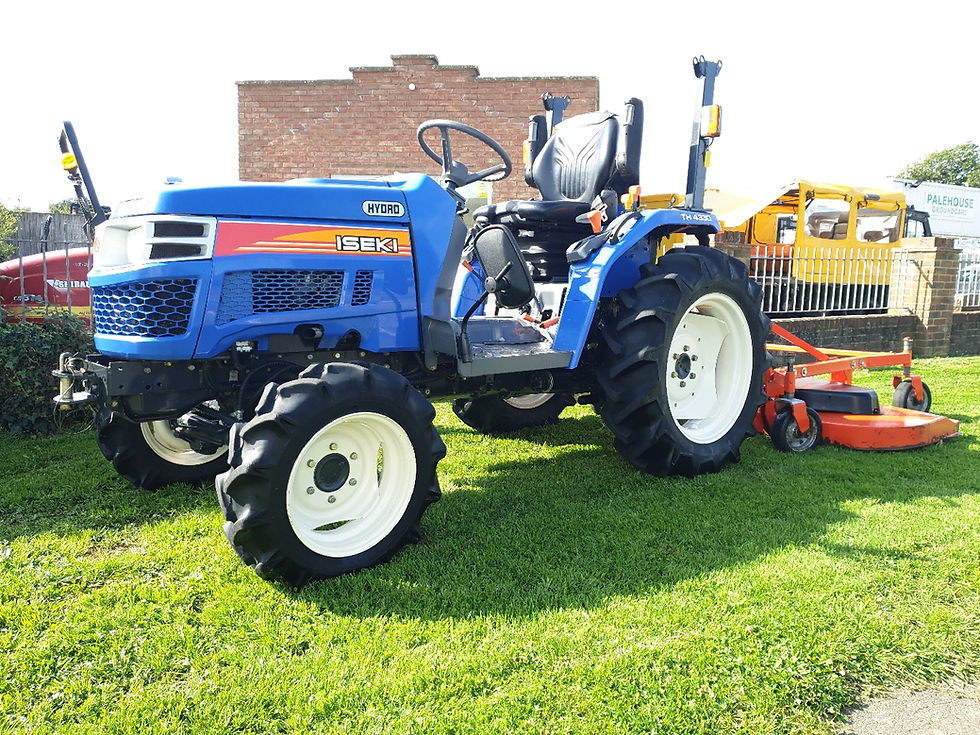

Iseki TH4330 Tractor

Iseki TH4330 vs. Similar Tractors

Power Output

Below Average

Greater than 28% of similar tractors.

Operating Weight

Below Average

Greater than 17% of similar tractors.

Technical Specifications

Engine

Manufacturer: Iseki
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated (assumed as not specified)
Cylinders: 3
Displacement (ci): 91.4
Bore (in): -
Stroke (in): -
Rated RPM: 2500
Power Output (hp): 32.6

Transmission

Type: Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 115
Width (in): 49.6
Height (in): 92.5 (with ROPS)
Operating Weight (lb): 2183

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): Unknown (assumes either 24 or 26 based on lawn/turf front tire sizes)
Front Tire Width (in): Unknown (assumes 8.50 or 12.00 based on lawn/turf front tire widths)
Rear Tire Diameter (in): Unknown (assumes 24 based on provided rear tire size)
Rear Tire Width (in): Unknown (assumes 9.5 based on provided rear tire size)
Front/Rear Rim Diameter (in): -
Tire Type: Unknown (offers both Ag and Lawn/Turf as options)
Manufacture - End Year: -
Hitch Type: Three-Point Hitch (assumed based on "Rear Type: 1")
Hitch Category: Category 1
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Unknown (assumption would be ROPS based on the height provided)
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
