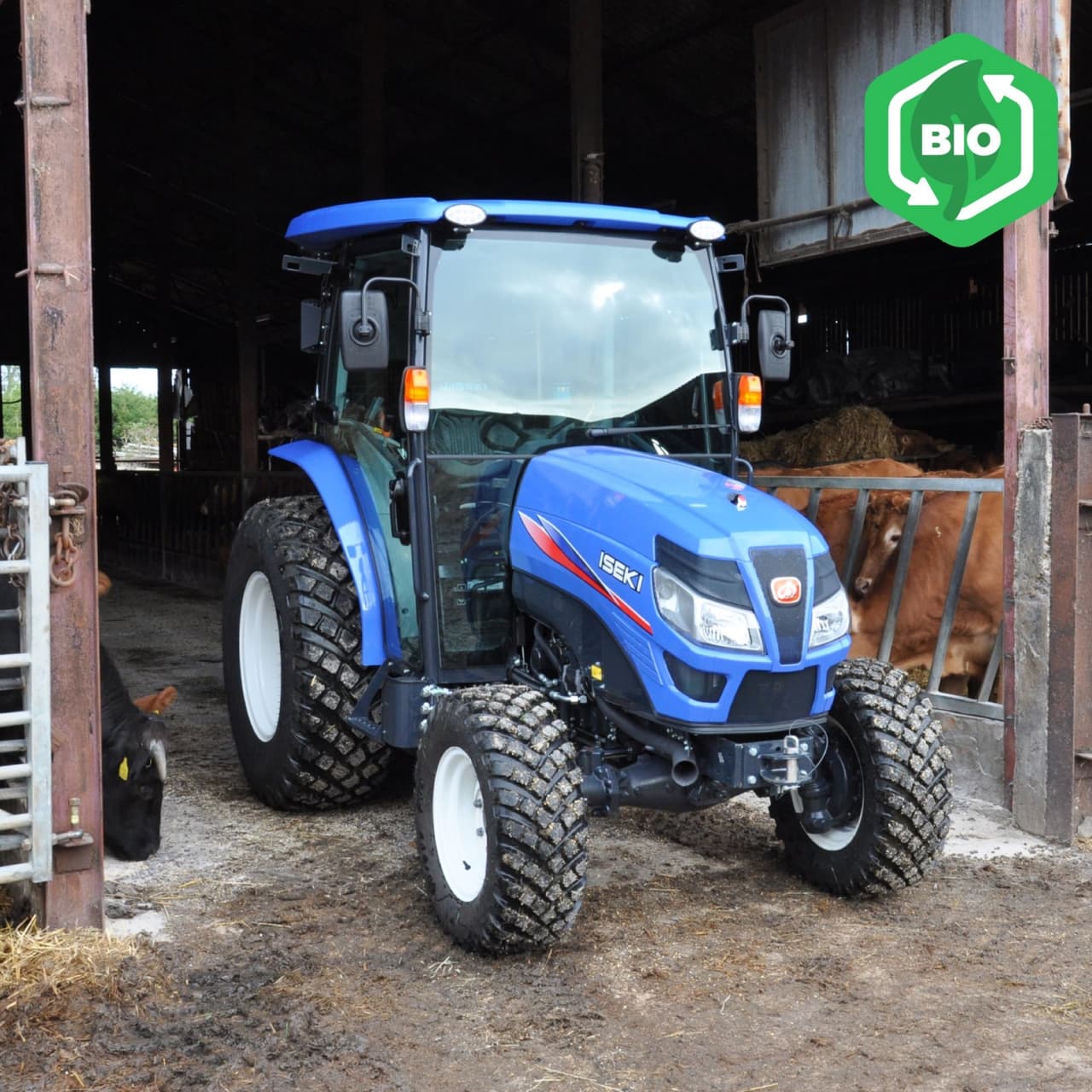

Iseki TG6625

Last Updated: June 2024

Overview

The Iseki TG6625 is a turbocharged diesel tractor designed with versatility in mind. Equipped with a 60 horsepower Shibaura N4LDI-TA engine and a 4-wheel drive (4WD) system, it is suited for a variety of tasks. The tractor's hydrostatic transmission offers infinite forward and reverse gears within a 6-range setup, providing the user with a high level of control over the machine's speed and power. The engine's rated RPM tops at 2600, matched with an electric starter system for reliable operation. The power steering provides an easier operating experience. This model features a 4x4 MFWD 4WD chassis, ensuring stability and better traction in diverse conditions. With a length of 135.2 inches, a width of 67.9 inches, and a height of 89.2 inches with a cab, the TG6625 has substantial size, while its operating weight of 4475 lbs adds to its stability and traction. Although its tire dimensions are not specified, the Iseki TG6625’s sturdy construction and design imply a capability to accommodate a variety of tire types suited for different terrains. The tractor’s ground clearance of 10 inches allows for unhindered operation over uneven surfaces.
Show more...

Key Specifications

Power Output: 60

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 4475

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N4LDI-TA
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
135.2
Bore (in)
3.307
Stroke (in)
3.937
Rated RPM
2600
Power Output (hp)
60

Transmission

Type
Hydrostatic
Forward Gears
Infinite (6-range)
Reverse Gears
Infinite (6-range)
Total Gears
-

Dimensions

Length (in)
135.2
Width (in)
67.9
Height (in)
89.2
Operating Weight (lb)
4475

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
