Iseki TG6405

Last Updated: June 2024

Overview

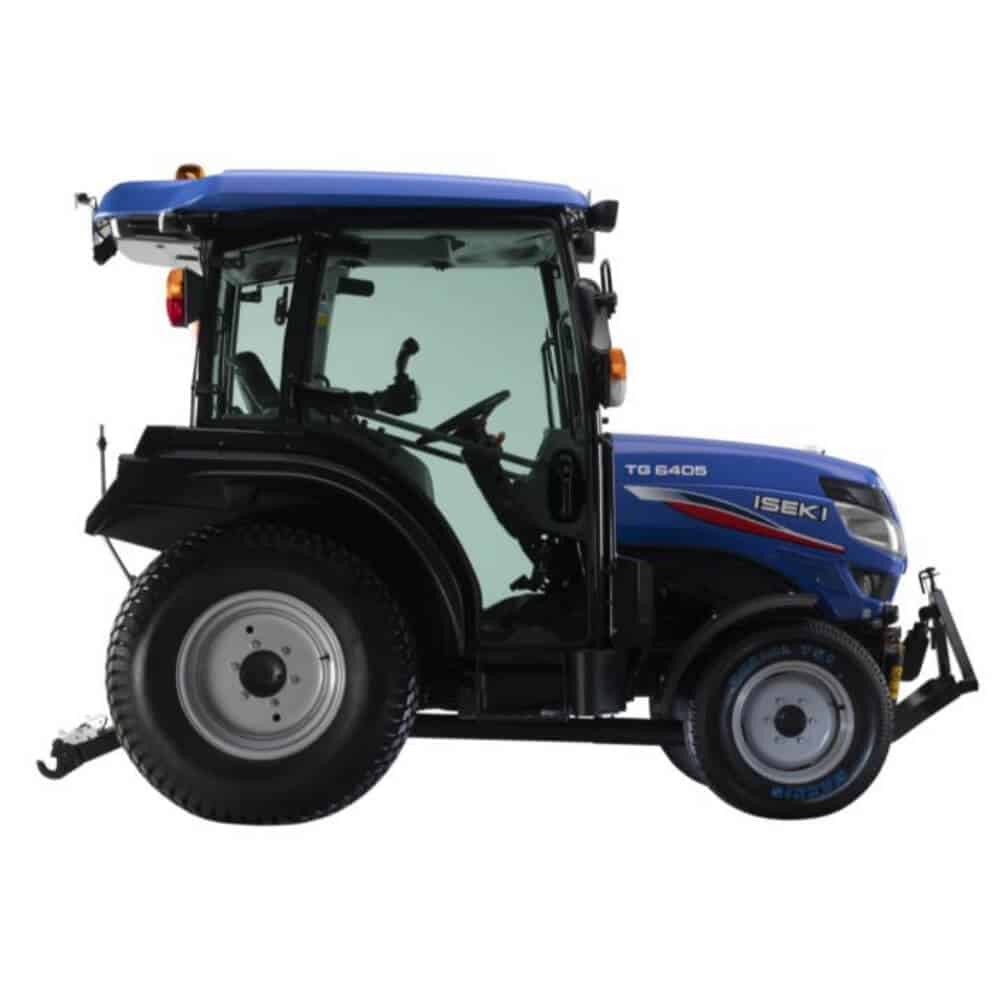

The Iseki TG6405 is a utility tractor equipped with a powerful Iseki E3CDT diesel engine. It offers a liquid cooling system to manage engine heat and ensures smooth operation with its hydrostatic transmission offering infinite (3-range) gears both in forward and reverse. This model features a power steering system which greatly eases the handling and maneuverability. Its 4x4 MFWD 4WD chassis provides enhanced traction and performance in various working conditions. The tractor’s engine is rated at 38.5 horsepower with a displacement of 91.4 ci. Engine efficiency is backed by a 2600 RPM rating and a torque output of 93 lb-ft at 1600 RPM. The tractor is designed to cater to a wide range of tasks and can adapt to different attachments with a Category I hitch. It maintains a strong stance with a wheelbase of 69.5 inches and ground clearance of 10.8 inches. The Iseki TG6405 is offered in two variants: one with a ROPS (Rollover Protection Structure) and another with a full-enclosure cab, with their respective operating weights being 3307 and 3693 pounds.
Show more...

Key Specifications

Power Output: 38.5

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 3307 (ROPS), 3693 (Cab)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3CDT
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
91.4
Bore (in)
3.425
Stroke (in)
3.31
Rated RPM
2600
Power Output (hp)
38.5

Transmission

Type
Hydrostatic
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
-

Dimensions

Length (in)
125
Width (in)
43.3
Height (in)
102.4 (ROPS), 86.6 (Cab)
Operating Weight (lb)
3307 (ROPS), 3693 (Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open (ROPS), Cab (Cab)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
