Iseki TG5570

Last Updated: June 2024

Overview

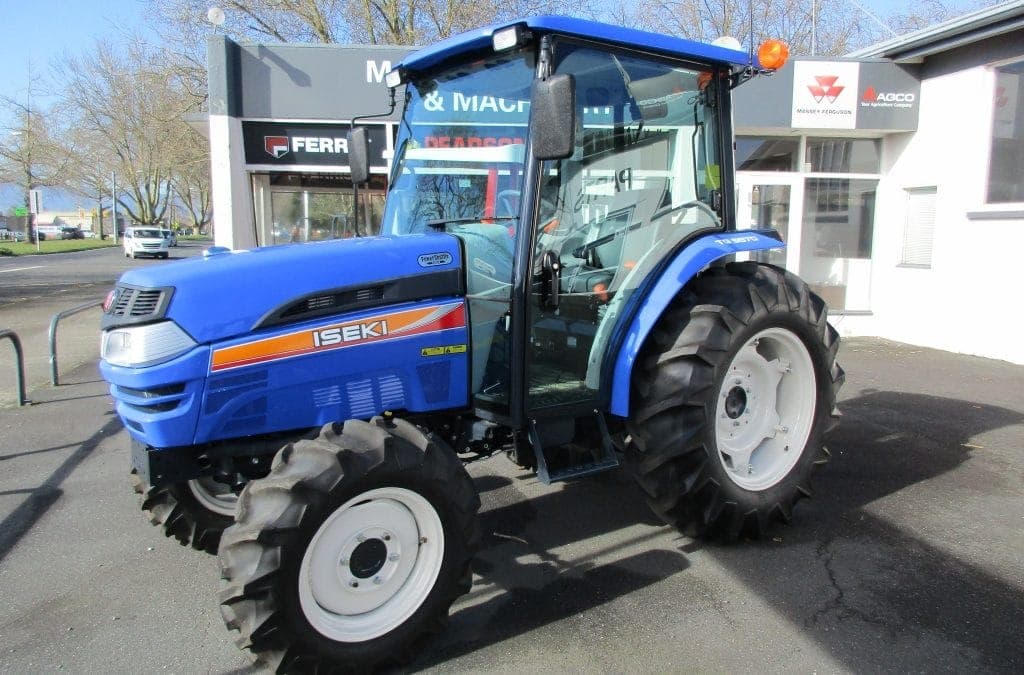

The Iseki TG5570 is a compact utility tractor known for its robustness and versatility. It comes equipped with a powerful Iseki E4DE diesel engine which delivers 60 horsepower, making it suitable for a variety of tasks from farming to landscaping. The liquid-cooled 4-cylinder engine ensures efficient operations with an optimal performance at a rated RPM of 2600. Its power shuttle transmission features 12 forward and reverse gears, offering flexibility and ease of use during different types of work. The tractor has a four-wheel-drive (4x4 MFWD 4WD) system that enhances traction on different terrains. Power steering contributes to the handling efficiency, especially when operating with heavy loads or navigating in tight spaces. With a wheelbase of 70.7 inches and a width of 66.1 inches, the TG5570 is designed for stability. It stands 91.7 inches tall with ROPS and has an operating weight of up to 4442 lbs when fitted with a cab. Category 3 hitch with rear positioning allows the tractor to work with a wide range of implements.
Show more...

Key Specifications

Category: Utility

Power Output: 60

Transmission: Power shuttle

Drive Type: 4WD

Operating Weight: 4442

Fuel Type: Diesel

Iseki TG5570 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.
Operating Weight
Average
Greater than 40% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E4DE
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
180
Bore (in)
3.82
Stroke (in)
3.94
Rated RPM
2600
Power Output (hp)
60

Transmission

Type
Power shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
-
Width (in)
66.1
Height (in)
91.7
Operating Weight (lb)
4442

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
