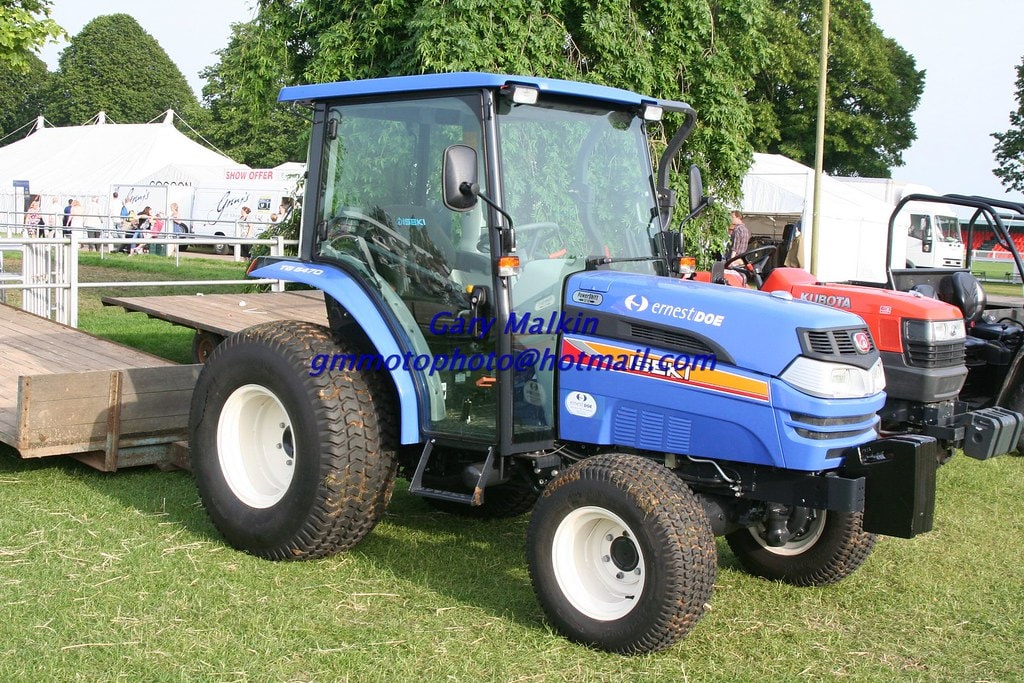

Iseki TG5470

Last Updated: June 2024

Overview

The Iseki TG5470 is a compact utility tractor known for its versatility and efficiency in a variety of tasks. Equipped with a 45.4 horsepower Iseki E4CG diesel engine, the tractor provides sufficient power in a compact frame for various agricultural and landscaping work. The liquid-cooled, 4-cylinder engine ensures reliable performance with a displacement of 134.1 cubic inches and a rated speed of 2800 RPM. Its hydrostatic power steering facilitates easy maneuvering, while the tractor's 4x2 2WD chassis supports the standard agricultural and available lawn/turf tire options. It offers a 12-speed power shuttle transmission, giving users flexibility in speed and power distribution for forward and reverse gears. The TG5470 boasts a dry element air cleaner, 21.8:1 compression ratio, and an electric starter system. Measuring 135.8 inches in length, 61.4 inches in width, and 109.1 inches in height, the tractor has an operating weight of 3527 pounds, which underpins its stability and durability. Ground clearance of 15.8 inches allows for sufficient clearance for various terrains. The rear Category I hitch supports various implements, enhancing the tractor's utility.
Show more...

Key Specifications

Category: Utility

Power Output: 45.4

Transmission: Power shuttle

Drive Type: 2WD

Operating Weight: 3527

Fuel Type: Diesel

Iseki TG5470 vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Average
Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E4CG
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
134.1
Bore (in)
3.425
Stroke (in)
3.64
Rated RPM
2800
Power Output (hp)
45.4

Transmission

Type
Power shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
135.8
Width (in)
61.4
Height (in)
109.1
Operating Weight (lb)
3527

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural, Lawn/turf
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
