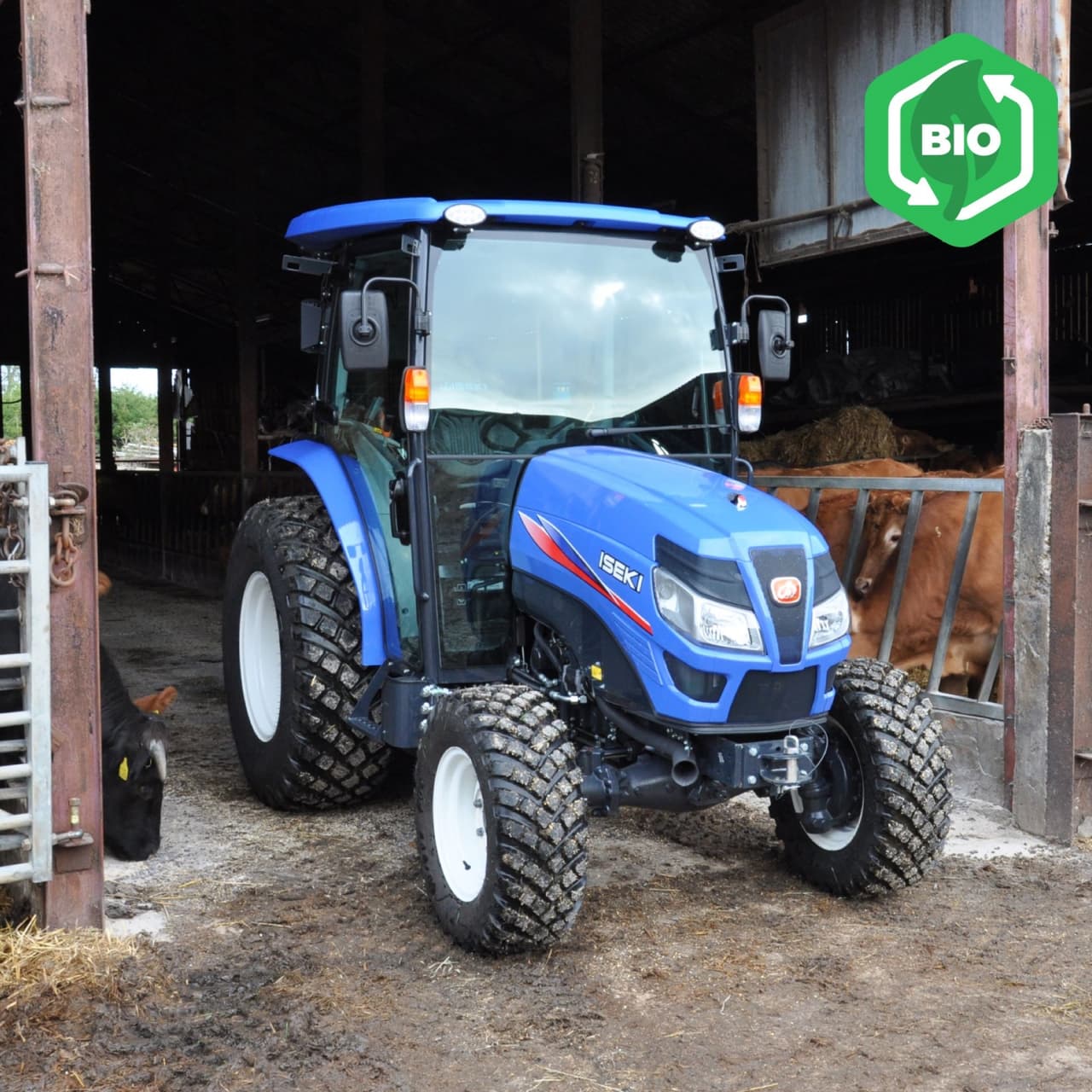

Iseki TG353

Last Updated: June 2024

Overview

The Iseki TG353 is a compact utility tractor that features a 34.5 horsepower diesel engine with a wet disc clutch and a 16-speed transmission. This enhances its performance to handle various tasks around the farm. With a 4-wheel drive chassis, power steering, and liquid-cooling, the TG353 is designed to be a versatile and maneuverable tractor suited for a range of agricultural activities. The tractor comprises a weight range from 3792 to 4178 pounds, indicating options with a Rollover Protection System (ROPS) or a cabin. This compact utility tractor comes with a power output of 34.5 hp and an engine RPM of 2500. With its four-cylinder 121.9 cubic inch engine, the TG353 is well-suited for those who need a reliable mid-size tractor for utility work.
Show more...

Key Specifications

Category: Utility

Power Output: 34.5

Drive Type: 4WD

Operating Weight: 3792 to 4178

Fuel Type: Diesel

Iseki TG353 vs. Similar Tractors

Power Output
Below Average
Greater than 30% of similar tractors.
Operating Weight
Above Average
Greater than 86% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E4CD
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
121.9
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
34.5

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
32

Dimensions

Length (in)
139.4
Width (in)
60
Height (in)
91.3
Operating Weight (lb)
3792 to 4178

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
26
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS or Cab available
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
