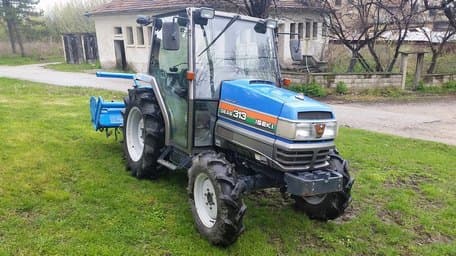

Iseki TG313

Last Updated: June 2024

Overview

The Iseki TG313 is a compact utility tractor equipped with a powerful Iseki E3CD diesel engine. This engine delivers 30.6 horsepower and operates at 2800 rated RPM, providing adequate power for a variety of tasks. The tractor offers a four-wheel drive chassis with mechanical front wheel drive (MFWD) for improved traction and performance in difficult conditions. The TG313 features power steering for ease of control and maneuverability. It comes with a 16-speed transmission, which includes an equal number of forward and reverse gears, ensuring flexibility and efficiency in various operations. The liquid-cooled engine has a displacement of 91.4 cubic inches, but other detailed engine specifications like bore and stroke measurements are not provided. The tractor's operating weight varies between 2910 lbs with ROPS and 3263 lbs when equipped with a cab, indicating a robust and stable base for a variety of tasks. Although specific figures for certain specs like PTO speed and hydraulic system type are not available, the Iseki TG313's specifications illustrate a capable and reliable tractor for small farms, estates, and specialty applications.
Show more...

Key Specifications

Category: Utility

Power Output: 30.6

Drive Type: MFWD (Mechanical Front Wheel Drive)

Operating Weight: ROPS: 2910, Cab: 3263

Fuel Type: Diesel

Iseki TG313 vs. Similar Tractors

Power Output
Below Average
Greater than 26% of similar tractors.
Operating Weight
Below Average
Greater than 24% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3CD
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
91.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2800
Power Output (hp)
30.6

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
124
Width (in)
56.1
Height (in)
77.4
Operating Weight (lb)
ROPS: 2910, Cab: 3263

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD (Mechanical Front Wheel Drive)
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
Front: Unknown, Rear: 24
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
