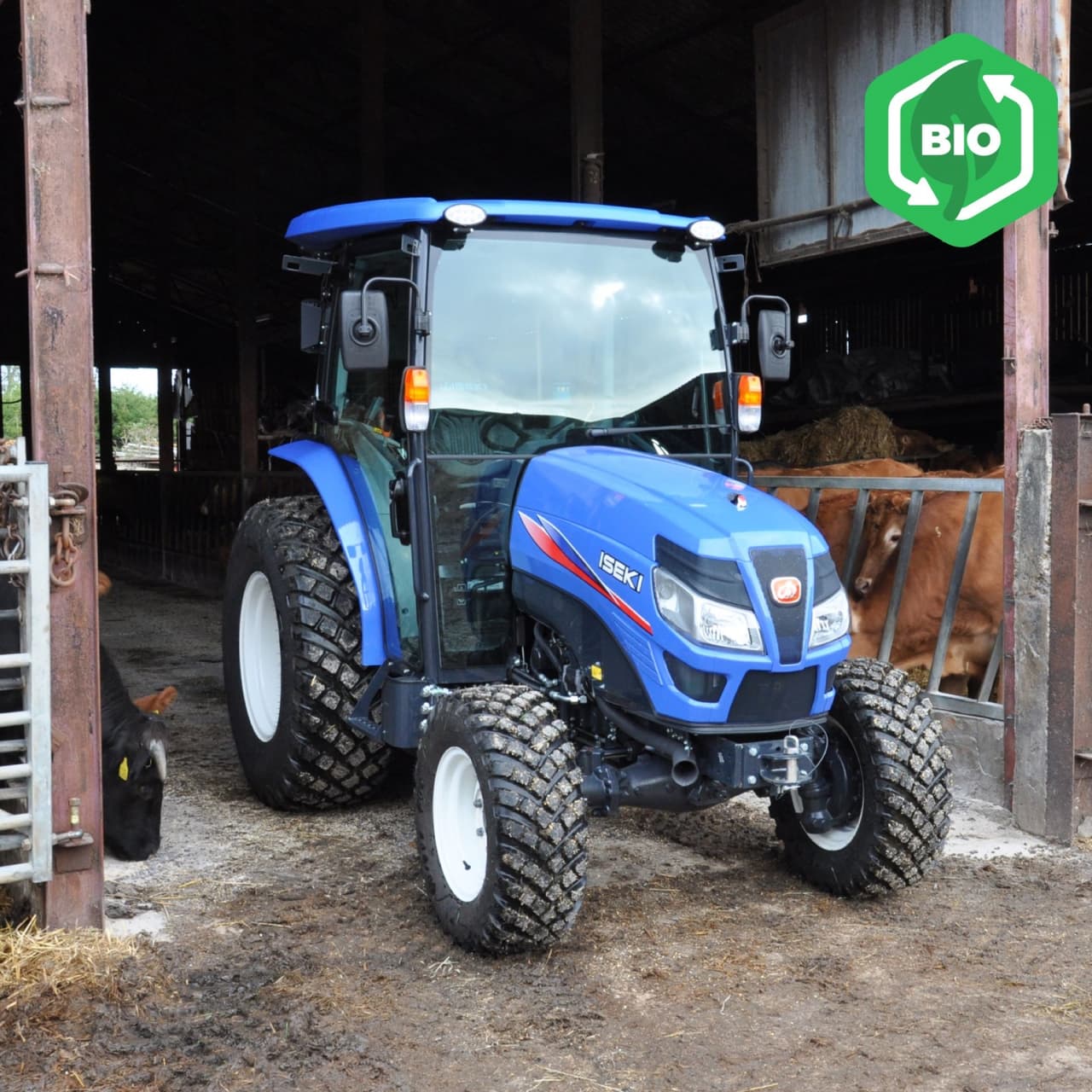

Iseki TG273

Last Updated: June 2024

Overview

The Iseki TG273 is powered by the Iseki E3CD diesel engine that delivers up to 26.7 horsepower with a displacement of 91.4 cubic inches and operates at a rated RPM of 2600. It can run with 16 forward and reverse gears, making it versatile for a variety of tasks. Built to handle variable loads, the TG273 offers a weight range from 2789 lbs when equipped with ROPS to 3142 lbs when outfitted with a cab. The tractor supports a Category I hitch type but other detailed specifications of the hitch, including lift capacity and position, are not specified. This tractor comes with standard agricultural tires, with a larger rear tire size of 11.2-24 inches. With a wheelbase of 66.5 inches and an overall length of 120.9 inches, the TG273 provides a stable platform for a variety of jobs. It presents decent ground clearance at 14.6 inches, allowing it to perform well in uneven terrain. This tractor model, with its liquid-cooled engine and electric starter, is designed for enhanced performance, durability, and comfort with either ROPS or cab options for the operator. Further details regarding the steering type, chassis, drive type, and accessory features are not provided and require additional resources for a complete overview.
Show more...

Key Specifications

Power Output: 26.7

Operating Weight: 2789 (ROPS) | 3142 (Cab)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3CD
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
91.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
26.7

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
120.9
Width (in)
Cab Width: 55.5 | ROPS Width: 53.7
Height (in)
78.2
Operating Weight (lb)
2789 (ROPS) | 3142 (Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
11.2
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS or Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
