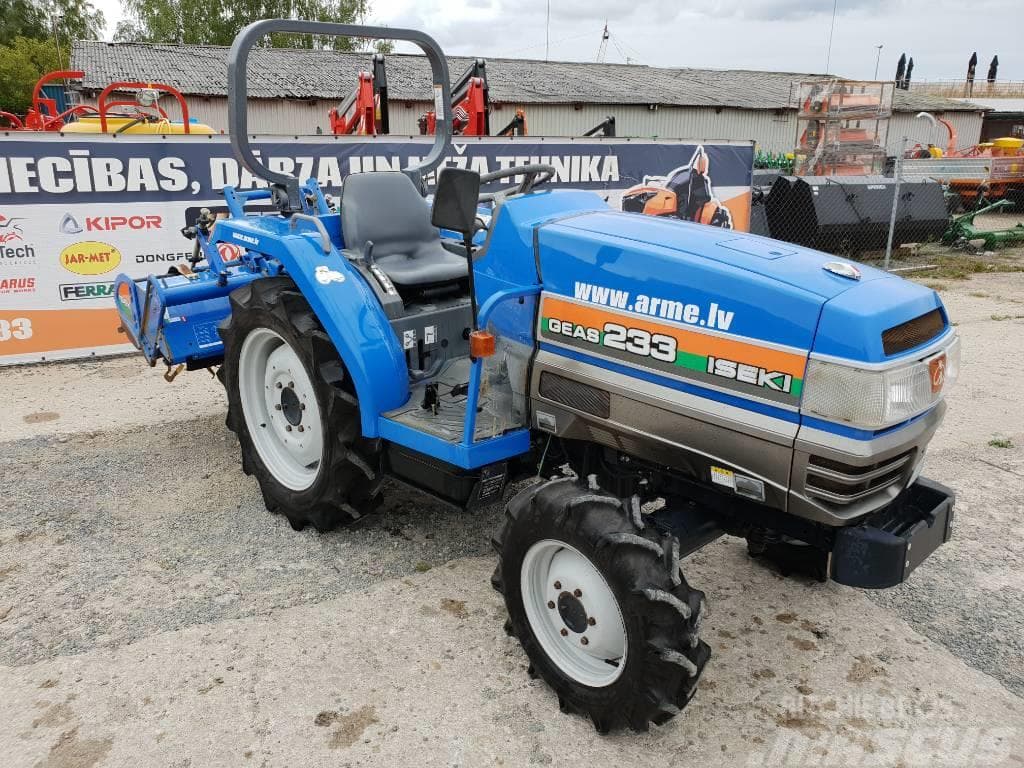

Iseki TG233

Last Updated: June 2024

Overview

The Iseki TG233 is a compact utility tractor well-suited for a variety of tasks on small farms and estates. With a liquid-cooled 22.7 horsepower engine that operates at a rated RPM of 2500 and a dual dry disc clutch supporting a 16-speed transmission, this tractor offers both flexibility and power in a relatively small package. The TG233 features a four-wheel drive MFWD 4WD chassis, enhanced by power steering for ease of maneuverability and operation. Its versatility is reflected in its multiple capabilities, such as an electric starter for hassle-free ignition and the potential for either a ROPS or a cab operator station, indicating a focus on operator safety and comfort. The tractor's robust build allows for a weight range between 2646 lbs when outfitted with a ROPS and 2998 lbs when configured with a cab. With standard agricultural tires, a substantial wheelbase of 61.4 inches, and notable ground clearance of 12.6 inches, the Iseki TG233 is designed to handle varying terrain with relative ease.
Show more...

Key Specifications

Category: Utility

Power Output: 22.7

Drive Type: 4WD

Operating Weight: 2646 (ROPS), 2998 (Cab)

Fuel Type: Diesel

Iseki TG233 vs. Similar Tractors

Power Output
Below Average
Greater than 13% of similar tractors.
Operating Weight
Below Average
Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3CF
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration (assumed due to lack of forced induction data)
Cylinders
3
Displacement (ci)
89.3
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
22.7

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
32

Dimensions

Length (in)
116.9
Width (in)
52.4 (ROPS), 55.5 (Cab)
Height (in)
76.4
Operating Weight (lb)
2646 (ROPS), 2998 (Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Rear Type I
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS (Roll Over Protection Structure)/Cab (assumed since both ROPS and Cab widths are provided)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
