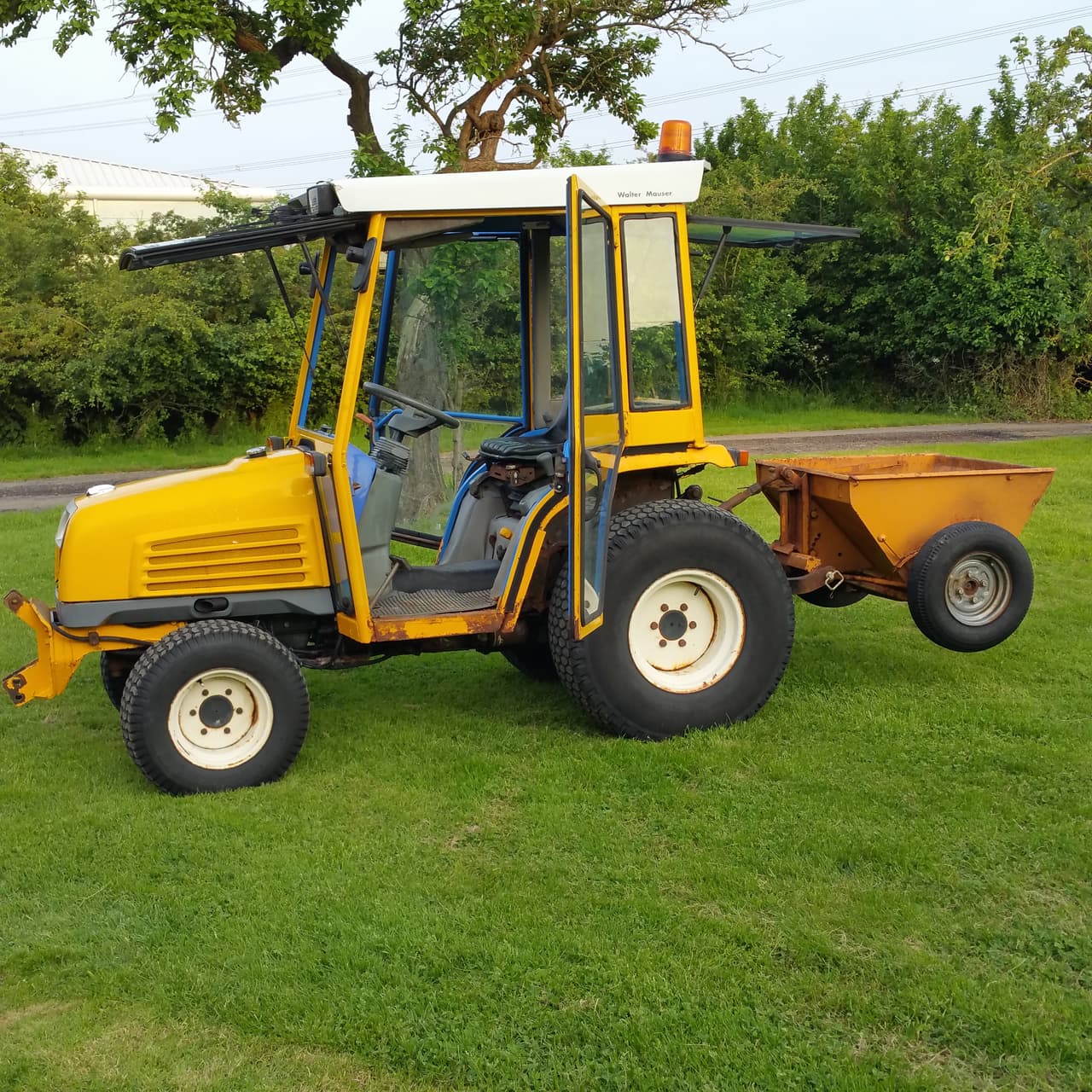

Iseki TF330

Last Updated: June 2024

Overview

The Iseki TF330 is a compact utility tractor known for its 4x4 MFWD 4WD (four-wheel drive) chassis, ensuring better traction and performance in a variety of ground conditions. It’s powered by a 29.5 hp Iseki E3CD diesel engine with a liquid-cooling system to maintain optimal engine temperature. The hydrostatic transmission with infinite (3-range) forward and reverse gears offers versatile speed selection and smooth operation. With power assist steering, this tractor provides ease of maneuverability. It has an operating weight of 1940 lbs and offers different tire options for agricultural or lawn and turf purposes. This model's dimensions reveal a length of 116.5 inches, a width of 55.6 inches, and varying heights dependent on the presence of the ROPS or the steering wheel alone. The engine's power output at a rated 2500 RPM and a displacement of 91.4 cubic inches underline its capability for the designated compact utility tasks it is designed to perform.
Show more...

Key Specifications

Category: Utility

Power Output: 29.5

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 1940

Fuel Type: Diesel

Iseki TF330 vs. Similar Tractors

Power Output
Below Average
Greater than 23% of similar tractors.
Operating Weight
Below Average
Greater than 16% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3CD
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
91.4
Bore (in)
3.425
Stroke (in)
3.31
Rated RPM
2500
Power Output (hp)
29.5

Transmission

Type
Hydrostatic
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
-

Dimensions

Length (in)
116.5
Width (in)
55.6
Height (in)
Height (steering wheel): 54 | Height (ROPS): 91.1
Operating Weight (lb)
1940

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power assist
Coolant Capacity (qts)
7.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
I
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
