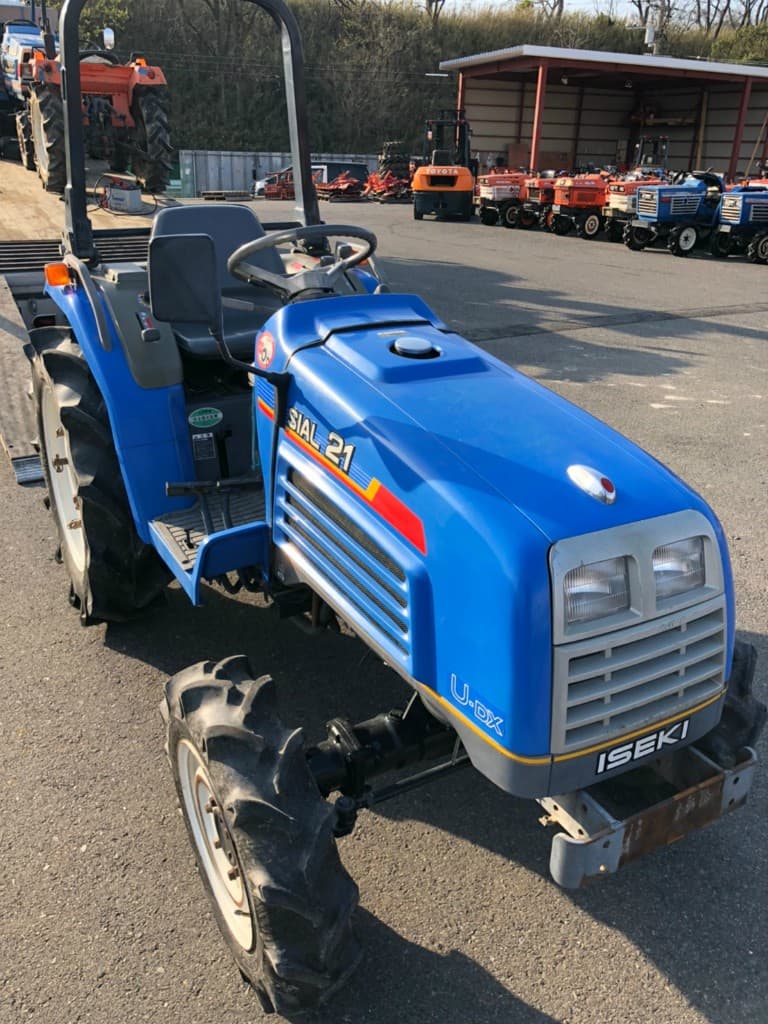

Iseki TF21F

Last Updated: June 2024

Overview

The Iseki TF21F is a compact utility tractor suited for small-scale farming, landscaping, and other utility tasks. It features a 4x4 MFWD 4WD chassis which aids in providing traction on various types of terrain. The tractor is equipped with a manual 9-speed transmission and a 20.7 horse-power, liquid-cooled, diesel engine produced by Iseki, model E3CE. The TF21F's engine operates at a rated RPM of 2500 and has a displacement of 87.2 cubic inches. For operator comfort and convenience, the tractor comes with an electric starter system. Weighing in at 1918 lbs, this tractor offers a substantial base for its size range and ensures stability in operation. With a length of 109.8 inches, a width of 45.3 inches, and a height of 76.4 inches, the TF21F has a compact footprint, allowing for ease of movement in tighter spaces. Further specifications such as cooling system capacity, precise tire sizes, PTO speeds, and hitch capabilities are not provided but are required for complete operational understanding. For specified tasks that match its capability range, the Iseki TF21F offers reliable performance.
Show more...

Key Specifications

Category: Utility

Power Output: 20.7

Transmission: Manual

Drive Type: 4WD

Operating Weight: 1918

Fuel Type: Diesel

Iseki TF21F vs. Similar Tractors

Power Output
Below Average
Greater than 10% of similar tractors.
Operating Weight
Below Average
Greater than 15% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3CE
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
3
Displacement (ci)
87.2
Bore (in)
3.35
Stroke (in)
3.31
Rated RPM
2500
Power Output (hp)
20.7

Transmission

Type
Manual
Forward Gears
9
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
109.8
Width (in)
45.3
Height (in)
76.4
Operating Weight (lb)
1918

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
