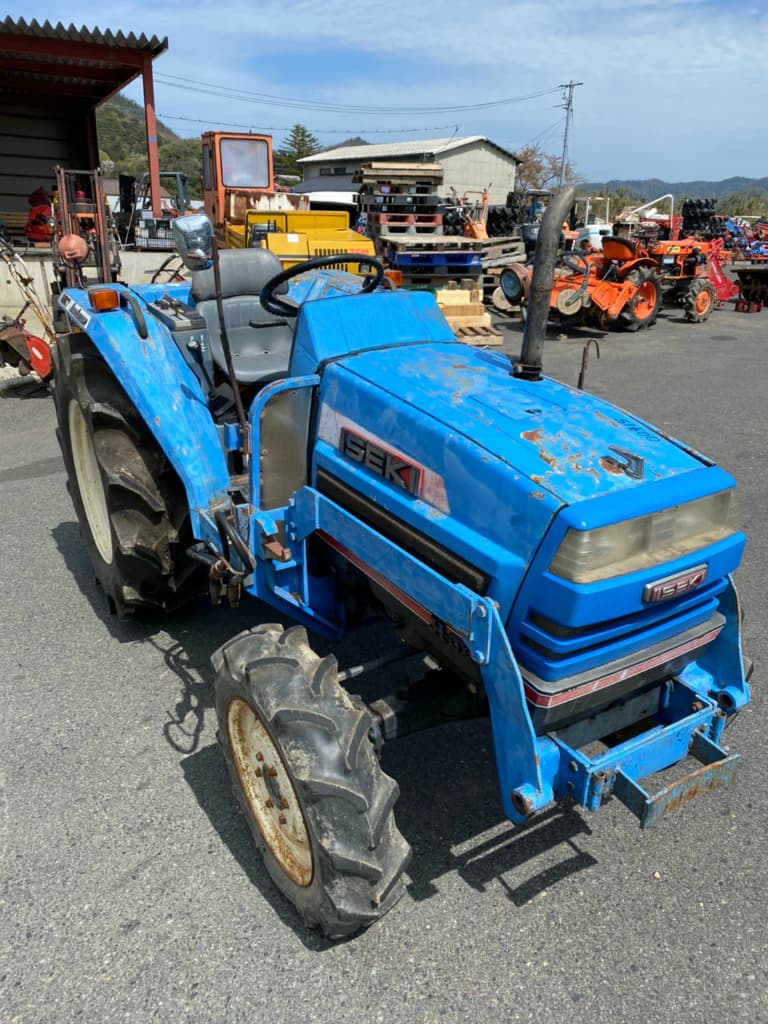

Iseki TA607

Last Updated: June 2024

Overview

The Iseki TA607 is a tractor designed for various agricultural tasks. It is equipped with a robust Isuzu 4JB1T turbocharged diesel engine that offers a power output of 59.2 horsepower and 169.1 cubic inches of displacement. The 4-cylinder engine operates at a rated RPM of 2500 and uses a liquid-cooling system to maintain optimal operating temperatures. This tractor has a substantial operating weight of 4807 pounds, which signifies a sturdy structure capable of handling considerable loads and applications. The wheelbase is set at 79.9 inches, contributing to its stability during use. It stands 94.5 inches tall, has a length of 136.6 inches, and a width of 60.8 inches, providing a decently sized workhorse suitable for a variety of field operations. The transmission system features a total of 16 forward and 16 reverse gears, though further details about the transmission type and specific features remain unclear. It sports standard agricultural tires with a front configuration of 8.3-20 and a rear configuration of 12.4-32, promising good traction and field performance. With its ample dimensions, the tractor also provides a ground clearance of 14.6 inches, allowing for easy maneuverability over different terrains. The TA607's hitch system follows a Category 3 classification and is positioned at the rear, but its lift capacity is not specified. Details regarding the hydraulics, brakes, and PTO system of this tractor are not provided, leaving those aspects for potential operators to investigate further.
Show more...

Key Specifications

Power Output: 59.2

Operating Weight: 4807

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Isuzu
Model
4JB1T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
169.1
Bore (in)
3.661
Stroke (in)
4.016
Rated RPM
2500
Power Output (hp)
59.2

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
136.6
Width (in)
60.8
Height (in)
94.5
Operating Weight (lb)
4807

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
