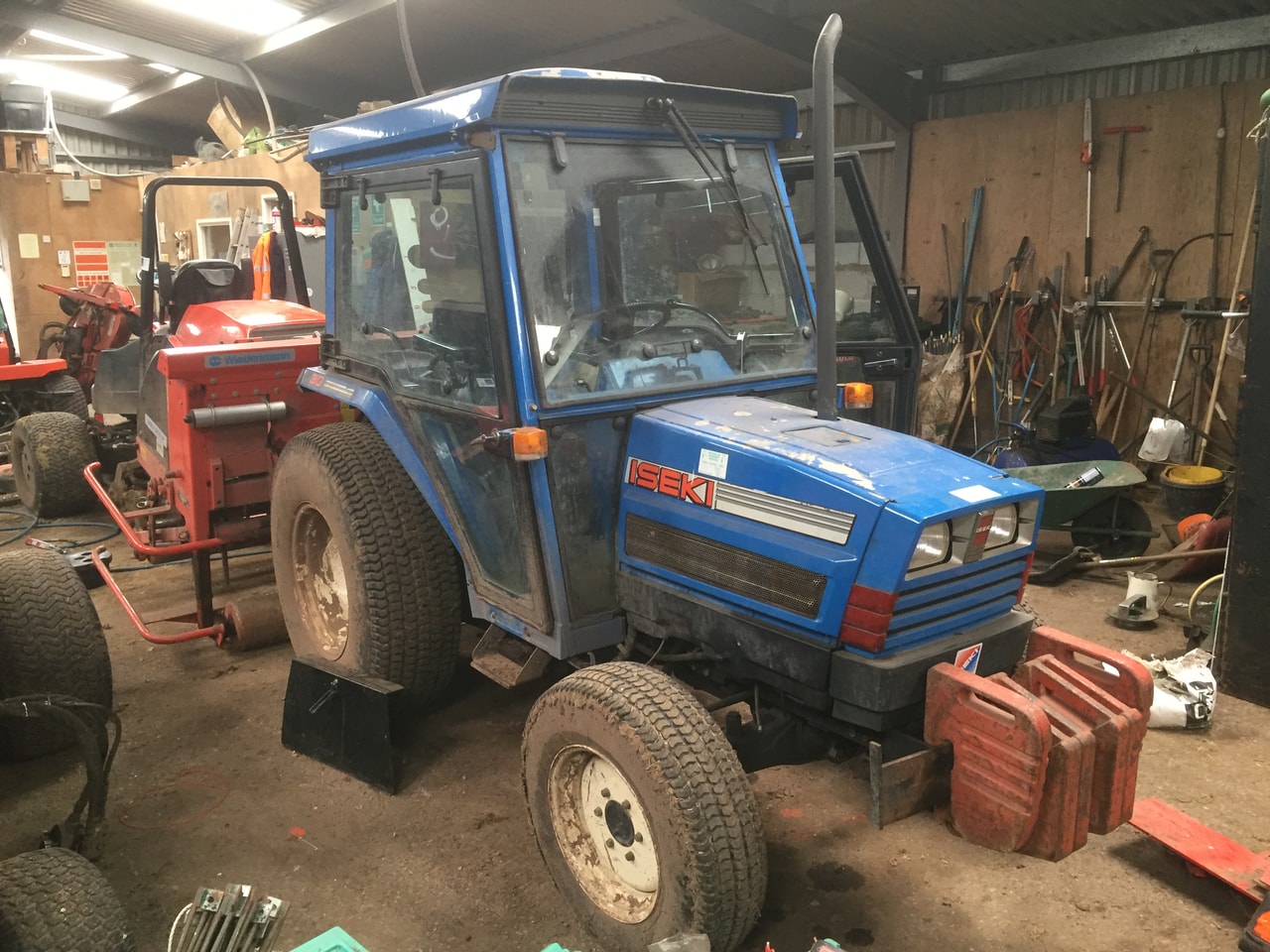

Iseki TA530

Last Updated: September 2024

Overview

The Iseki TA530 is a compact utility tractor built for various farm tasks. It has a 4-wheel drive system and power steering, making it easy to handle in different conditions. The tractor uses a manual transmission with 6 forward gears and 2 reverse gears, giving the driver good control over speed and power.

Under the hood, the TA530 has a 3-cylinder diesel engine made by Iseki. The engine is liquid-cooled and naturally aspirated, producing 30 horsepower. It has a below-average displacement of 91.4 cubic inches but runs at a high speed of 2600 RPM. The tractor is quite light, weighing 2557 pounds, which helps it move easily on soft ground. It's also compact, measuring 120.5 inches long, 53.4 inches wide, and 58.9 inches tall. The TA530 comes with agricultural tires and a Category 1 hitch, making it suitable for attaching various farm tools.
Show more...

Key Specifications

Category: Utility

Power Output: 30 hp (22.4 kW)

Transmission: Manual

Drive Type: 4WD

Operating Weight: 2557 lb (1160 kg)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3AD1
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement
91 ci (1.5 L)
Bore
3.39 in (86.0 mm)
Stroke
3.39 in (86.0 mm)
Rated RPM
2600
Power Output
30 hp (22.4 kW)

Transmission

Type
Manual
Forward Gears
6
Reverse Gears
2

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
