Iseki TA450

Last Updated: June 2024

Overview

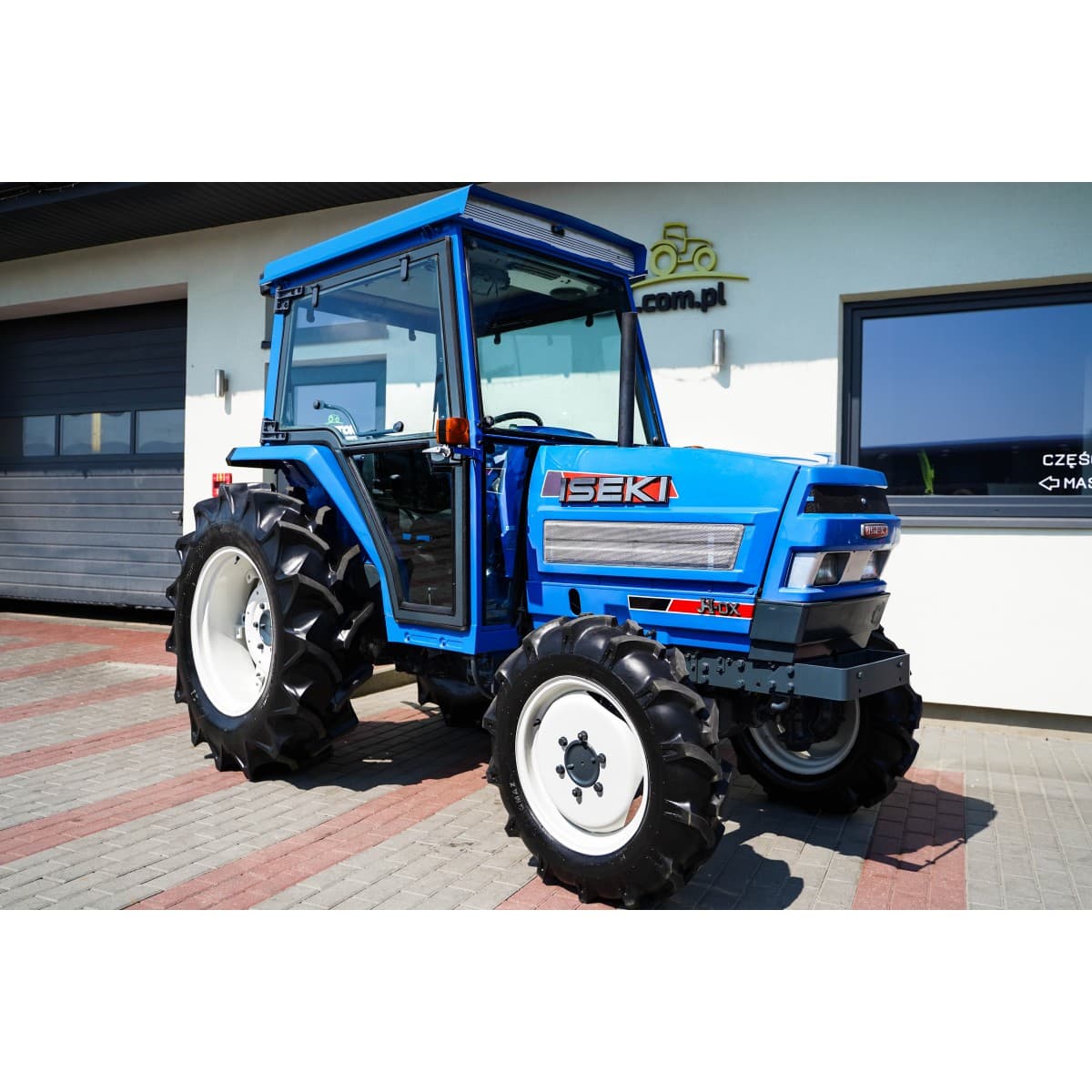

The Iseki TA450 is a versatile tractor, capable of accommodating both 2-wheel drive and 4-wheel drive configurations. It features an Isuzu 4JA1 diesel engine with a liquid-cooling system and a displacement of 152.5 cubic inches, producing 50.3 horsepower. This tractor operates with a 2500 RPM rated engine and utilizes an electric starter system with 12 volts. The TA450 boasts a well-built structure with a wheelbase of 77.6 inches and a weight ranging from 3869 pounds in the 2WD variant to 4310 pounds in the 4WD variant. It has been engineered with 16 forward and reverse gears, but the type of transmission is unspecified. This tractor is designed with a wheelbase that provides substantial ground clearance of 15.4 inches, engaging well with standard agricultural tires. Its body measurements reflect a commitment to stability and maneuverability with a length of 134.3 inches, width of 60.8 inches, and height of 87.8 inches. The tire sizes are different for the 2WD and 4WD models, with the larger front tires on the 4WD providing additional traction and stability.
Show more...

Key Specifications

Power Output: 50.3

Drive Type: 4WD/2WD

Operating Weight: 3869 (2WD) / 4310 (4WD)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Isuzu
Model
4JA1
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
152.5
Bore (in)
3.66
Stroke (in)
3.62
Rated RPM
2500
Power Output (hp)
50.3

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
134.3
Width (in)
60.8
Height (in)
87.8
Operating Weight (lb)
3869 (2WD) / 4310 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD/2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
JIS1
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
