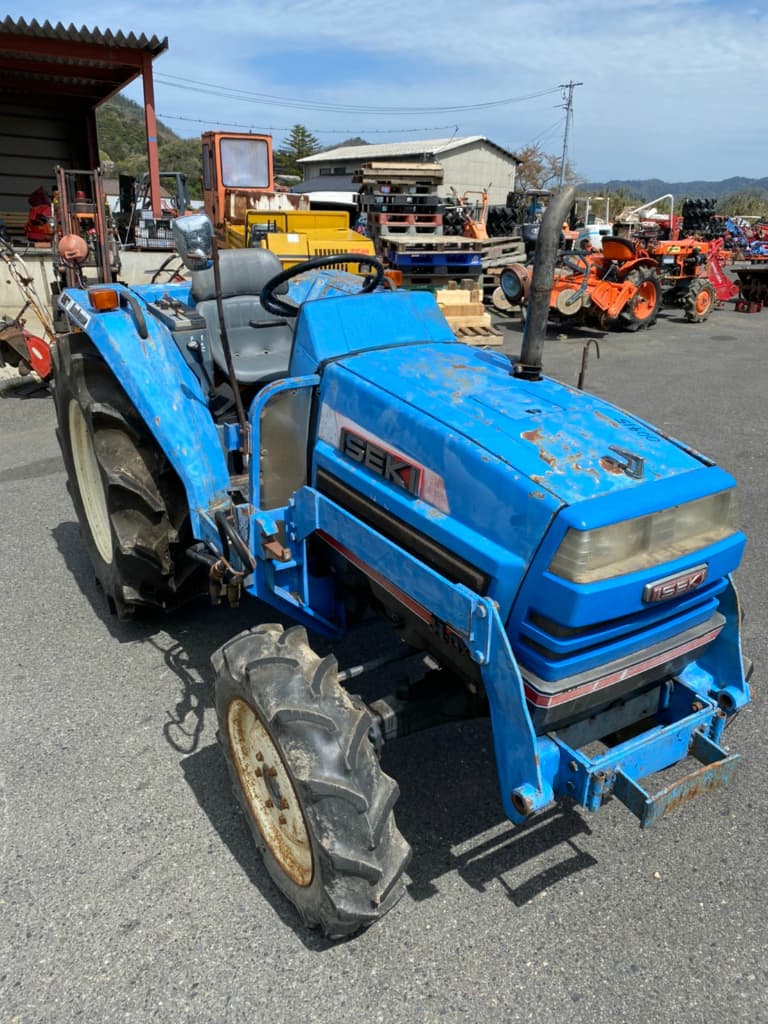

Iseki TA370

Last Updated: June 2024

Overview

The Iseki TA370 is a versatile tractor that comes in both 4WD and 2WD configurations. It is powered by an Isuzu 4FC1 four-cylinder diesel engine with a displacement of 121.7 cubic inches, delivering 37 horsepower at 2600 RPM. With a cooling system relying on liquid to maintain optimal temperatures, this tractor is equipped to handle a variety of tasks without overheating. Users can benefit from its relatively high ground clearance of 14.2 inches and a wheelbase of 73.3 inches which provides stability during operation. The TA370 features a substantial gearbox, boasting 16 forward and reverse gears, catering to different working conditions and speeds. The robust design includes an electric starter system which reliably kicks off the engine. The tractor's dimensions are substantial, with an overall length of 128.7 inches, a width of 60 inches, and a height of either 76.4 inches for the 4WD model or 75.6 inches for the 2WD version. The weight of the tractor varies between 3153 pounds for the 2WD model to 3439 pounds for the 4WD. Equipped with a rear hitch type JIS1, the Iseki TA370 is ready for various attachments, although its lift capacity is not specified in the details provided. Its tire setup is built for agricultural purposes, adhering to the standard tire dimensions for its class.
Show more...

Key Specifications

Power Output: 37

Drive Type: 4WD/2WD

Operating Weight: 3439 (4WD) / 3153 (2WD)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Isuzu
Model
4FC1
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
121.7
Bore (in)
3.31
Stroke (in)
3.54
Rated RPM
2600
Power Output (hp)
37

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
128.7
Width (in)
60
Height (in)
76.4 (4WD) / 75.6 (2WD)
Operating Weight (lb)
3439 (4WD) / 3153 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD/2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
JIS1
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
