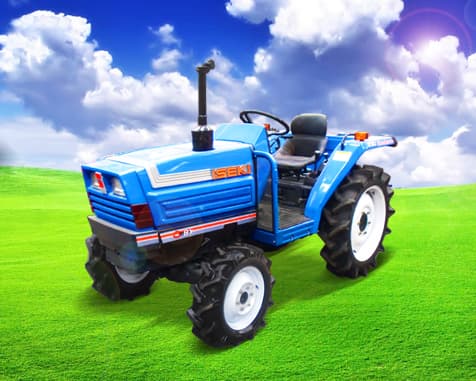

Iseki TA230

Last Updated: June 2024

Overview

The Iseki TA230 is a versatile tractor, available in both 2WD and 4WD configurations. This model is powered by an Isuzu E3AG1 diesel engine with a displacement of 87.2 cubic inches, delivering 23 horsepower at 2500 RPM. The engine supports a liquid cooling system to maintain optimal temperatures during prolonged periods of work. The transmission system, which specifics are not provided, offers a substantial number of gears, with 16 forward and 16 reverse speeds, permitting a variety of working paces and maneuverability options. The tractor rides on standard agricultural tires and has a wheelbase of 63.6 inches. It has a noticeable ground clearance of 11 inches, with operating weights of 2249 pounds for the 2WD and 2480 pounds for the 4WD variant, contributing to its stability and traction in different terrain conditions. The TA230 includes a rear-positioned Category 1 hitch, commonly used for a variety of implements in farming and maintenance tasks.
Show more...

Key Specifications

Power Output: 23

Drive Type: 2WD/4WD

Operating Weight: 2249 (2WD) / 2480 (4WD)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Isuzu
Model
E3AG1
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
3
Displacement (ci)
87.2
Bore (in)
3.307
Stroke (in)
3.385
Rated RPM
2500
Power Output (hp)
23

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
117.3
Width (in)
49.2
Height (in)
75
Operating Weight (lb)
2249 (2WD) / 2480 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
2WD/4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
JIS1
Hitch Category
Category 1
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
