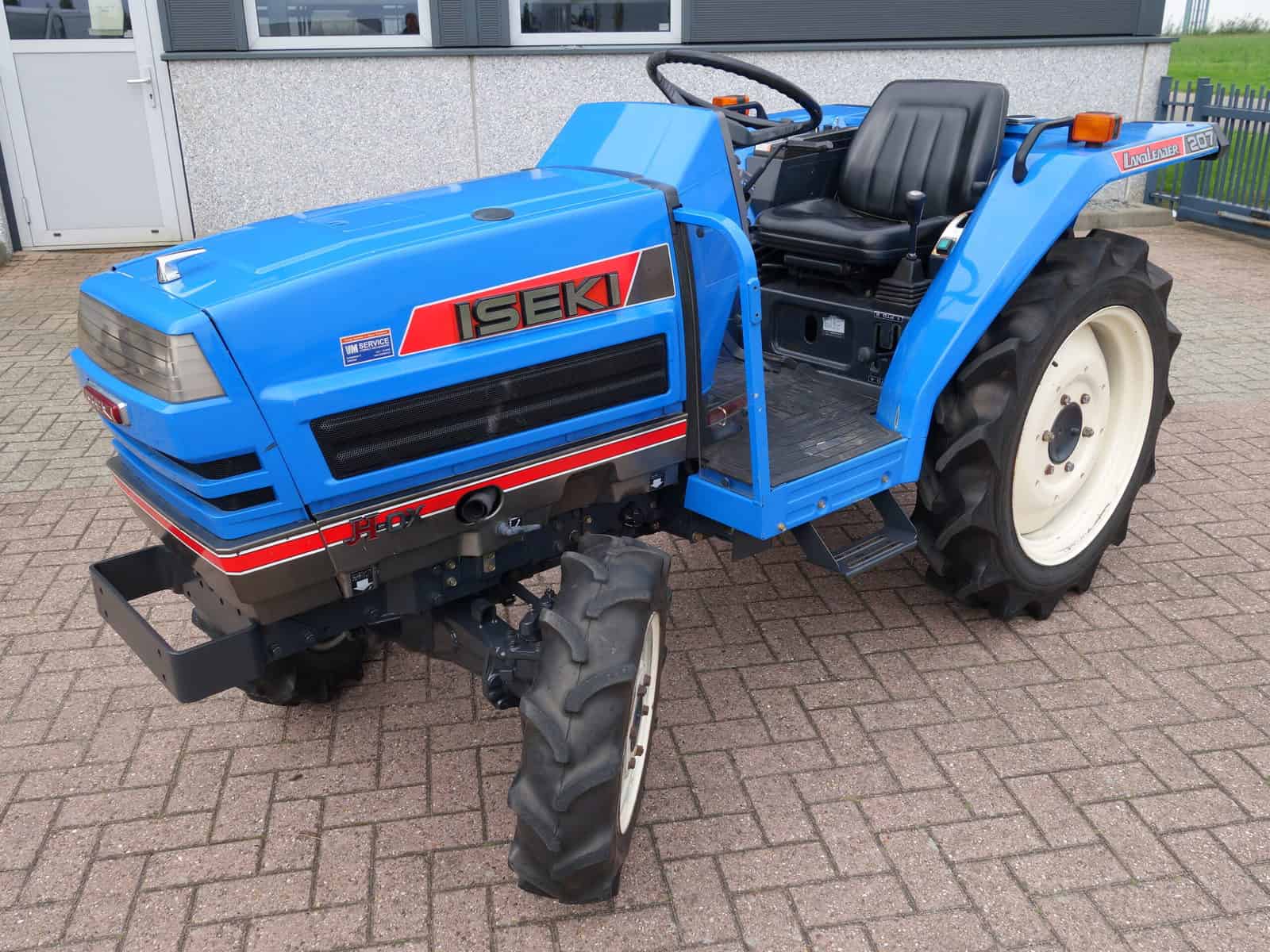

Iseki TA207

Last Updated: June 2024

Overview

The Iseki TA207 is a versatile tractor, renowned for its utility in a variety of agricultural tasks. It is manufactured by Iseki, a Japanese company with a heritage of creating reliable farm equipment. This particular model features a robust three-cylinder, Iseki E3AG1 diesel engine that offers a reasonable 19.7 horsepower output, which is enough power for tackling day-to-day tasks on the farm. The engine operates at a rated RPM of 2500 and is liquid-cooled, ensuring sustained performance during prolonged work periods. With an electric starter system, the tractor starts reliably, with a 12-volt system that ensures quick ignition even in colder weather. Covering both 2WD and 4WD variants, this tractor offers flexibility in operation, tackling various terrain challenges. The TA207 has a significant gearing system with 16 forward and reverse gears, hinting towards a versatile transmission setup designed to provide optimal control for different farming tasks. With a wheelbase of 60.6 inches and an operating weight that ranges from 2189 to 2862 pounds, the TA207 has a sturdy and well-balanced build. The tractor’s dimensions, including a length of 114.4 inches and a width of 49.2 inches, suggest that it is compact enough for maneuverability but large enough for stability.
Show more...

Key Specifications

Category: Utility

Power Output: 19.7

Drive Type: 2WD/4WD

Operating Weight: 2189-2862

Fuel Type: Diesel

Iseki TA207 vs. Similar Tractors

Power Output
Poor
Greater than 9% of similar tractors.
Operating Weight
Above Average
Greater than 82% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3AG1
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
87.2
Bore (in)
3.307
Stroke (in)
3.385
Rated RPM
2500
Power Output (hp)
19.7

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
114.4
Width (in)
49.2
Height (in)
54.9 (steering wheel), 76.6 (cab)
Operating Weight (lb)
2189-2862

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
2WD/4WD
Steering Type
-
Coolant Capacity (qts)
5.1
Front Tire Diameter (in)
15 (for 2WD), unknown for 4WD
Front Tire Width (in)
4.00 (for 2WD), unknown for 4WD
Rear Tire Diameter (in)
24
Rear Tire Width (in)
8.3
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open/Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
