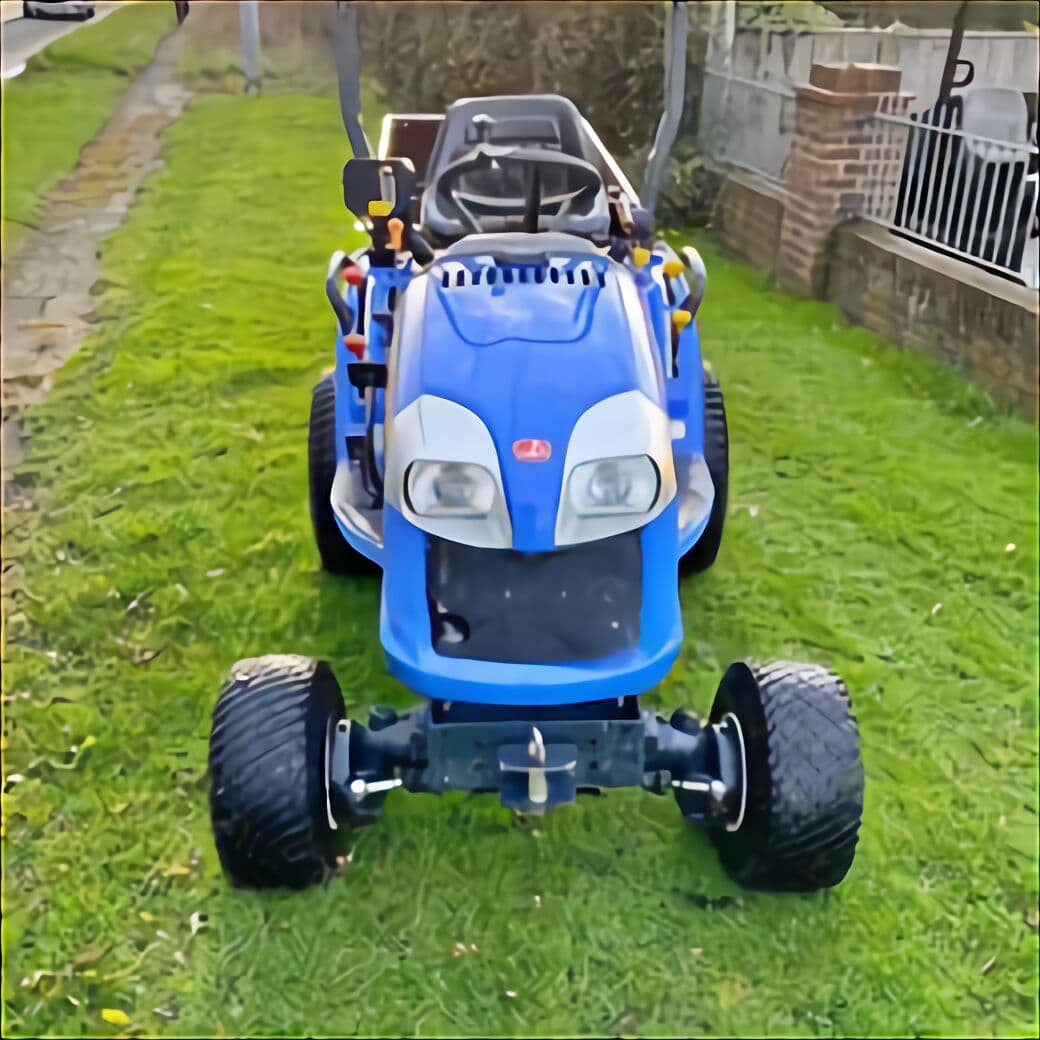

Iseki AT500

Last Updated: September 2024

Overview

The Iseki AT500 is a versatile utility tractor designed for various farming tasks. It features a powerful 4-cylinder diesel engine that produces 49.4 hp, which is about average for tractors in its class. The engine has a displacement of 180.3 cubic inches and runs at 2500 rpm, offering good performance for everyday farm work.

This tractor comes with a 4-wheel drive system and power steering, making it easy to handle in different conditions. It has a 48-gear transmission, with 24 forward and 24 reverse gears, giving the operator plenty of options for different jobs. The Iseki AT500 is equipped with a three-point hitch at the rear, which is useful for attaching various implements. It has agricultural tires on both front and back, suitable for farm use. The tractor measures 139.8 inches long and 62.2 inches wide, with a wheelbase of 77.6 inches, making it compact enough for many farm applications while still offering good stability.
Show more...

Key Specifications

Category: Utility

Power Output: 49 hp (36.8 kW)

Drive Type: 4WD

Fuel Type: Diesel

Iseki AT500 vs. Similar Tractors

Power Output

The Power Output for the Iseki AT500 is Average. It is greater than 48% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Iseki AT500 is Average. It is greater than 53% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Iseki AT500 is Average. It is greater than 61% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Iseki
Model
E4DE
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement
180 ci (3.0 L)
Bore
3.82 in (97.0 mm)
Stroke
3.94 in (100.1 mm)
Rated RPM
2500
Power Output
49 hp (36.8 kW)

Transmission

Forward Gears
24
Reverse Gears
24
Total Gears
48

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
