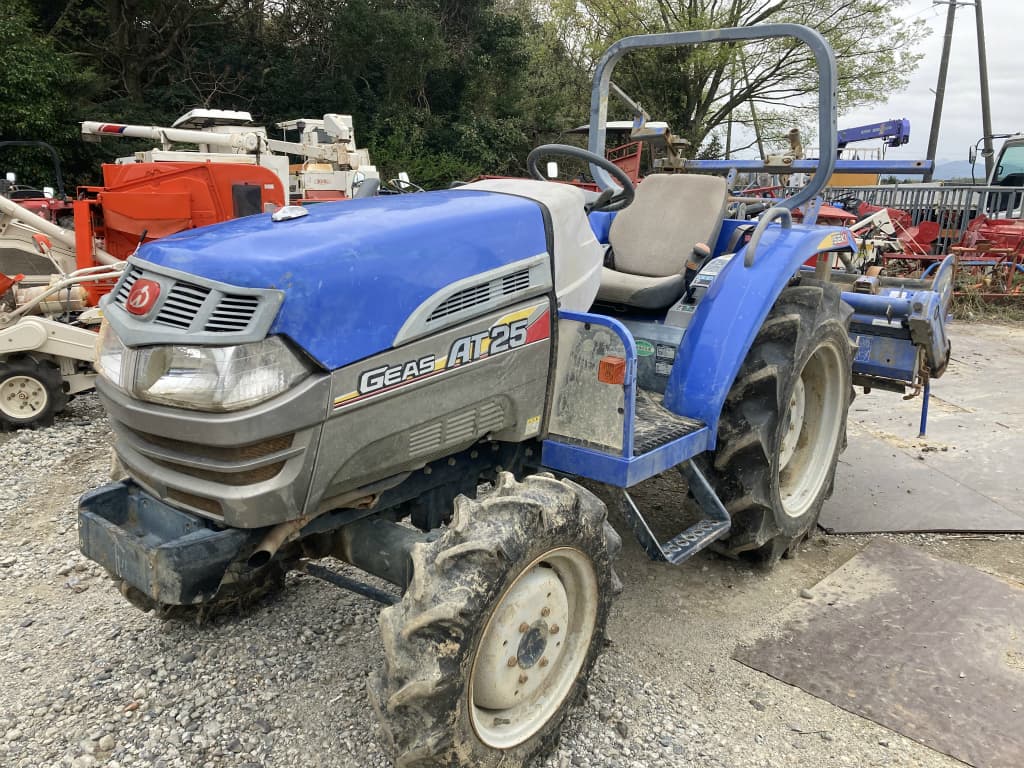

Iseki AT25

Last Updated: June 2024

Overview

The Iseki AT25 is a compact utility tractor designed for a variety of tasks in both agricultural and domestic settings. Its robust 24.7 horsepower engine, produced by Iseki, is liquid-cooled and runs on diesel fuel. The three-cylinder engine, with a rated RPM of 2500, provides reliable and consistent power. With power steering and a 4x4 MFWD (mechanical front wheel drive) chassis, manoeuvrability is enhanced, particularly beneficial in smaller spaces or varying terrain. This model boasts a 16-speed synchronized gearbox, though conflicting information indicates the potential availability of 24 forward and reverse gears. With a wheelbase of 65.6 inches and operating weights of 2899 lbs without a cab and 3153 lbs with a cab, the AT25 offers a stable and sturdy platform for various operations. Ground clearance sits at 14 inches, aiding in its versatility across different terrains. The tractor's dimensions exemplify a design geared towards utility, with enough heft for stability, yet sized appropriately for agility. Standard agricultural tires are fitted to the tractor, ensuring adequate traction for most farming tasks, yet the exact tire dimensions are not specified.
Show more...

Key Specifications

Category: Utility

Power Output: 24.7

Drive Type: 4WD

Operating Weight: 2899 (ROPS) / 3153 (cab)

Fuel Type: Diesel

Iseki AT25 vs. Similar Tractors

Power Output
Below Average
Greater than 17% of similar tractors.
Operating Weight
Above Average
Greater than 84% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iseki
Model
E3CD
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspiration
Cylinders
3
Displacement (ci)
91.4
Bore (in)
3.425
Stroke (in)
3.31
Rated RPM
2500
Power Output (hp)
24.7

Transmission

Type
-
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
118.5
Width (in)
52.8
Height (in)
78.2
Operating Weight (lb)
2899 (ROPS) / 3153 (cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS (Roll-Over Protective Structure) / Cab available
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
