Iseki AT23

Last Updated: June 2024

Overview

The Iseki AT23 is a compact utility tractor equipped with a 22.7 horsepower, 3-cylinder, liquid-cooled, Iseki E3CD diesel engine. This tractor features a versatile four-wheel-drive chassis with a 4x4 MFWD configuration that enhances its capabilities over different terrains. The AT23's 16-speed transmission offers a commendable range of gears suitable for various tasks, and the power steering provides easier maneuverability. This model has a wheelbase of 64.4 inches and operates with standard agricultural tires, with dimensions of 7-14 in the front and 9.5-24 at the rear. The tractor's physical dimensions include a length of 118.5 inches, a width of 49.8 inches, and a height of 77.8 inches, with the latter applicable to both ROPS and the cab version. It weighs between 2844 and 3097 pounds, depending on whether it is fitted with ROPS or a cab. Overall, the AT23 is designed to be a reliable workhorse suited for a range of utility tasks in a farm setting.

Key Specifications

Category: Utility

Power Output: 22.7

Drive Type: 4WD

Operating Weight: 2844 (ROPS) to 3097 (cab)

Fuel Type: Diesel

Image Gallery

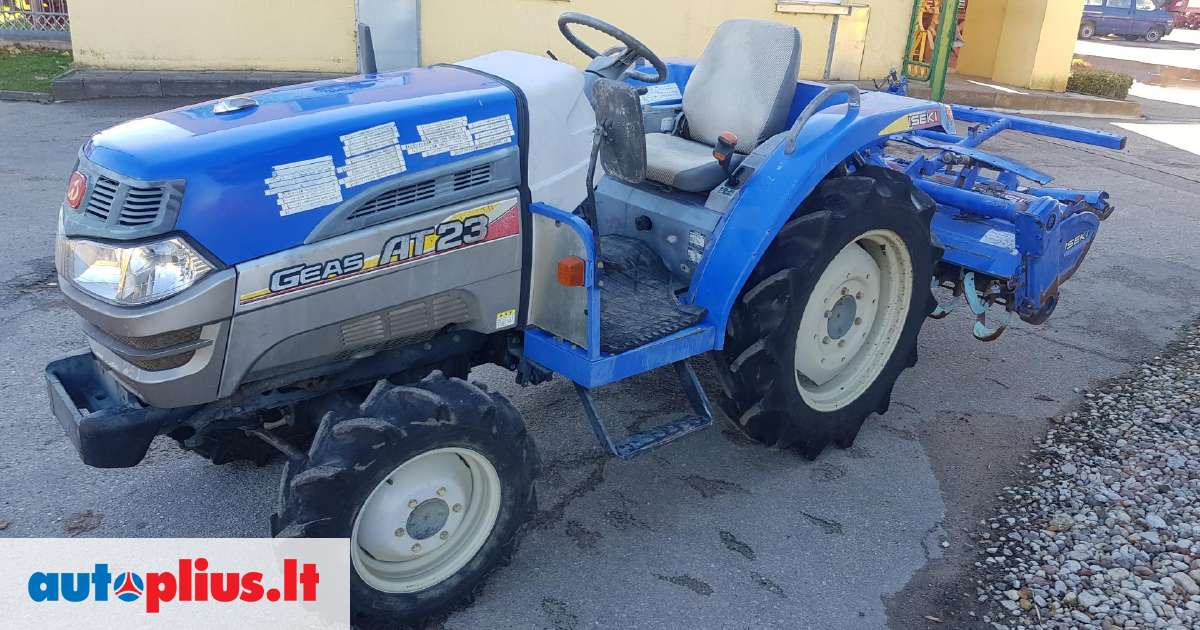

Iseki AT23 Tractor

Iseki AT23 vs. Similar Tractors

Power Output

Below Average

Greater than 13% of similar tractors.

Operating Weight

Above Average

Greater than 84% of similar tractors.

Technical Specifications

Engine

Manufacturer: Iseki
Model: E3CD
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Natural
Cylinders: 3
Displacement (ci): 91.4
Bore (in): 3.425
Stroke (in): 3.31
Rated RPM: 2500
Power Output (hp): 22.7

Transmission

Type: -
Forward Gears: 16
Reverse Gears: 16
Total Gears: 32

Dimensions

Length (in): 118.5
Width (in): 49.8
Height (in): 77.8 (Height is the same for both ROPS and cab, which may indicate the measurement is to the top of either structure)
Operating Weight (lb): 2844 (ROPS) to 3097 (cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): 24
Rear Tire Width (in): 9.5
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag)
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Unknown (Both ROPS and cab are options, but not specified which is standard)
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
