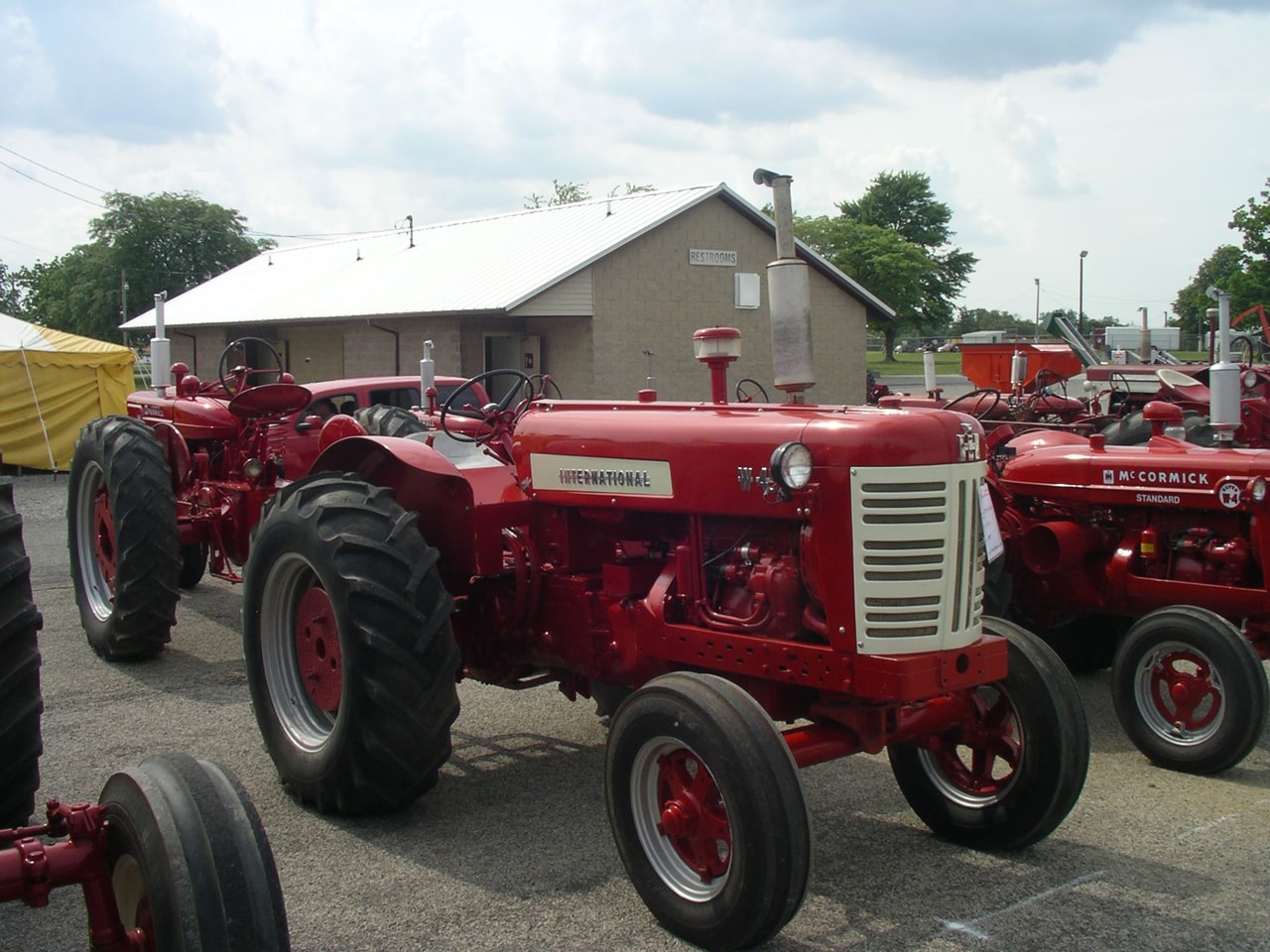

International Harvester W-450

Last Updated: June 2024

Overview

The International Harvester W-450 is a standard-tread tractor designed for a variety of agricultural tasks. This model features a 4x2 2WD chassis and is equipped with a two-speed power shift transmission that includes 10 forward gears and 2 reverse gears. It was powered by an International Harvester 4-cylinder engine with a displacement of 281 cubic inches, which was available in gasoline, diesel, and LP gas variants to suit various operational requirements. This engine operated at a rated RPM of 1450. Despite its versatility in fuel types, specific power output details are not available. The tractor is designed to be robust, with an operating weight of 5720 lbs and dimensions measuring 130 inches in length, 84 inches in width, and 95 inches in height. The W-450's tires come in ag configuration, with the front listed as 6.00-16 and the rear as 15.5-38. Further details regarding the tractor's hitch capabilities, hydraulic system, PTO speeds, brakes, and other advanced features remain unspecified. This model reflects the durability and multipurpose design that International Harvester is known for in the agricultural industry.
Show more...

Key Specifications

Category: Utility, Standard Tread

Transmission: Two-speed power shift

Drive Type: 2WD

Operating Weight: 5720

Fuel Type: Multipurpose (Gasoline, Diesel, LP gas)

International Harvester W-450 vs. Similar Tractors

Operating Weight
Average
Greater than 47% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Multipurpose (Gasoline, Diesel, LP gas)
Induction Type
-
Cylinders
4
Displacement (ci)
281
Bore (in)
4.125
Stroke (in)
5.25
Rated RPM
1450
Power Output (hp)
-

Transmission

Type
Two-speed power shift
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
130
Width (in)
84
Height (in)
95
Operating Weight (lb)
5720

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
28
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter (6 volts and 12 volts versions available)
Brake Type
-
Hydraulic System Type
-
