International Harvester Titan 30-60

Last Updated: September 2024

Overview

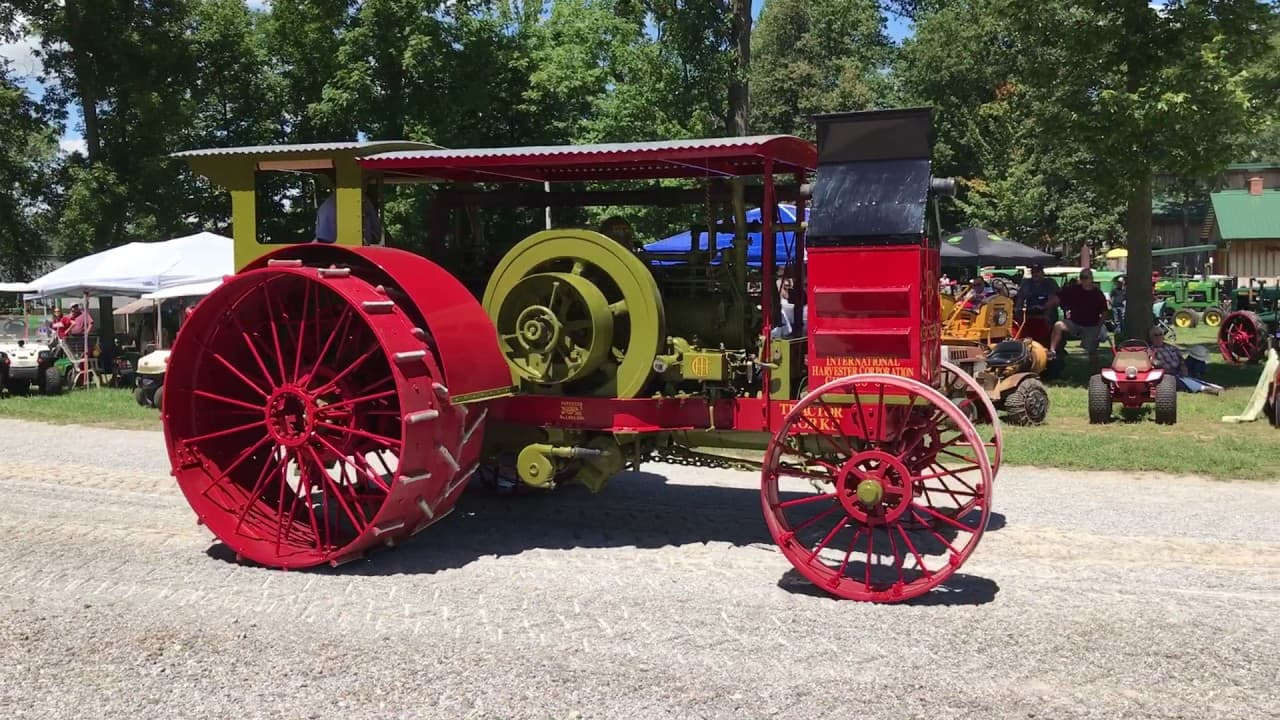

The International Harvester Titan 30-60 is a big, powerful utility tractor from the early days of farming machines. It's a 2WD tractor with a manual steering system and a simple gear transmission that has one forward and one reverse gear. This tractor is built tough, weighing a hefty 20,600 pounds.

The Titan 30-60 has a unique engine setup. It uses a very large 1,781 ci liquid-cooled engine that runs on kerosene. This engine has two cylinders laid out horizontally, which was common for tractors of its time. The engine runs at a slow 335 rpm, which is much lower than most modern tractors. One interesting feature is its compressed air starter, instead of an electric one. The tractor rides on steel wheels, with big 72-inch diameter rear wheels that help it grip the soil. It's a large machine, measuring 192 inches long, 105 inches wide, and 110 inches tall.
Show more...

Key Specifications

Category: Utility

Transmission: Gear

Drive Type: 2WD

Operating Weight: 20600 lb (9344 kg)

Fuel Type: Kerosene

International Harvester Titan 30-60 vs. Similar Tractors

Operating Weight

The Operating Weight for the International Harvester Titan 30-60 is Excellent. It is greater than 95% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the International Harvester Titan 30-60 is Excellent. It is greater than 100% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the International Harvester Titan 30-60 is Poor. It is greater than 0% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
International Harvester
Cooling Type
Liquid-cooled
Cylinder Orientation
Horizontal
Fuel Type
Kerosene
Induction Type
Naturally aspirated
Cylinders
2
Displacement
1781 ci (29.2 L)
Bore
9.00 in (228.6 mm)
Stroke
14.00 in (355.6 mm)
Rated RPM
335

Transmission

Type
Gear
Forward Gears
1
Reverse Gears
1

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
