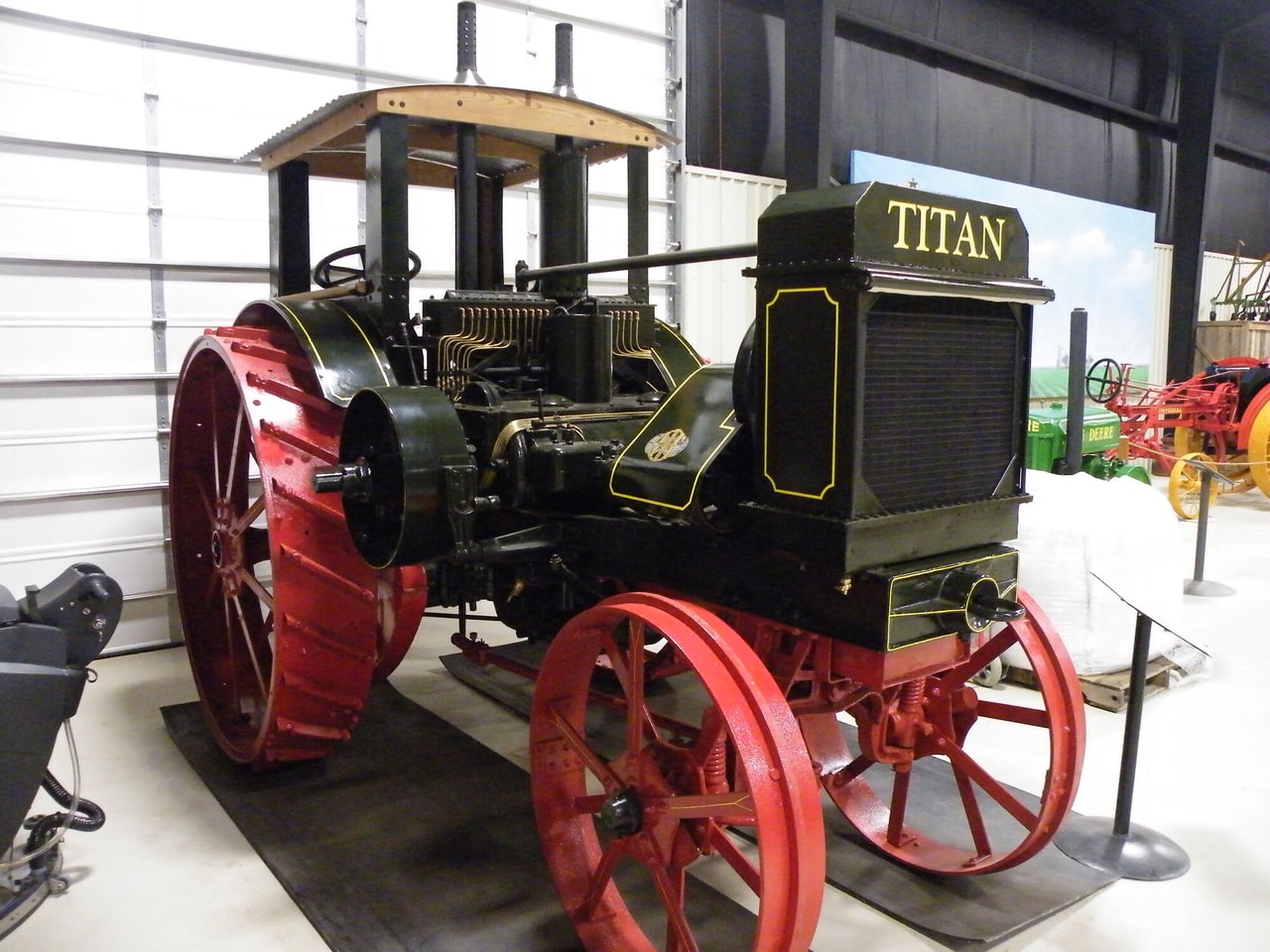

International Harvester Titan 12-25

Last Updated: June 2024

Overview

The International Harvester Titan 12-25 is a standard-tread tractor known for its robust structure and simple engineering. With its 4x2 chassis configuration and 2WD, this tractor would have been typical of its era, offering basic utility on the farm with a heavy emphasis on durability. It features a large engine for its time, with a displacement of 692.7 cubic inches, generating power at a lower rated RPM of 575, characteristic of the large, slow-moving engines of early tractors. While the exact horsepower is not documented, it would have been adequate for most farming tasks in the era of its production. The tractor operates on kerosene, which was common in early 20th-century tractors before diesel became the standard for agricultural equipment. With large steel tires sized at 40x7 inches in the front and 60x14 inches in the rear, it would have provided a stable working platform for a variety of applications. This Titan 12-25's substantial presence is complemented by its weight of 9580 pounds, ensuring solid traction and stability. This model's dimensions and operational specifications indicate that it was likely designed to handle moderate to heavy farm work, such as plowing, cultivating, and hauling.
Show more...

Key Specifications

Category: Utility, Standard Tread

Transmission: Gear

Drive Type: 2WD

Operating Weight: 9580

Fuel Type: Kerosene

International Harvester Titan 12-25 vs. Similar Tractors

Operating Weight
Average
Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Kerosene
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
692.7
Bore (in)
5.25
Stroke (in)
8
Rated RPM
575
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
2
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
140.5
Width (in)
85.5
Height (in)
115
Operating Weight (lb)
9580

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
40
Front Tire Width (in)
7
Rear Tire Diameter (in)
60
Rear Tire Width (in)
14
Front/Rear Rim Diameter (in)
-
Tire Type
Steel
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
