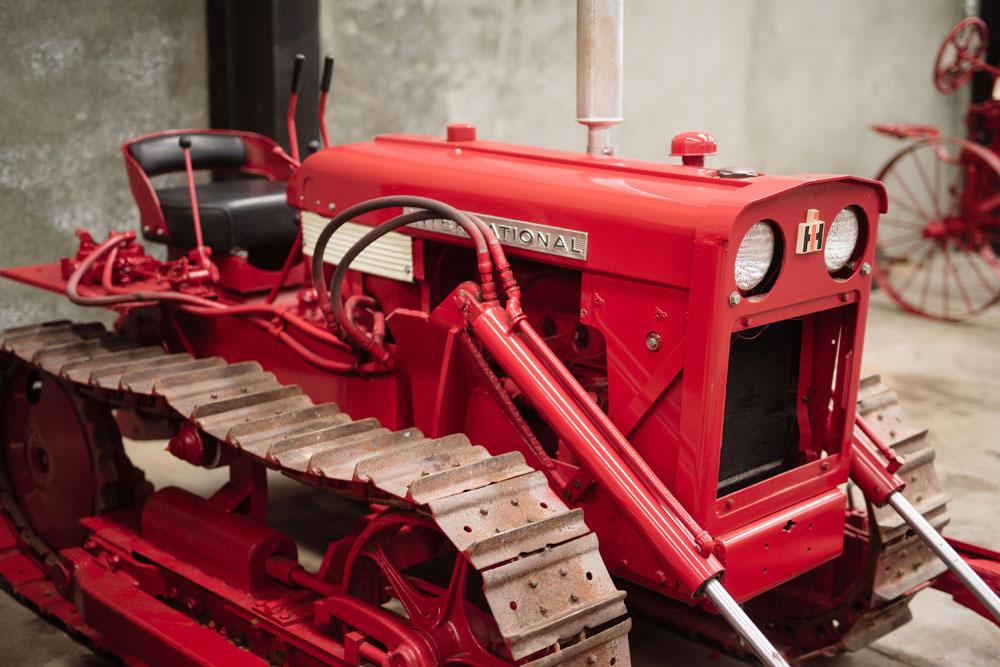

International Harvester T-340

Last Updated: June 2024

Overview

The International Harvester T-340 is a crawler tractor that was produced from 1959 to 1965. It was designed for agricultural work and features a four-cylinder gasoline engine with a displacement of 134.8 cubic inches, generating 45 horsepower at 2000 rpm in gross terms. The T-340 operates on a crawler chassis system with an available Torque Amplifier implementing a two-speed power shift transmission, which allows for 10 forward gears and 2 reverse gears, offering enhanced flexibility and power on-demand for various field operations. This tractor was known for its robust build and the ability to tackle tough terrain due to its tracked design.
Show more...

Key Specifications

Category: Crawler

Power Output: 45 (gross)

Transmission: Gear with optional two-speed power shift (Torque Amplifier) and shuttle

Drive Type: Track

Operating Weight: 5750

Fuel Type: Gasoline

International Harvester T-340 vs. Similar Tractors

Power Output
Below Average
Greater than 23% of similar tractors.
Operating Weight
Average
Greater than 36% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
C-135
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
OHV (Overhead Valve)
Fuel Type
Gasoline
Induction Type
Natural aspirated
Cylinders
4
Displacement (ci)
134.8
Bore (in)
3.25
Stroke (in)
4.0625
Rated RPM
2000
Power Output (hp)
45 (gross)

Transmission

Type
Gear with optional two-speed power shift (Torque Amplifier) and shuttle
Forward Gears
10 (5 standard, 10 with Torque Amplifier)
Reverse Gears
2 (1 standard, 2 with Torque Amplifier)
Total Gears
-

Dimensions

Length (in)
125
Width (in)
58
Height (in)
58
Operating Weight (lb)
5750

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Crawler
Drive Type
Track
Steering Type
-
Coolant Capacity (qts)
68
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
1965
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
