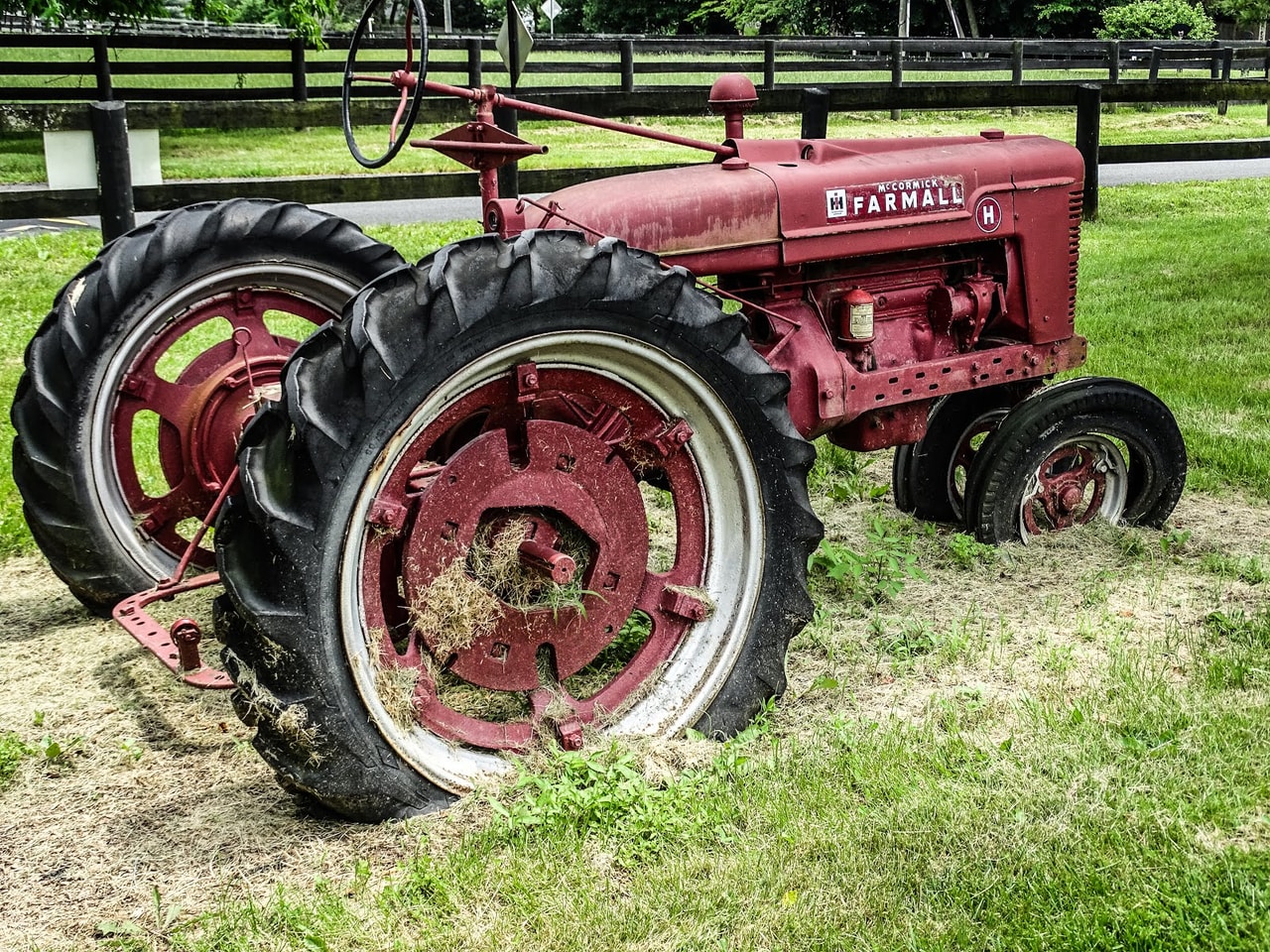

International Harvester Farmall

Last Updated: June 2024

Overview

The International Harvester Farmall is a classic row-crop tractor, emblematic of an era when tractors transitioned from workhorses of subsistence farms to becoming essential assets in commercial agriculture. Characterized by its 4x2 two-wheel-drive chassis, the Farmall is equipped with a manual steering system enhanced by automatic engagement of turning brakes, offering manageable handling for its time. At its heart lies a gasoline-powered International Harvester 4-cylinder engine, which is kept cool via a liquid cooling system, has a displacement of 220.9 cubic inches, and operates at a rated RPM of 1200. The tractor's transmission offers a simple 3 forward and 1 reverse gear selection. Capable of running on standard or lawn/turf steel wheels, it adapts to various farm operations. The direct reliance on physical prowess is evident in the hand-crank starter system, a feature that calls back to its vintage status. The Farmall maintains a weight of 4,000 lbs and dimensions that present a significant yet manageable presence in the field. While some specifics like horsepower and hydraulic system type are missing, the Farmall's legacy in the agricultural sector is undeniable.
Show more...

Key Specifications

Category: Row Crop

Drive Type: 2WD

Operating Weight: 4,000

Fuel Type: Gasoline

International Harvester Farmall vs. Similar Tractors

Operating Weight
Poor
Greater than 1% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
-
Cylinders
4
Displacement (ci)
220.9
Bore (in)
3.75
Stroke (in)
5
Rated RPM
1200
Power Output (hp)
-

Transmission

Type
-
Forward Gears
3
Reverse Gears
1
Total Gears
4

Dimensions

Length (in)
136
Width (in)
86
Height (in)
67
Operating Weight (lb)
4,000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
36
Front Tire Diameter (in)
25 (Standard) / 25 (Lawn/turf)
Front Tire Width (in)
4 (Standard) / 8 (Lawn/turf)
Rear Tire Diameter (in)
40 (Standard) / 40 (Lawn/turf)
Rear Tire Width (in)
6 (Standard) / 16 (Lawn/turf)
Front/Rear Rim Diameter (in)
-
Tire Type
Steel
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Hand Crank
Brake Type
-
Hydraulic System Type
-
