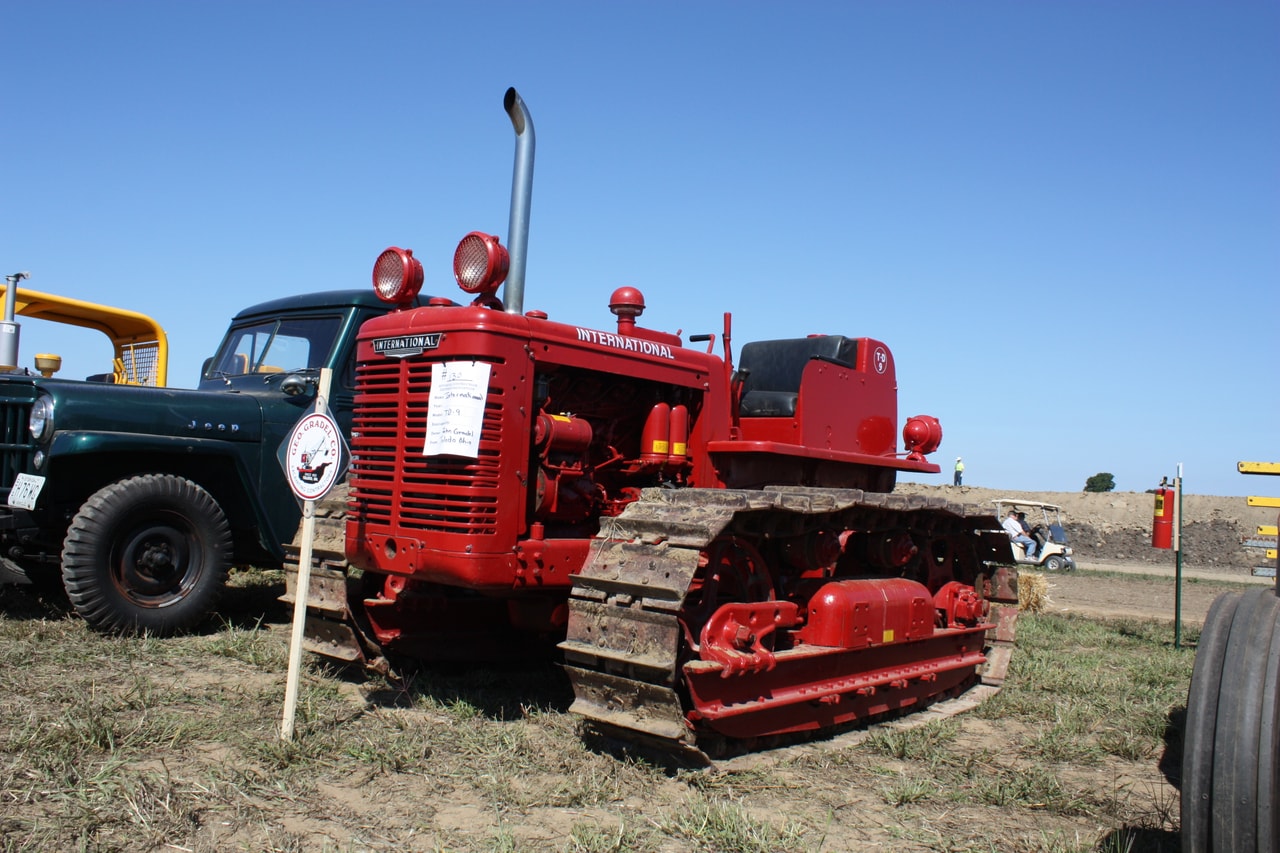

International Harvester D-324

Last Updated: June 2024

Overview

The International Harvester D-324 is a utility tractor that was built with a practical design in mind. Its chassis setup is a simple 4x2 2WD, making it suitable for a variety of tasks on a farm or a large garden. Steering is manual, which reflects the tractor's age and design as a more hands-on piece of machinery. The transmission is a partial power shift, with 8 forward gears and 2 reverse gears that provide ample range for different speed requirements. The International Harvester DD-111 diesel engine has 3 cylinders and a displacement of 111.4 cubic inches, giving it a modest 24 horsepower. It operates at a rated RPM of 1900, implying that it was designed for moderate-duty tasks rather than the most demanding agricultural jobs. This model rides on ‘agricultural’ type tires, common for the period, with a slimmer front at 4.50x16 and a chunkier rear at 8.00x32. The tractor's length is 108 inches, and it has an operational weight of 2900 lbs. This model of tractor is ideal for those who have general farming needs and prefer classic machinery.
Show more...

Key Specifications

Category: Utility

Power Output: 24

Transmission: Partial Power Shift

Drive Type: 2WD

Operating Weight: 2900

Fuel Type: Diesel

International Harvester D-324 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Operating Weight
Below Average
Greater than 24% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
DD-111
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
111.4
Bore (in)
3.437
Stroke (in)
4
Rated RPM
1900
Power Output (hp)
24

Transmission

Type
Partial Power Shift
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
108
Width (in)
-
Height (in)
-
Operating Weight (lb)
2900

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
4.5
Rear Tire Diameter (in)
32
Rear Tire Width (in)
8
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
