International Harvester Cub Lo-Boy

Last Updated: September 2024

Overview

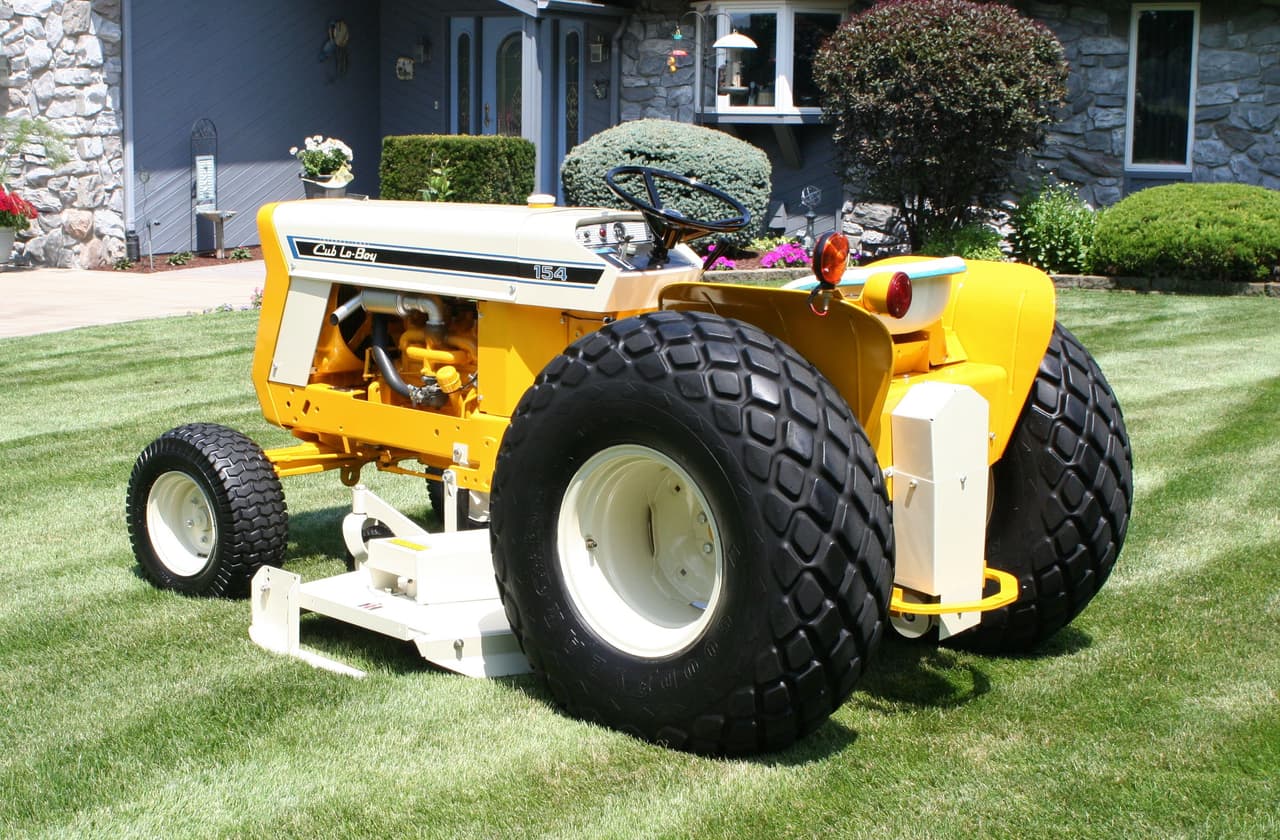

The International Harvester Cub Lo-Boy is a small utility tractor designed for light work on farms and gardens. It has a 2-wheel drive system and a manual steering setup, making it easy to handle in tight spaces. The tractor comes with a 3-speed forward and 1-speed reverse transmission, allowing for different working speeds.

Under the hood, the Cub Lo-Boy features a 4-cylinder gasoline engine made by International Harvester. This engine is liquid-cooled and naturally aspirated, producing 13.4 horsepower at 1800 rpm. While the engine power is on the lower end compared to other tractors, it's suitable for the Cub Lo-Boy's size and intended use. The tractor is compact, measuring 92 inches long, 48.25 inches wide, and 56.25 inches high. It weighs 1620 pounds, which is relatively light for a tractor. This makes it ideal for tasks that require a nimble machine, like working between crop rows or in small gardens.
Show more...

Key Specifications

Category: Utility

Power Output: 13 hp (10.0 kW)

Transmission: Sliding gear

Drive Type: 2WD

Operating Weight: 1620 lb (735 kg)

Fuel Type: Gasoline

Technical Specifications

Engine

Manufacturer
International Harvester
Model
C60
Cooling Type
Liquid-cooled
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
4
Displacement
60 ci (1.0 L)
Bore
2.62 in (66.7 mm)
Stroke
2.75 in (69.8 mm)
Rated RPM
1800
Power Output
13 hp (10.0 kW)

Transmission

Type
Sliding gear
Forward Gears
3
Reverse Gears
1

Drivetrain

Chassis
4x2
Drive Type
2WD
Steering Type
Manual
