International Harvester Cub 184 Lo-Boy

Last Updated: June 2024

Overview

The International Harvester Cub 184 Lo-Boy is a compact utility tractor that was manufactured from 1977 to 1980. This 2WD tractor features a 59.5 cubic inch, four-cylinder gasoline engine that produces 18 horsepower at 2300 RPM. It is equipped with a simple unsynchronized gear transmission offering 3 forward gears and 1 reverse gear. The Cub 184 Lo-Boy is built with a manual steering system and mechanical drum brakes. The tractor presents a basic yet functional design, with an open operator station. It was designed as a versatile and maneuverable machine suitable for a variety of tasks in smaller farming operations or estates.
Show more...

Key Specifications

Category: Utility

Power Output: 18

Transmission: Unsynchronized Gear

Drive Type: 2WD

Operating Weight: 1620

Fuel Type: Gasoline

Image Gallery

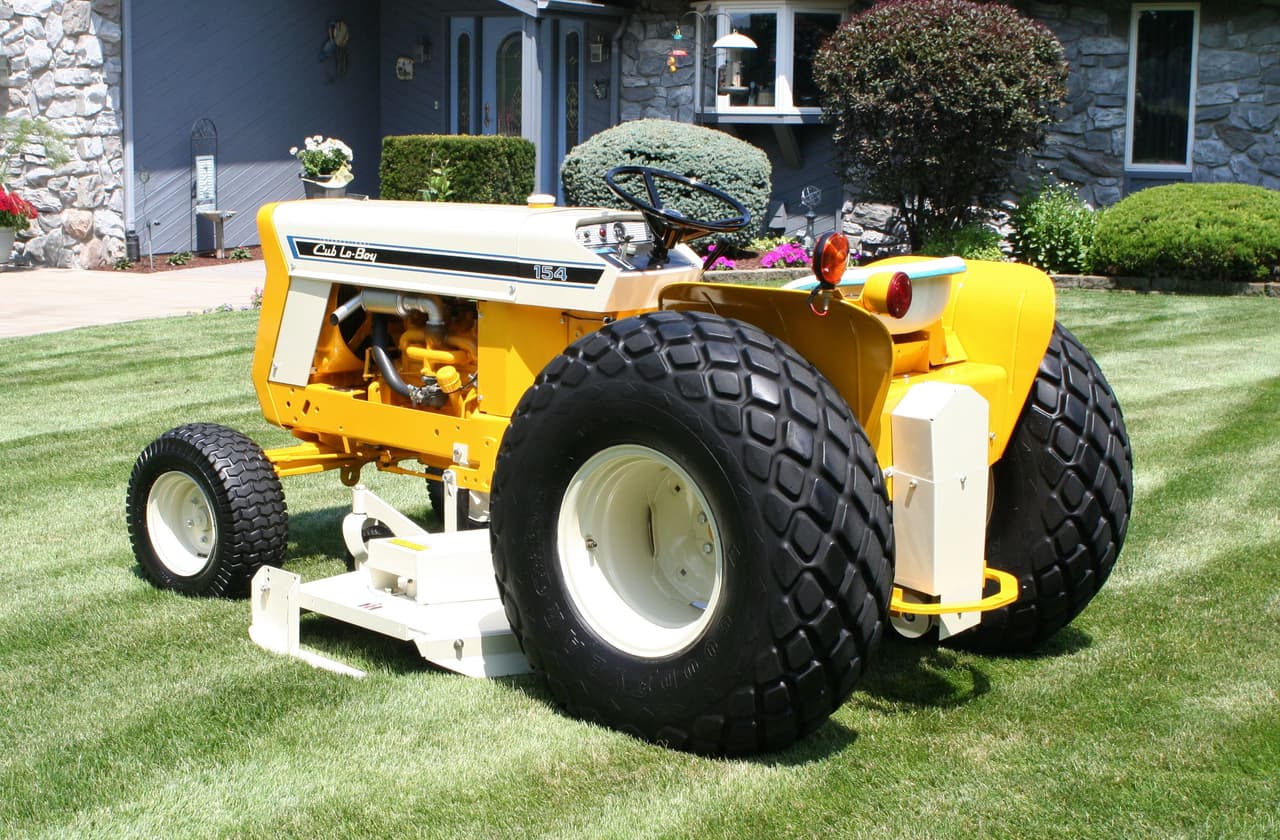

International Harvester Cub 184 Lo-Boy Tractor International Harvester Cub 184 Lo-Boy Tractor International Harvester Cub 184 Lo-Boy Tractor International Harvester Cub 184 Lo-Boy Tractor International Harvester Cub 184 Lo-Boy Tractor International Harvester Cub 184 Lo-Boy Tractor

International Harvester Cub 184 Lo-Boy vs. Similar Tractors

Power Output
Poor
Greater than 7% of similar tractors.
Operating Weight
Below Average
Greater than 13% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
C-60
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
59.5
Bore (in)
2.64
Stroke (in)
2.76
Rated RPM
2300
Power Output (hp)
18

Transmission

Type
Unsynchronized Gear
Forward Gears
3
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
93.7
Width (in)
52
Height (in)
48.8
Operating Weight (lb)
1620

Power Take-Off (PTO)

PTO Type
Independent with electro-magnetic clutch
PTO Speed 1 (rpm)
1600
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
9.7
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
1980
Hitch Type
-
Hitch Category
I (optional)
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
Mechanical drum
Hydraulic System Type
Gear pump
