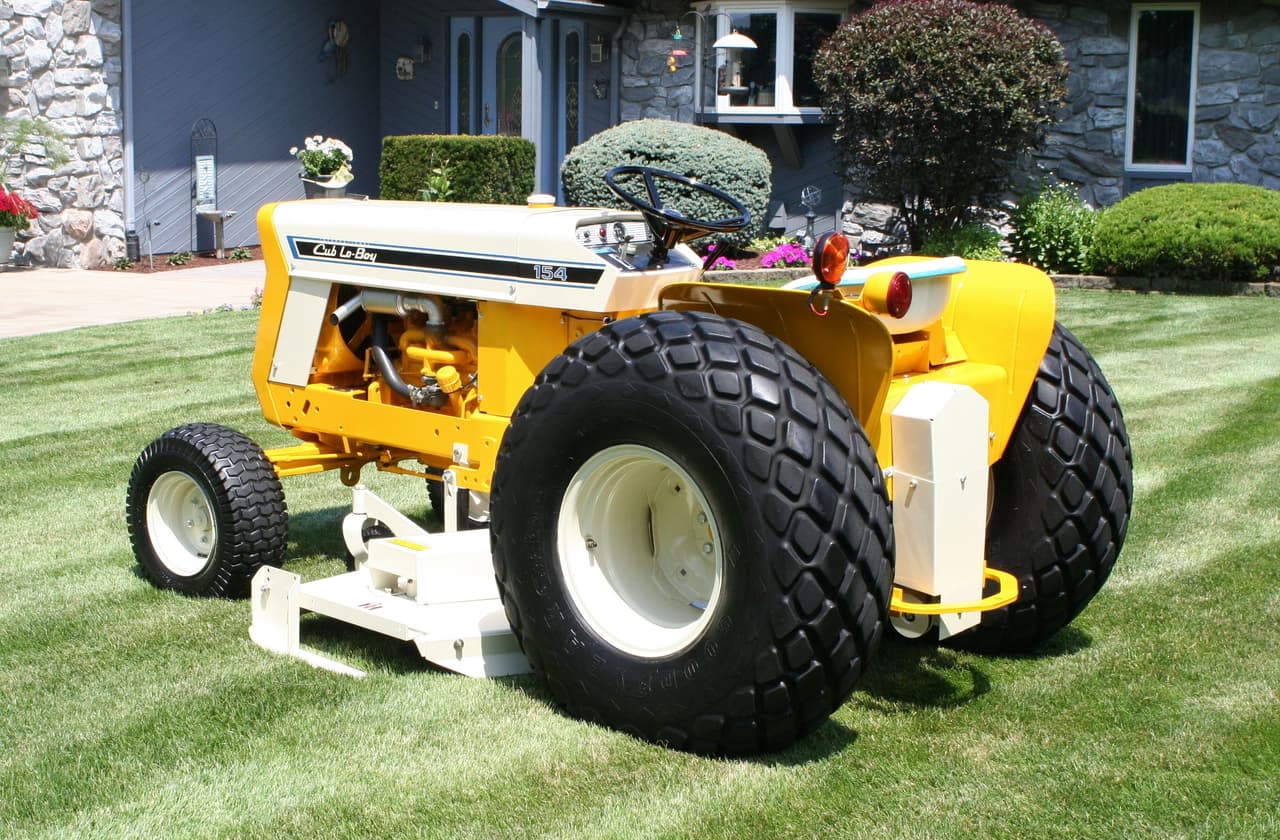

International Harvester Cub 154 Lo-Boy

Last Updated: September 2024

Overview

The International Harvester Cub 154 Lo-Boy is a small utility tractor made from 1968 to 1974. It's perfect for light farm work and gardening. This tractor has a 2-wheel drive system and a manual steering setup. It uses a simple gear transmission with 3 forward speeds and 1 reverse.

Under the hood, the Cub 154 Lo-Boy has a 4-cylinder gasoline engine made by International Harvester. The engine is liquid-cooled and naturally aspirated, meaning it doesn't use a turbocharger. It produces 14 horsepower, which is on the lower end for tractors. The tractor is compact, measuring about 94 inches long, 52 inches wide, and 49 inches tall. It weighs 1,477 pounds, making it lighter than most tractors. The Cub 154 Lo-Boy has a three-point hitch for attaching tools and an independent PTO (Power Take-Off) that spins at 1600 rpm. It also has a basic hydraulic system with a gear pump and an open operator station.
Show more...

Key Specifications

Category: Utility

Power Output: 14 hp (10.4 kW)

Transmission: Unsynchronized gear

Drive Type: 2WD

Operating Weight: 1477 lb (670 kg)

Fuel Type: Gasoline

International Harvester Cub 154 Lo-Boy vs. Similar Tractors

Power Output

The Power Output for the International Harvester Cub 154 Lo-Boy is Poor. It is greater than 2% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the International Harvester Cub 154 Lo-Boy is Poor. It is greater than 6% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the International Harvester Cub 154 Lo-Boy is Poor. It is greater than 5% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the International Harvester Cub 154 Lo-Boy is Below Average. It is greater than 28% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
International Harvester
Model
C60
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Fuel Type
Gasoline
Induction Type
Natural aspirated
Cylinders
4
Displacement
60 ci (1.0 L)
Bore
2.64 in (67.1 mm)
Stroke
2.76 in (70.1 mm)
Rated RPM
2200
Power Output
14 hp (10.4 kW)

Transmission

Type
Unsynchronized gear
Forward Gears
3
Reverse Gears
1

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Brake Type
Mechanical drum
