International Harvester Cub

Last Updated: June 2024

Overview

The International Harvester Cub is a classic tractor with a manual steering system and sliding gear transmission including 3 forward and 1 reverse gears. It features the International Harvester C60 four-cylinder gasoline engine, which is liquid thermosyphon cooled and has a displacement of 59.5 cubic inches. The engine operates at 1800 rated RPM and produces 13 horsepower. The Cub rides on front tires measuring 4.00 inches wide by 12 inches in diameter. The dimensions are 99.325 inches in length, 48.25 inches in width, and 62.75 inches in height. Early models weigh 1477 pounds without ballast. The tractor may optionally be equipped with an IH Fast Hitch and carries a 12-volt electric starter system.

Key Specifications

Power Output: 13

Transmission: Sliding gear

Operating Weight: 1477

Fuel Type: Gasoline

Image Gallery

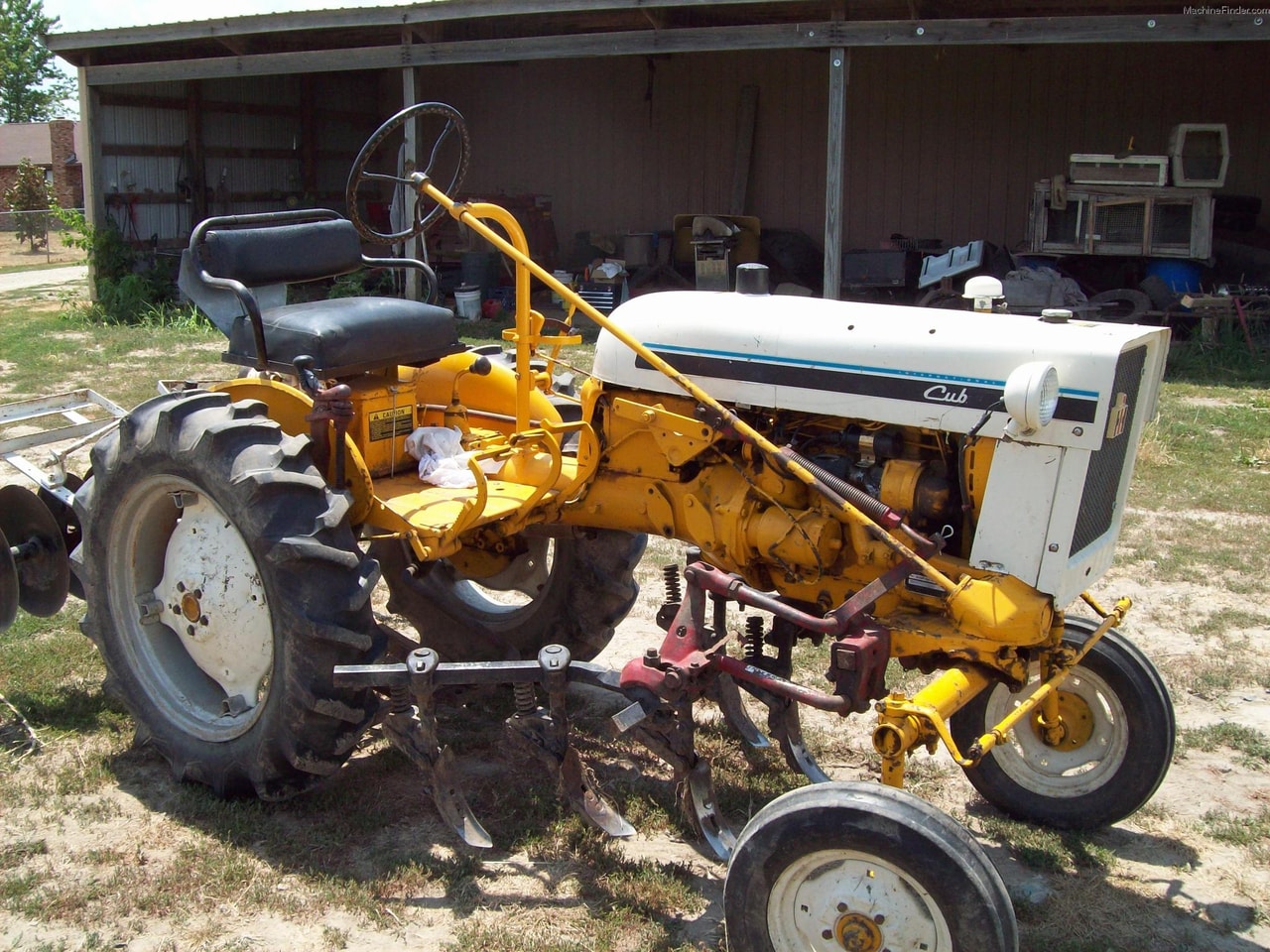

International Harvester Cub Tractor

Technical Specifications

Engine

Manufacturer: International Harvester
Model: C60
Cooling Type: Liquid thermosyphon
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 59.5
Bore (in): 2.625
Stroke (in): 2.75
Rated RPM: 1800
Power Output (hp): 13

Transmission

Type: Sliding gear
Forward Gears: 3
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 99.325
Width (in): 48.25
Height (in): 62.75
Operating Weight (lb): 1477

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Manual
Coolant Capacity (qts): 9.75
Front Tire Diameter (in): 12
Front Tire Width (in): 4
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: IH Fast Hitch (optional)
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 12 volt
Brake Type: -
Hydraulic System Type: -
