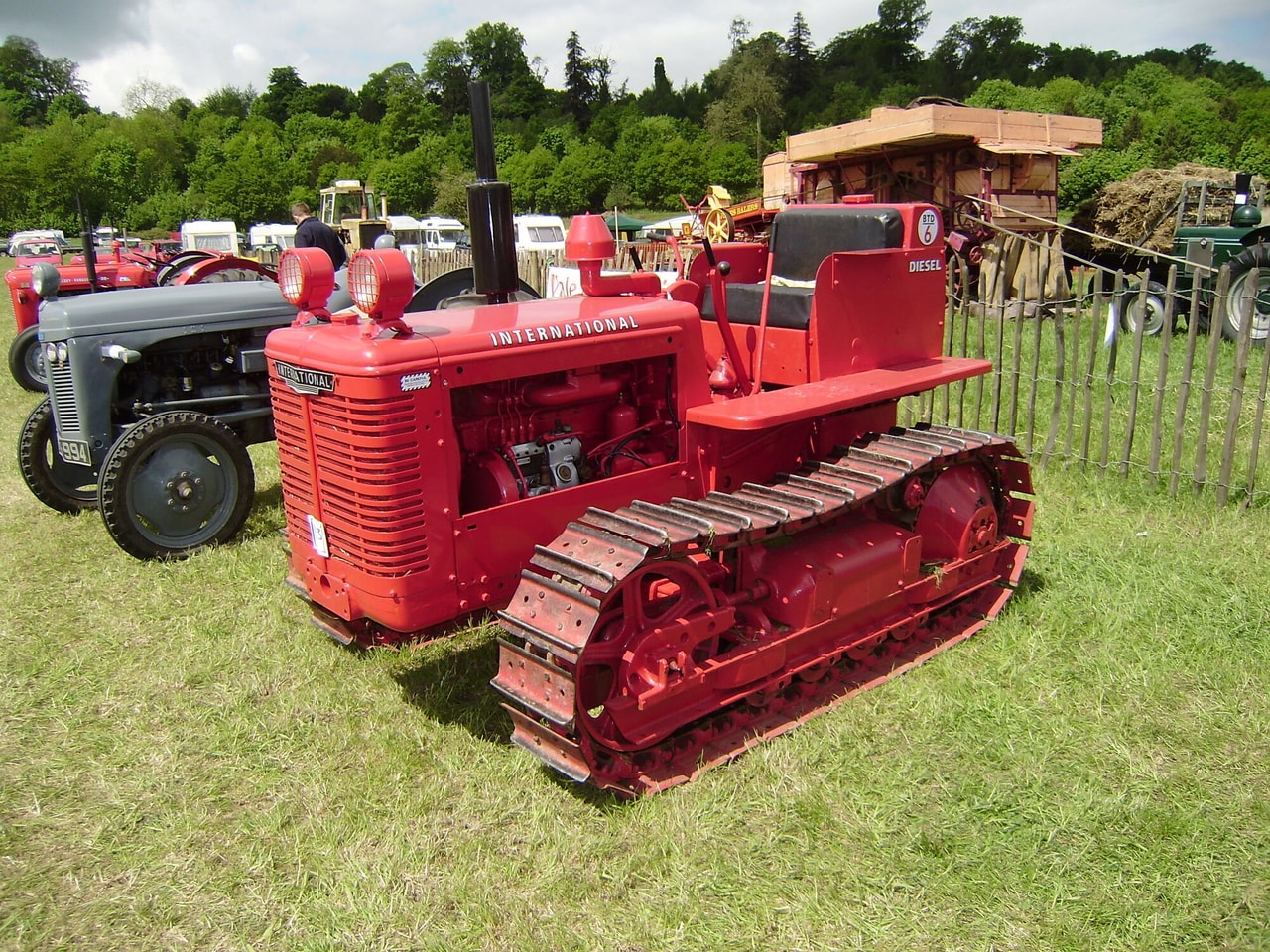

International Harvester BTD-6

Last Updated: June 2024

Overview

The International Harvester BTD-6 is an older model tractor engineered for robust performance. While the specific category and use are not specified, the tractor's construction and power output of 55 hp suggest it fits well into a utility role for various farming applications. Equipped with a liquid-cooled, 4-cylinder International Harvester BD-264 diesel engine, it features a displacement of 264 cubic inches and operates efficiently at a rated RPM of 1600. A gear-driven transmission with 5 forward and 1 reverse gear demonstrates traditional functionality. The BTD-6's dimensions and operating weight of 9100 lbs indicate a solidly built machine capable of significant duty on the farm. Without specifying the hitch type, its capacity for towing and lifting is undetermined. The inclusion of an electrical starter is aligned with tractors' technological advances of its era. This tractor's design places emphasis on durability and simplicity, adhering to International Harvester's reputation for building reliable farm equipment.
Show more...

Key Specifications

Power Output: 55

Transmission: Gear

Operating Weight: 9100

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
International Harvester
Model
BD-264
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
264
Bore (in)
4
Stroke (in)
5.25
Rated RPM
1600
Power Output (hp)
55

Transmission

Type
Gear
Forward Gears
5
Reverse Gears
1
Total Gears
6

Dimensions

Length (in)
104
Width (in)
64
Height (in)
60.25
Operating Weight (lb)
9100

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
45.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
