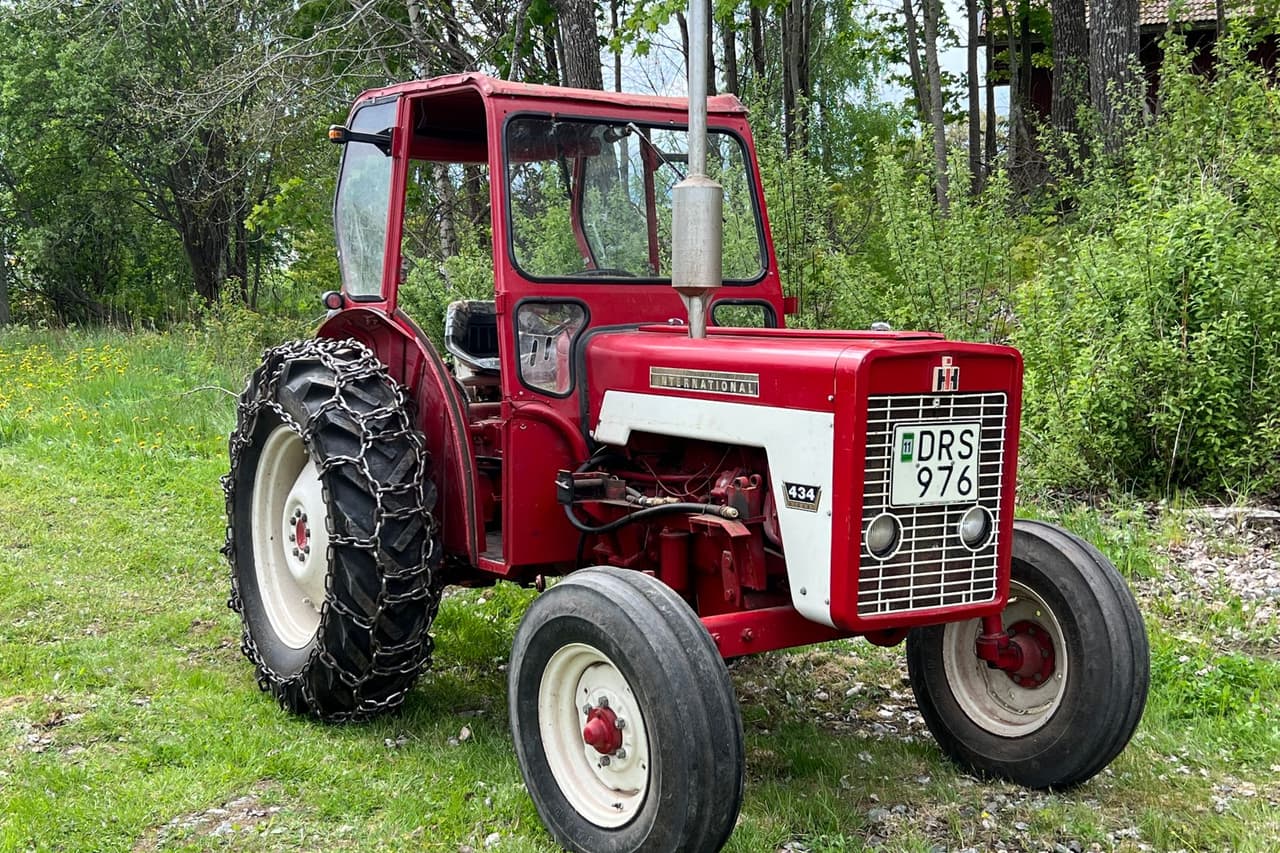

International Harvester B-434

Last Updated: June 2024

Overview

The International Harvester B-434 tractor is a reliable and classic choice for farming and utility work. It has a simple yet robust design, incorporating a 4x2 2WD chassis. Its International Harvester BD-154 diesel engine provides a power output of 43 hp with a displacement of 154 ci. The engine’s bore and stroke measurements are 3.50 inches and 4.00 inches respectively, and at a rated RPM of 2000, it can deliver impressive performance for various tasks. The transmission features 8 forward and 2 reverse gears, which are mechanically operated. Steering is also mechanical, offering a well-grounded and tactile response to the driver. While lacking in modern comforts, the B-434 exemplifies the durability and straightforward engineering that one expects from a tractor of its era.
Show more...

Key Specifications

Power Output: 43

Drive Type: 2WD

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
International Harvester
Model
BD-154
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
154
Bore (in)
3.5
Stroke (in)
4
Rated RPM
2000
Power Output (hp)
43

Transmission

Type
-
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Mechanical
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
