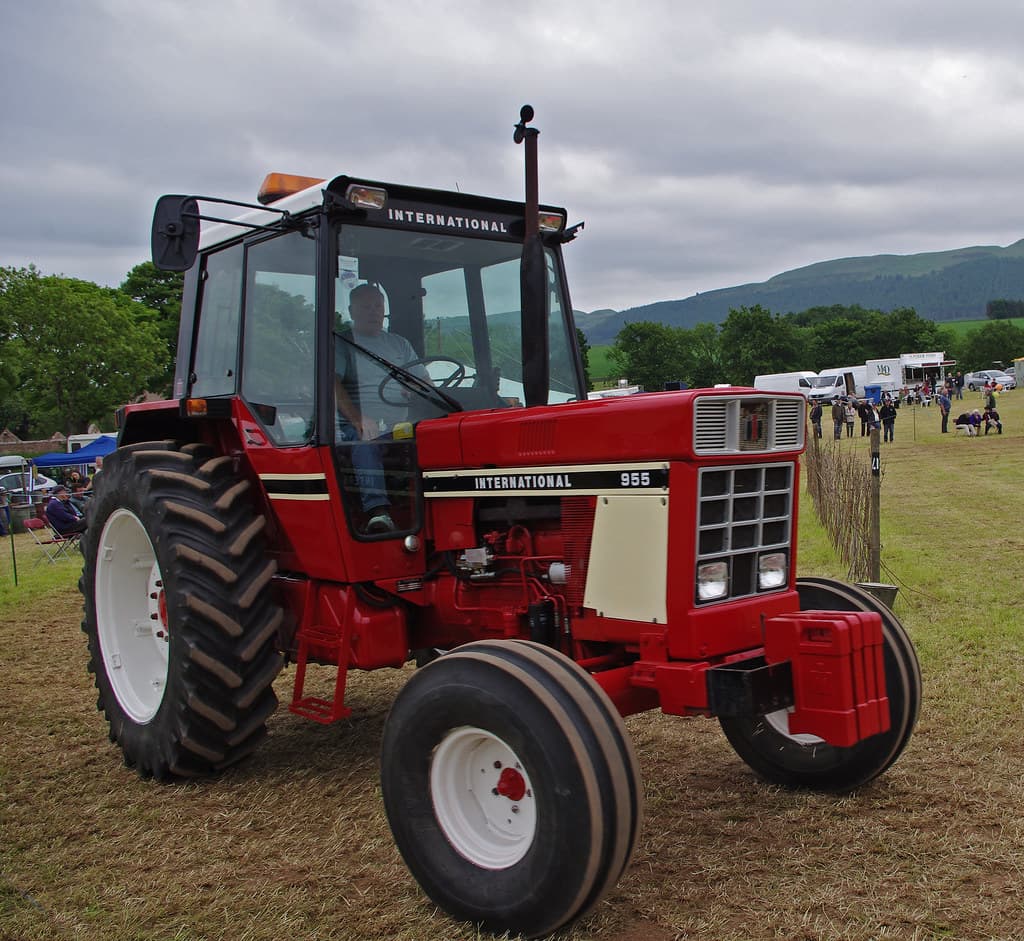

International Harvester 955

Last Updated: June 2024

Overview

The International Harvester 955 is a row-crop tractor, distinct with its 4x2 2WD chassis configuration. It was crafted during an era when International Harvester emphasized durability and performance. The 955 is powered by a robust diesel engine, with a displacement of 358 cubic inches, capable of outputting 90 horsepower. The tractor has a 16-speed manual transmission with 8 reverse gears, which provides a wide range of operating speeds suitable for various farming tasks. Its sturdy build is reflected in its 2WD version weight of 9459 pounds and a height of 109.1 inches. The tractor's dimensions, with a length of 167.7 inches and wheelbase of 103.5 inches, contribute to its stability and suitability for diverse crop farming operations. However, details such as the tractor's steering system, exact front and rear tire dimensions, and certain operational specifics like its PTO speeds and hydraulic system type remain unspecified in the available data.
Show more...

Key Specifications

Category: Row Crop

Power Output: 90

Transmission: Manual

Drive Type: 2WD

Operating Weight: 9459 (2WD)

Fuel Type: Diesel

International Harvester 955 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Operating Weight
Above Average
Greater than 84% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
358
Bore (in)
3.875
Stroke (in)
5.0625
Rated RPM
2200
Power Output (hp)
90

Transmission

Type
Manual
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
167.7
Width (in)
-
Height (in)
109.1
Operating Weight (lb)
9459 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
