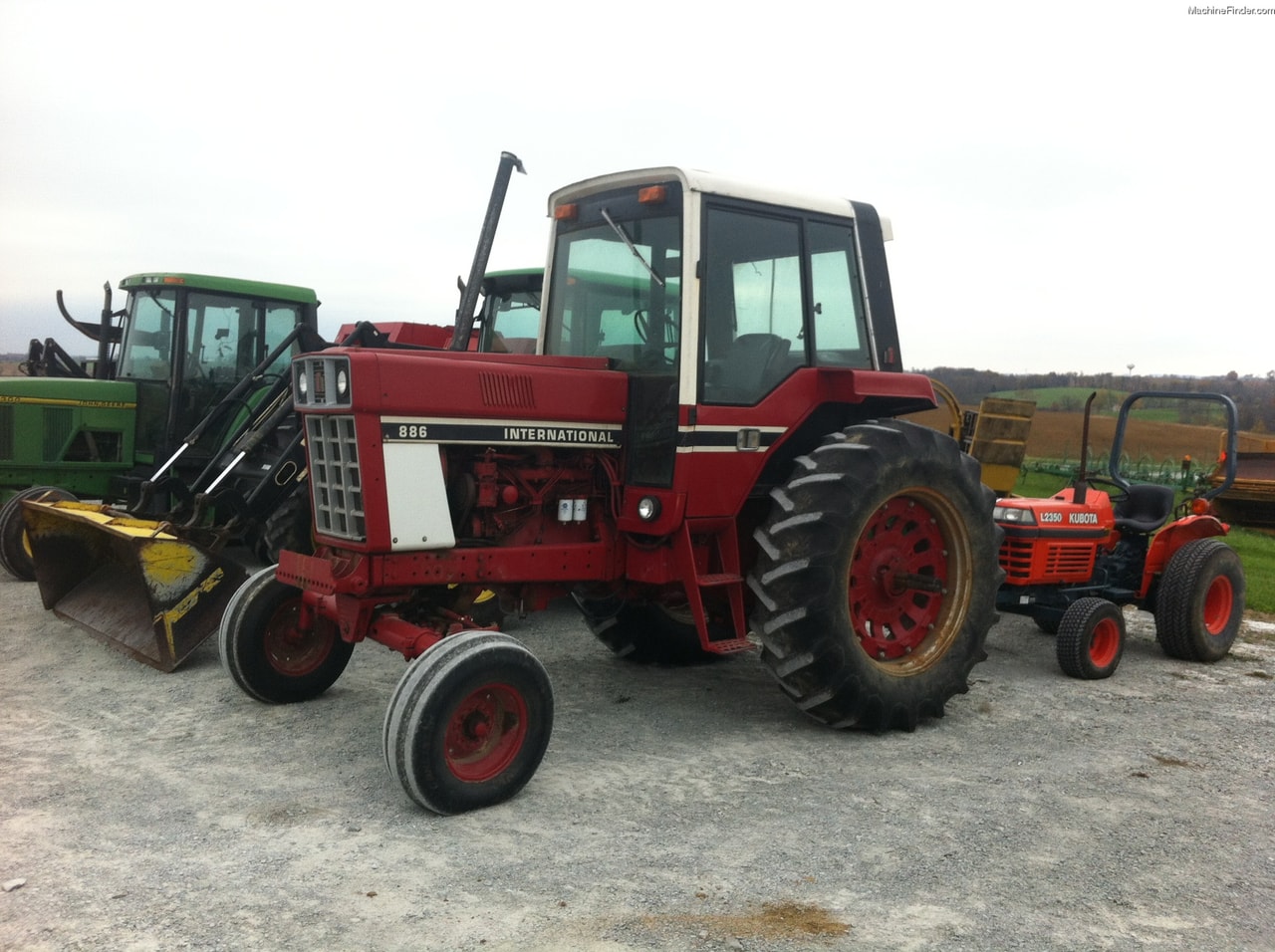

International Harvester 886B

Last Updated: June 2024

Overview

The International Harvester 886B represents a mixture of power and practicality designed for a range of agricultural tasks. With its International Harvester D-358 engine, it provides a solid 121 horsepower output and features a liquid-cooled diesel engine, ensuring reliable performance and durability under various working conditions. The efficient direct injection system, in combination with a substantial displacement of 358 cubic inches, allows for a maximum rated RPM of 2500 and a torque output of 258.2 lb-ft at 1600 RPM. It's equipped with a two-speed power shift transmission by International Harvester, with 16 forward and 8 reverse gears allowing for flexibility in task management across different terrains. Standard agricultural tires size front 11.00-16 and rear 23.1-34 ensure good traction and stability. Measuring 159.8 inches in length and 101.6 inches in width, the International Harvester 886B has a notable footprint and is defined by its significant operating weight of 12059 pounds. A Category III three-point hitch at the rear end underscores its utility in handling various implements. The substantial ground clearance of 21 inches facilitates operations on uneven ground. Moreover, an electric starting system ensures reliable ignition under diverse conditions. Overall, the 886B is well-suited for farmers and contractors seeking a capable workhorse for an assortment of agricultural tasks.
Show more...

Key Specifications

Power Output: 121

Transmission: Two-speed power shift

Operating Weight: 12059

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D-358
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
6
Displacement (ci)
358
Bore (in)
3.875
Stroke (in)
5.0625
Rated RPM
2500
Power Output (hp)
121

Transmission

Type
Two-speed power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
159.8
Width (in)
101.6
Height (in)
-
Operating Weight (lb)
12059

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
-
Rear Tire Diameter (in)
34
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category III
Hitch Category
3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
