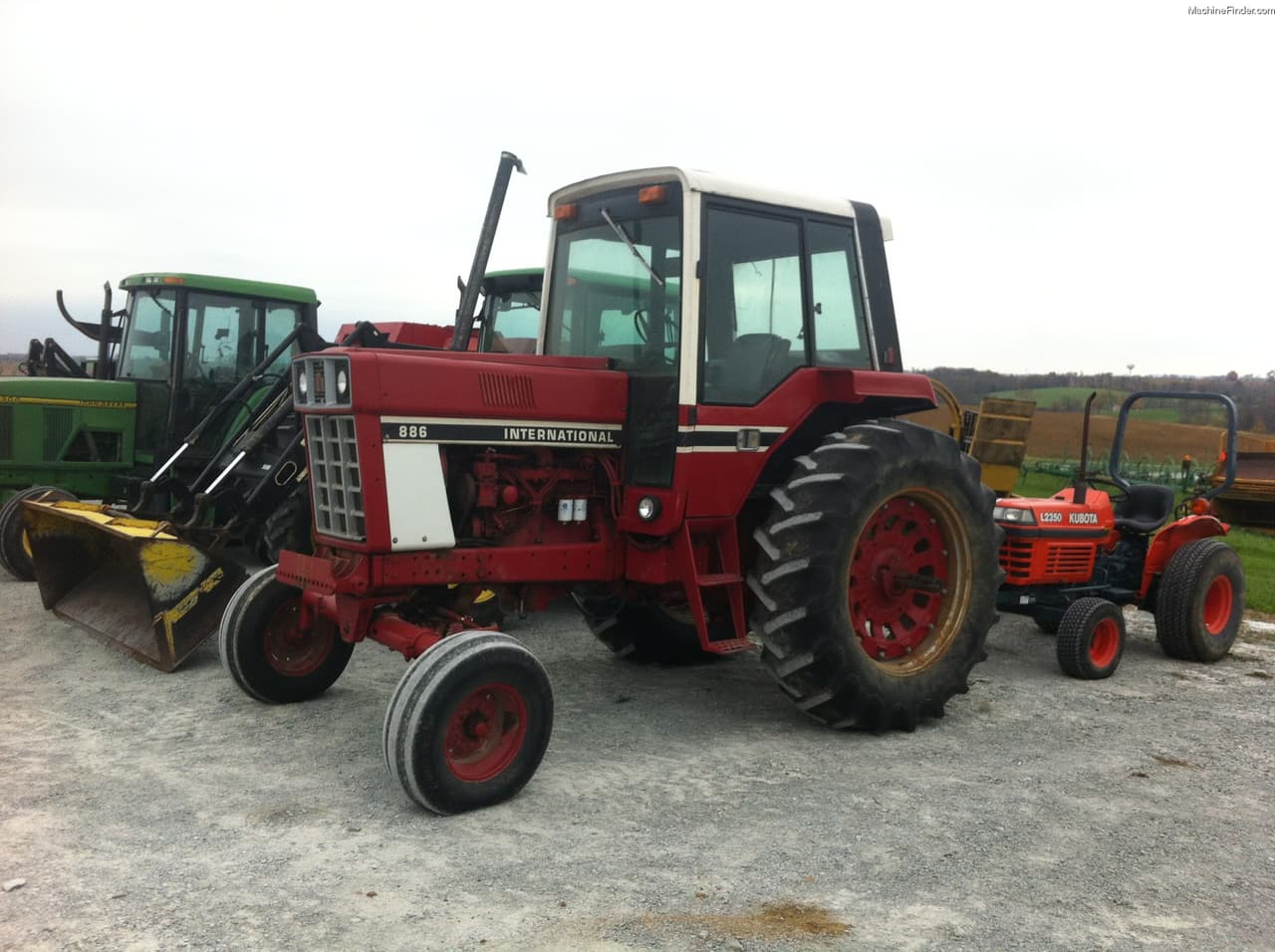

International Harvester 886

Last Updated: June 2024

Overview

The International Harvester 886 is a row-crop tractor that was offered in both 2WD or 4WD, depending on the specification and manufacture time frame. It boasts power assist steering, hydraulic wet disc brakes, and a choice between an open operator station or an optional cab for operator comfort. With weight specifications coming in at 11,000 lbs and dimensions of 165 inches in length, 102 inches in width, and a cab height of 111.8 inches, this tractor presents a robust structure for farming tasks. With a fuel tank capacity substantial enough to house 50 US gallons (41.6 Imperial gallons), it provides for considerable working stretches before refueling. Both the engine models, D-360 and D-358, are six-cylinder diesel engines and, along with a partial powershift transmission boasting 16 forward and 8 reverse gears, promise efficient field performance. Manufactured from 1976 to 1981 in Rock Island, Illinois by International Harvester, the 886 model included standard hydraulic and PTO capabilities, reflecting its suitability for various agricultural tasks.
Show more...

Key Specifications

Category: Row Crop

Transmission: Partial power shift

Operating Weight: 11,000

Fuel Type: Diesel

International Harvester 886 vs. Similar Tractors

Operating Weight
Poor
Greater than 4% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D-360 or D-358 (Serial number dependent)
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
6
Displacement (ci)
360 or 358 (Serial number dependent)
Bore (in)
3.875
Stroke (in)
5.085 or 5.0625 (Serial number dependent)
Rated RPM
2400
Power Output (hp)
-

Transmission

Type
Partial power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
165
Width (in)
102
Height (in)
111.8 (Cab configuration)
Operating Weight (lb)
11,000

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1,000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Power assist
Coolant Capacity (qts)
24
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1981
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open operator station or Cab (optional)
Starter Type
Electric
Brake Type
Hydraulic wet disc
Hydraulic System Type
Open center
