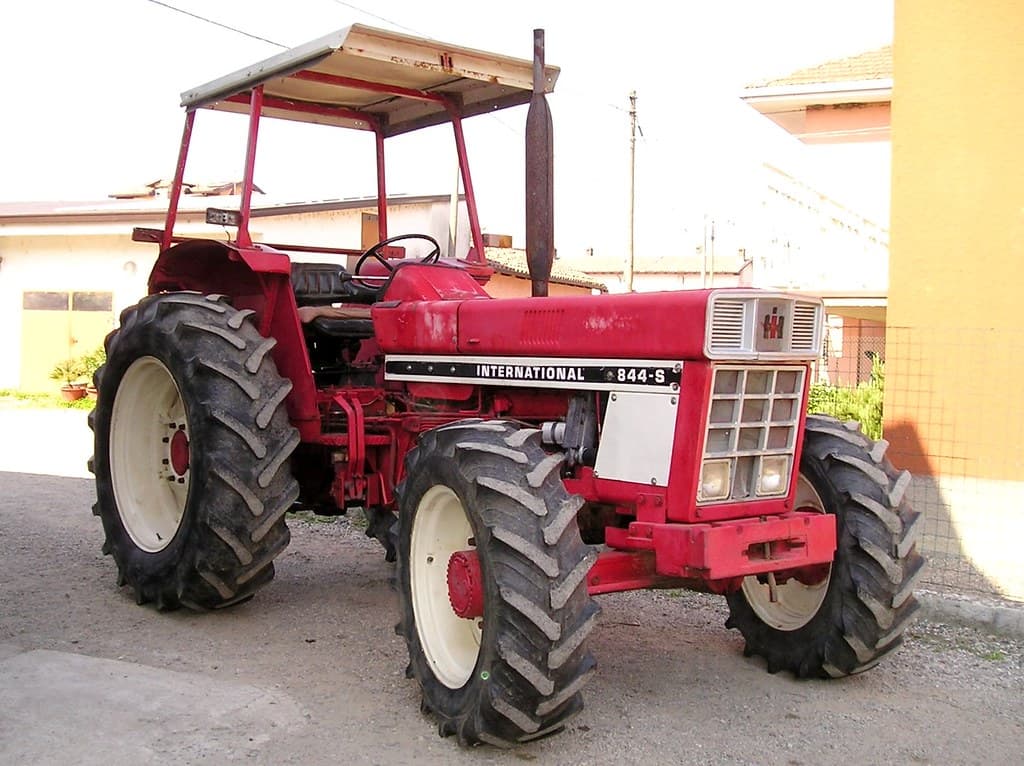

International Harvester 844

Last Updated: June 2024

Overview

The International Harvester 844 is a tractor designed for a variety of agricultural tasks. It features a robust diesel engine, the International Harvester D-246, which offers a displacement of 246 cubic inches and produces 73.8 horsepower at a rated RPM of 2300. The tractor's engine is liquid-cooled, ensuring stable operation under various conditions. With its partial power shift transmission, the 844 model provides significant flexibility in operation, boasting 16 forward and 8 reverse gears, which allow for an adaptable response to differing farm tasks. The tractor's weight of 6305 pounds and dimensions, with a length of 154.6 inches and a width of 80.3 inches, give it a sturdy presence and good balance for pulling and lifting duties. The tractor rides on standard agricultural tires and features a three-point hitch (Category II), widely used for attaching a range of implements. Owners of the International Harvester 844 can expect a durable machine with straightforward maintenance and a layout that favors ease of use in a variety of farming applications.
Show more...

Key Specifications

Power Output: 73.8

Transmission: partial power shift

Operating Weight: 6305

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D-246
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
-
Cylinders
4
Displacement (ci)
246
Bore (in)
3.937
Stroke (in)
5.06
Rated RPM
2300
Power Output (hp)
73.8

Transmission

Type
partial power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
154.6
Width (in)
80.3
Height (in)
71.9 (steering wheel)
Operating Weight (lb)
6305

Power Take-Off (PTO)

PTO Type
540 (Rear PTO Type)
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
20.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 2
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter (12 volts)
Brake Type
-
Hydraulic System Type
-
